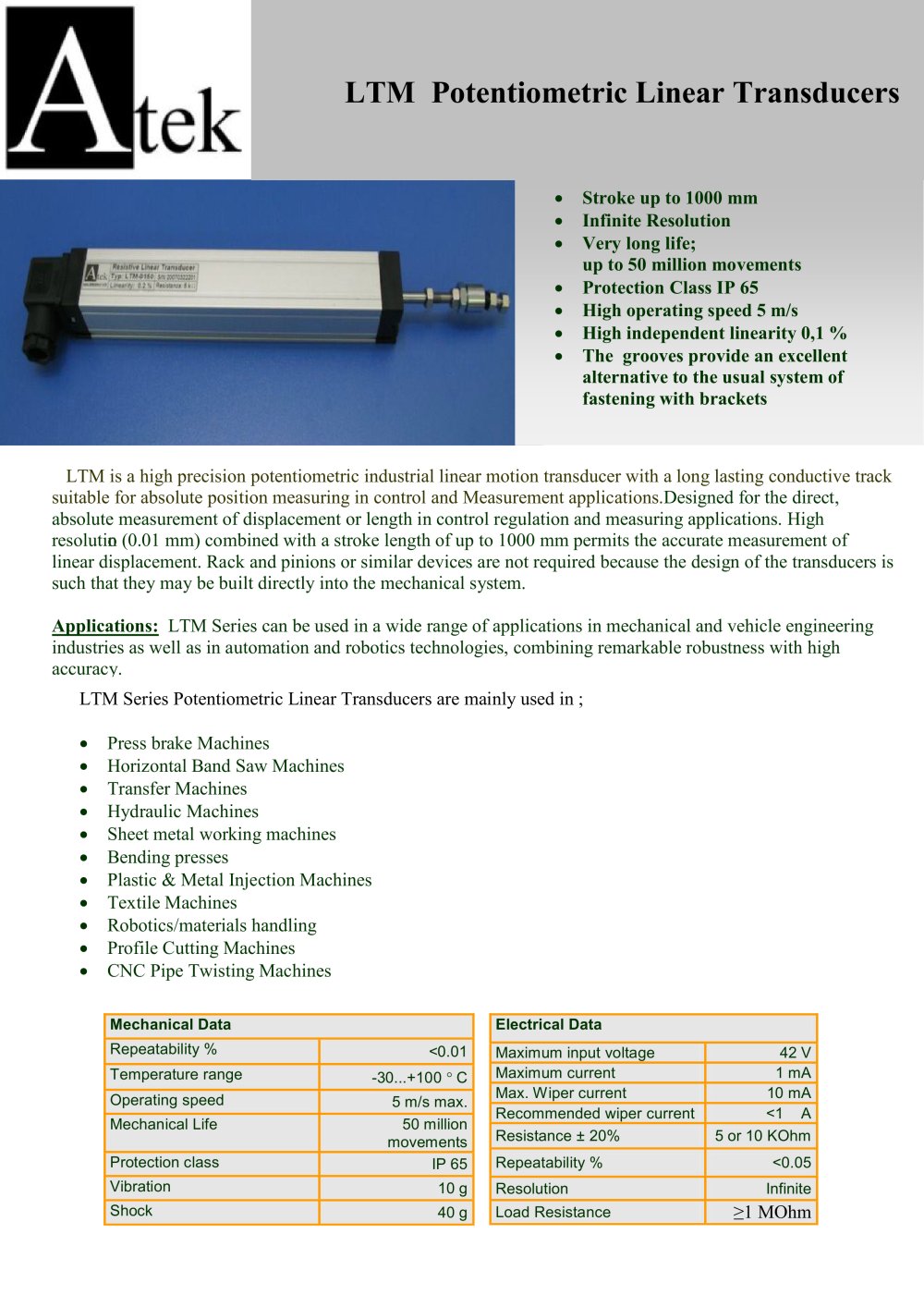

| LTM Potentiometrie Linear Transducers | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Stroke up to 1000 mm Infinite Resolution Very long life; up to 50 million movements Protection Class IP 65 High operating speed 5 m/s High independent linearity 0,1 % The grooves provide an excellent alternative to the usual system of fastening with brackets | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| LTM is a high precision potentiometric industrial linear motion transducer with a long lasting conductive track suitable for absolute position measuring in control and Measurement applications.Designed for the direct, absolute measurement of displacement or length in control regulation and measuring applications. High resolutin (0.01 mm) combined with a stroke length of up to 1000 mm permits the accurate measurement of linear displacement. Rack and pinions or similar devices are not required because the design of the transducers is such that they may be built directly into the mechanical system. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Applications: LTM Series can be used in a wide range of applications in mechanical and vehicle engineering industries as well as in automation and robotics technologies, combining remarkable robustness with high accuracy. LTM Series Potentiometric Linear Transducers are mainly used in ; | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| • Press brake Machines • Horizontal Band Saw Machines • Transfer Machines • Hydraulic Machines • Sheet metal working machines • Bending presses • Plastic & Metal Injection Machines • Textile Machines • Robotics/materials handling • Profile Cutting Machines • CNC Pipe Twisting Machines | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
