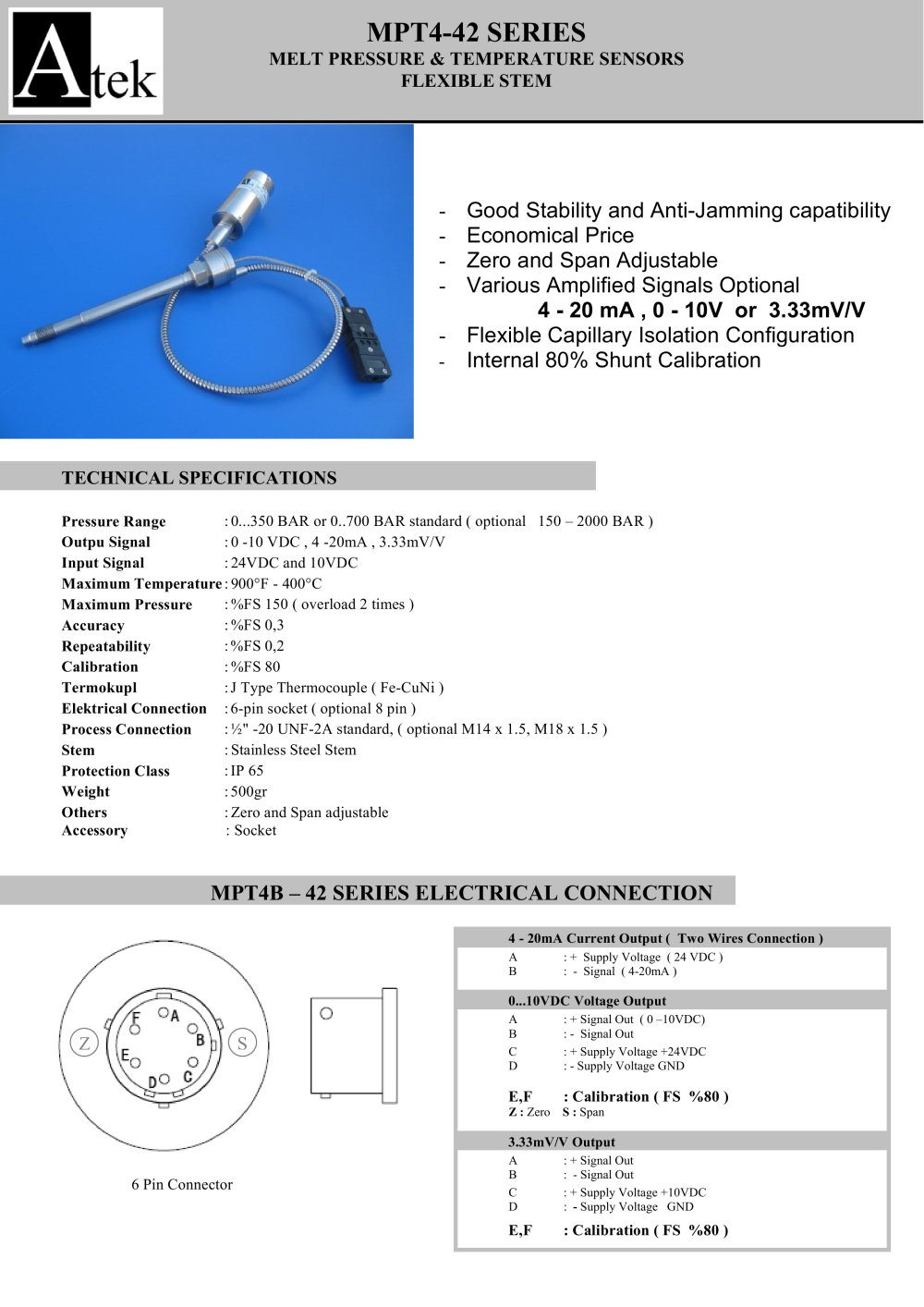

MELT PRESSURE & HIGH TEMPERATURE SENSORS - 1

Pressure Range : 0...350 BAR or 0..700 BAR standard ( optional 150 2000 BAR ) Outpu Signal : 0 -10 VDC , 4 -20mA , 3.33mV/V Input Signal : 24VDC and 10VDC Maximum Temperature : 900ְF - 400C Maximum Pressure : %FS 150 ( overload 2 times ) Accuracy : %FS 0,3 Repeatabilit y : %FS 0,2 Calibration :%FS 80 Termokupl : J Type Thermocouple ( Fe-CuNi ) Elektrical Connection : 6-pin socket ( optional 8 pin ) Process Connection : н" -20 UNF-2A standard, ( optional M14 x 1.5, M18 x 1.5 ) Stem :Stainless Steel Stem Protection Class : IP 65 Weight : 500gr Others :Zero and Span adjustable Accessory : Socket > 4 - 20mA Current Output ( Two Wires Connection ) A : + Supply Voltage ( 24 VDC ) B : - Signal ( 4-20mA ) 0...10VDC Voltage Output A : + Signal Out ( 0 ֖10VDC) B : - Signal Out C : + Supply Voltage +24VDC D : -Supply Voltage GND E,F : Calibration ( FS %80 ) > Z : Zero S : Span 3.33mV/V Output A : + Signal Out B : - Signal Out C : + Supply Voltage +10VDC D : 6 Pin Connector > - Supply Voltage GND E,F : Calibration ( FS %80 ) >

Open the catalog to page 1

MELT PRESSURE & HIGH TEMPERATURE SENSORS - 2

DIMENSIONDIMENSION MOUNTING HOLE and MECHANICAL DIMENSIONS MOUNTING HOLE and MECHANICAL DIMENSIONS >

Open the catalog to page 2

MELT PRESSURE & HIGH TEMPERATURE SENSORS - 3

1. INSTALLATION Do not remove protective cap untill ready to install. Prior to installation, verify correct machining of mounting hole.Installwith aluminum gasket. The electronics housing should be secured, with the enclosed mounting bracket. 2. REMOVE Make sure that there is no remained metal or plastic;remove all of the transducers from the equipment before you clean theextruder. You can remove the transducer only when the polymer is molten and clean the diaphgram of the transducer with soft cloth as soon as you remove it. 3. START UP Bring system to operating temperature and with no...
