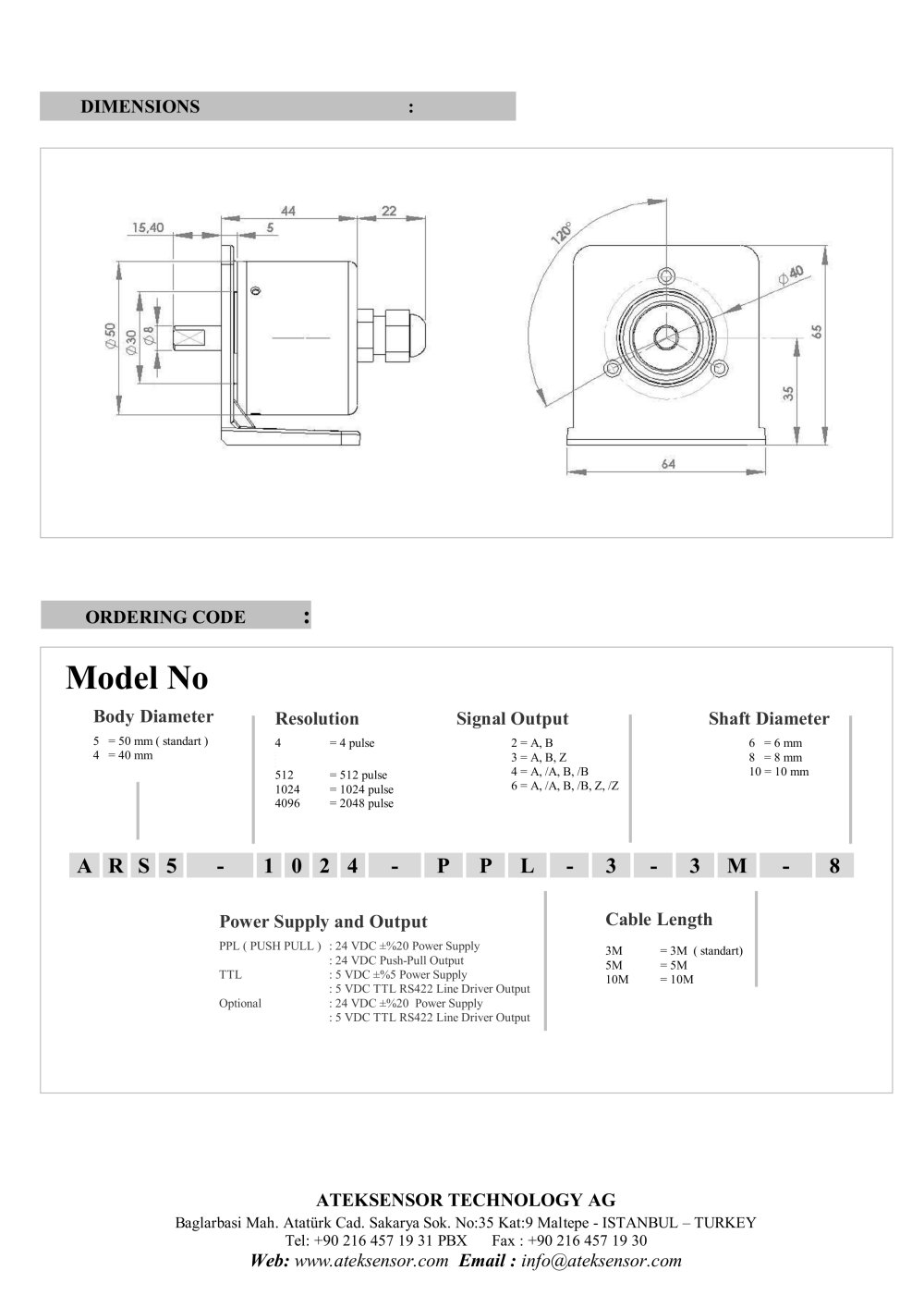

DIMENSIONS : Body Diameter ORDERING CODE

:

incremental rotary encoder - 50380 Model No

Resolution Signal Output Shaft Diameter 5 = 50 mm ( standart ) 4 = 40 mm 4 = 4 pulse . . . . . 2 = A, B 3 = A, B, Z 4 = A, /A, B, /B 6 = A, /A, B, /B, Z, /Z 6 = 6 mm 8 = 8 mm 10 = 10 mm 512 = 512 pulse 1024 = 1024 pulse 4096 = 2048 pulse A R S 5 - 1 2 4 - P P L - 3 - 3 M - 8
Power Supply and Output Cable Length PPL ( PUSH PULL ) : 24 VDC ±%20 Power Supply : 24 VDC Push-Pull Output TTL : 5 VDC ±%5 Power Supply : 5 VDC TTL RS422 Line Driver Output Optional : 24 VDC ±%20 Power Supply : 5 VDC TTL RS422 Line Driver Output 3M = 3M ( standart) 5M = 5M 10M = 10M ATEKSENSOR TECHNOLOGY AG Baglarbasi Mah. Atatürk Cad. Sakarya Sok. No:35 Kat:9 Maltepe - ISTANBUL – TURKEY Tel: +90 216 457 19 31 PBX Fax : +90 216 457 19 30 Web: www.ateksensor.com Email : info@ateksensor.com
