ALC-77 Series

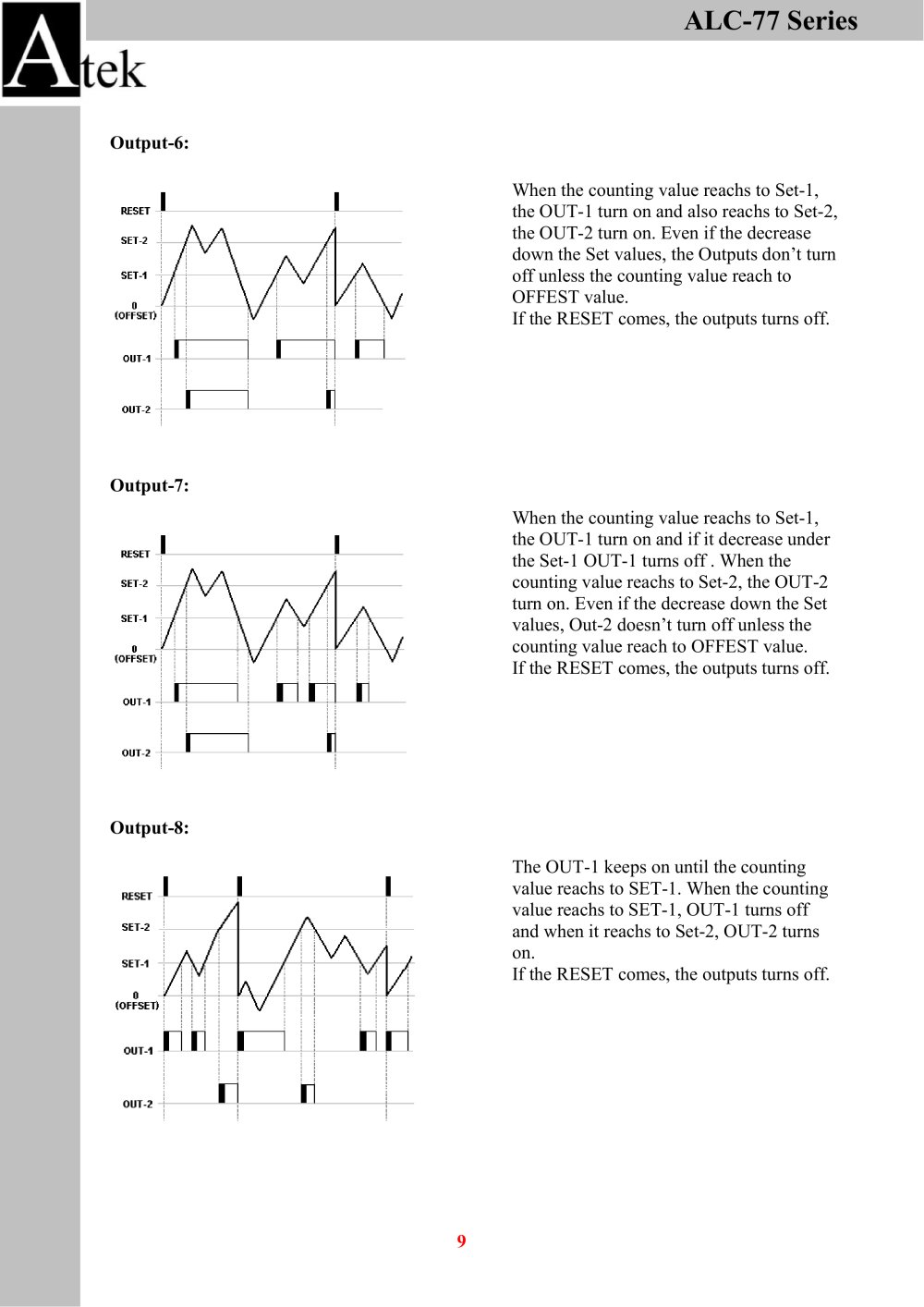

Output-6: Output-7: Output-8: When the counting value reachs to Set-1, the OUT-1 turn on and also reachs to Set-2, the OUT-2 turn on. Even if the decrease down the Set values, the Outputs don’t turn off unless the counting value reach to OFFEST value.If the RESET comes, the outputs turns off. When the counting value reachs to Set-1, the OUT-1 turn on and if it decrease under the Set-1 OUT-1 turns off . When the counting value reachs to Set-2, the OUT-2 turn on. Even if the decrease down the Set values, Out-2 doesn’t turn off unless the counting value reach to OFFEST value.If the RESET comes, the outputs turns off. The OUT-1 keeps on until the counting value reachs to SET-1. When the counting value reachs to SET-1, OUT-1 turns off and when it reachs to Set-2, OUT-2 turns on.If the RESET comes, the outputs turns off. 9
