ALC-77 Series

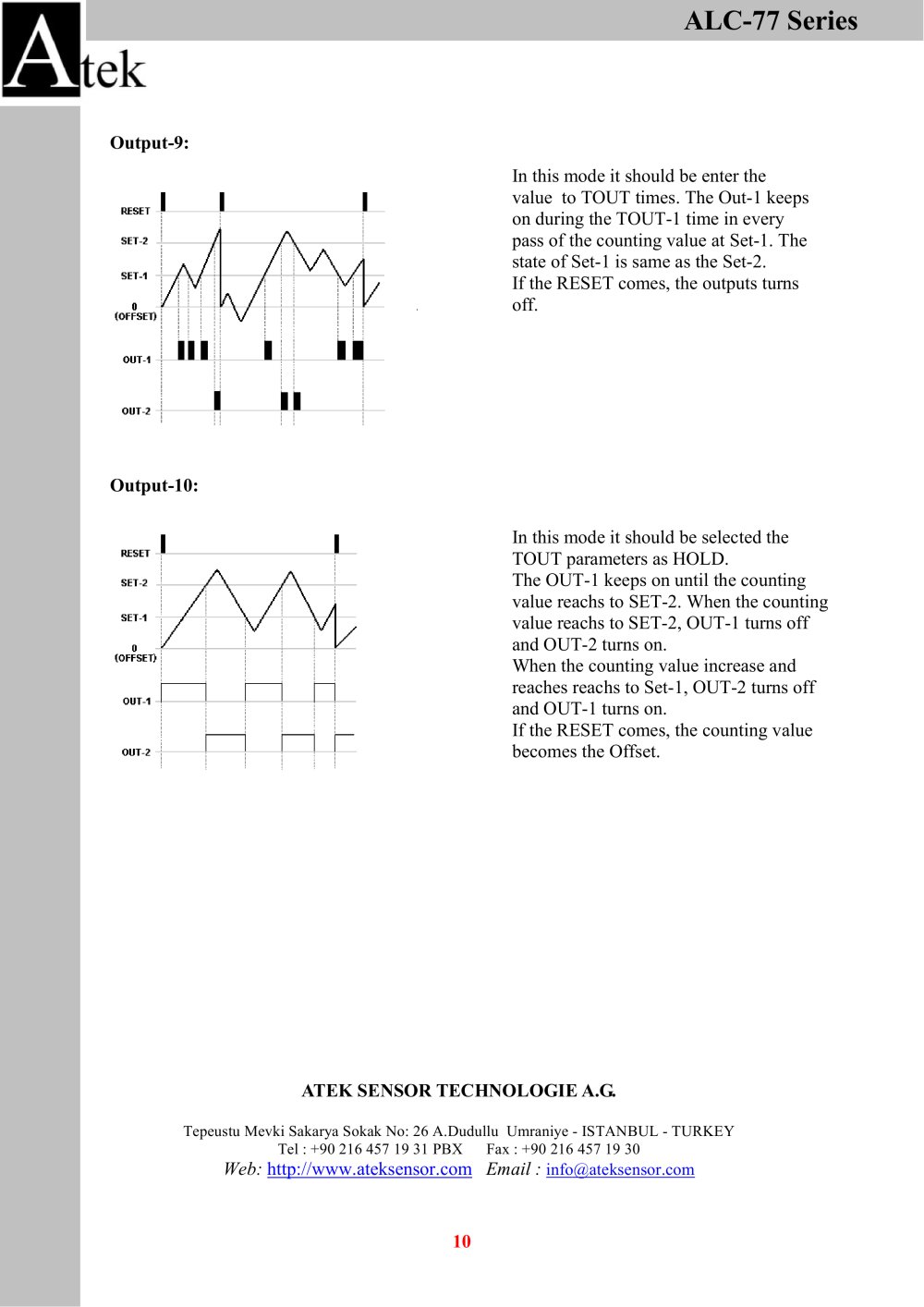

Output-9: Output-10: In this mode it should be enter the value to TOUT times. The Out-1 keeps on during the TOUT-1 time in every p ass of the counting value at Set-1. The state of Set-1 is same as the Set-2. If the RESET comes, the outputs turns off. In this mode it should be selected the TOUT parameters as HOLD. The OUT-1 keeps on until the counting value reachs to SET-2. When the counting value reachs to SET-2, OUT-1 turns off and OUT-2 turns on. When the counting value increase and reaches reachs to Set-1, OUT-2 turns off and OUT-1 turns on. If the RESET comes, the counting value becomes the Offset. ATEK SENSOR TECHNOLOGIE A.G.
