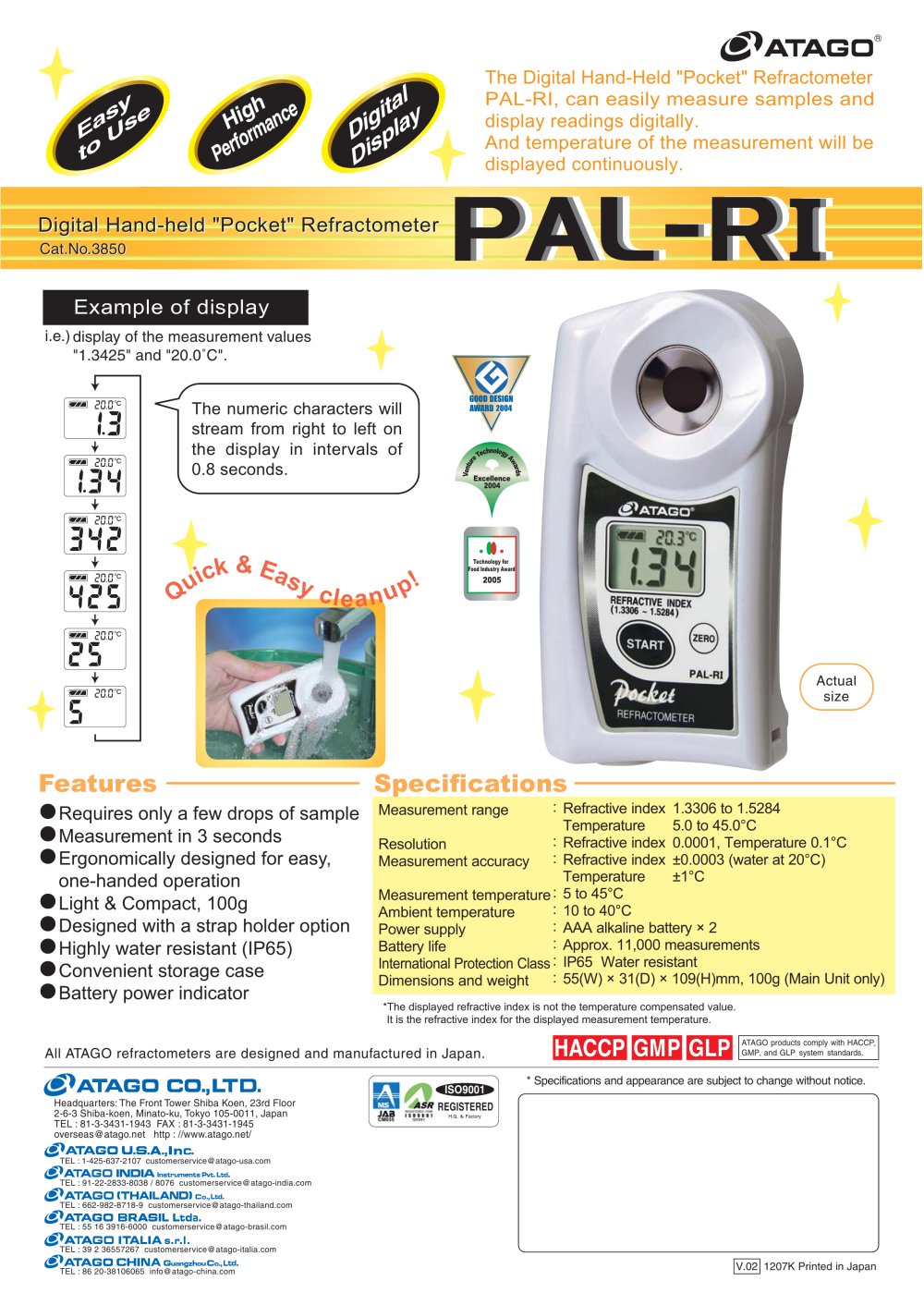

| | | The Digital Hand-Held "Pocket" Refractometer PAL-RI, can easily measure samples and display readings digitally. And temperature of the measurement will be displayed continuously. | | |
| | | |
| | | PAL- RI | | |
| | | Digital Hand-Held "Pocket" Refractometer Cat.No.3850 | | |
| | | |
| | | |
| | | Example of display | | |
| | | |
| | | i.e.) display of the measurement values "1.3425" and "20°C". | | |
| | | w MOD IHM HMIIMM V | | |
| | | |
| | | The numeric characters will stream from right to left on the display in intervals of 0.8 seconds. | | |
| | | |
| | | / .3 | | |
| | | |
| | | |
| | | TichiiohMjy ta | | |
| | | ¿5 | | |
| | | |
| | | |
| | | '*>clea«*flX | | |
| | | |
| | | ED | | |
| | | |
| | | Actual size | | |
| | | |
| | | Feature • Requires only a few drops of sample • Measurement in 3 seconds • Economically designed for easy, one-handed operation • Light & Compact, 100g • Designed with a strap holder option • Highly water resistant (IP65) • Convenient storage case • Battery power indicator | | |
| | | Specification Measurement range Resolution Measurement accuracy Measurement temperature Ambient temperature Power supply Battery life International Protection Class Dimensions and weight | | |
| | | | | |
| | | Refractive index Refractive index Refractive index | | 1.3306~ 1.5284 0.0001 ±0.0003 (water at 20°C) | | |
| | | |
| | | |
| | | 5~45°C 10~40°C AAA alkaline battery x 2 Approx. 11,000 measurements IP65 Water resistant 55(W) x 31 (D) x 109(H)mm, 10Og (Main Unit only) | | |
| | | |
| | | |
| | | * The displayed refractive index is not the temperature compensated value. It is the refractive Index for the displayed measurement temperature. | | |
| | | |
| | | |
| | | aia | | |
| | | HACCP G.M.P. | | |
| | | ATAGO products are acknowledged by HACCP, G.M.P. and G.L.P. | | |
| | | All ATAGO refractometers are designed and manufactured in Japan. ATAGO CO.,LTD. Headquarters: 32-10, Honcho, ltabashi-ku, Tokyo 173-0001 Japan
| | |
| | | |
| | | |
| | | |
| | | 8$ Specifications and appearance are subject to change without notice. | | |
| | | |
