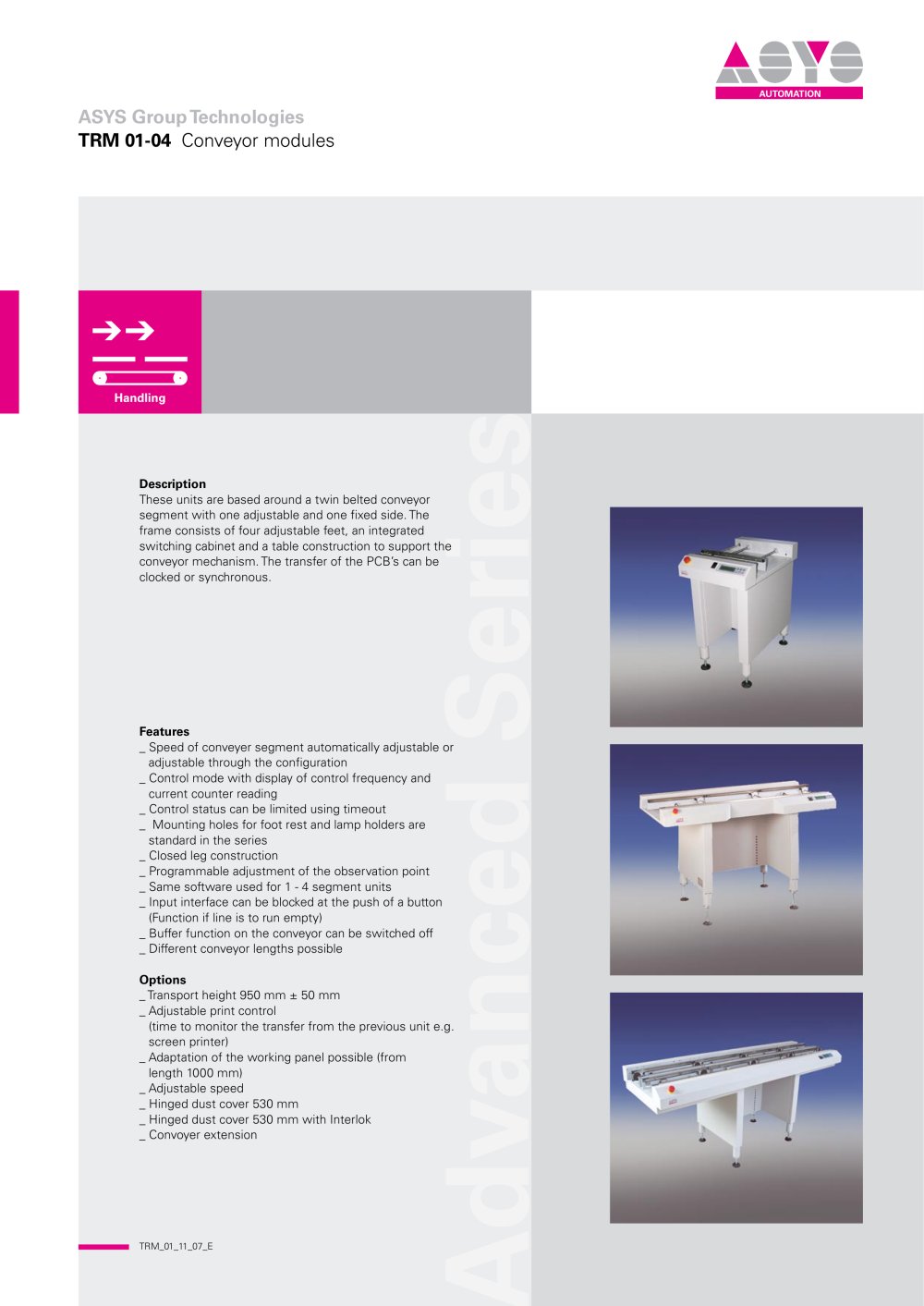

ASYS Group Technologies TRM 01-04 Conveyor modules

Description These units are based around a twin belted conveyorsegment with one adjustable and one fixed side. The frame consists of four adjustable feet, an integrated switching cabinet and a table construction to support the conveyor mechanism. The transfer of the PCB’s can be clocked or synchronous.

Options _ Transport height 950 mm ± 50 mm _ Adjustable print control (time to monitor the transfer from the previous unit e.g. screen printer) _ Adaptation of the working panel possible (from length 1000 mm) _ Adjustable speed _ Hinged dust cover 530 mm _ Hinged dust cover 530 mm with Interlok _ Convoyer extension

Features _ Speed of conveyer segment automatically adjustable or adjustable through the configuration _ Control mode with display of control frequency and current counter reading _ Control status can be limited using timeout _ Mounting holes for foot rest and lamp holders are standard in the series _ Closed leg construction _ Programmable adjustment of the observation point _ Same software used for 1 - 4 segment units _ Input interface can be blocked at the push of a button (Function if line is to run empty) _ Buffer function on the conveyor can be switched off_ Different conveyor lengths possible

TRM_01_11_07_E
