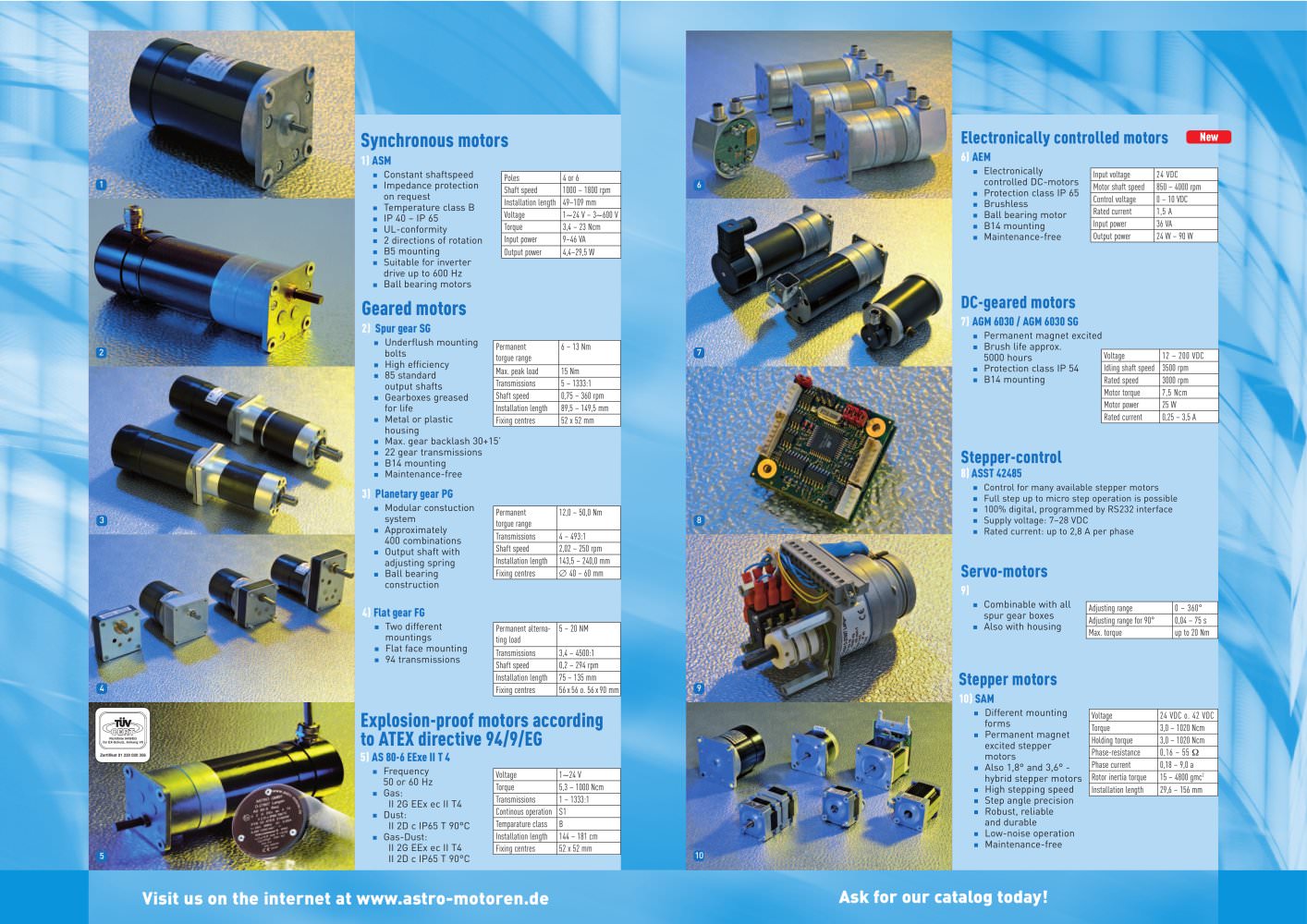

Synchronous motors

Electronically controlled motors

New 1)ASM 6)AEM

Constant shaftspeed Electronicallycontrolled DC-motors

Input voltage 24 VDC
1 Poles 4 or 6

Impedance protection on request

Shaft speed 1000 – 1800 rpm
6

Protection class IP 65

Motor shaft speed 850 – 4000 rpm Control voltage 0 – 10 VDC

Temperature class B

Installation length 49–109 mm

Brushless IP 40 – IP 65

Voltage 1

∼

24 V – 3

∼

600 V

Ball bearing motor

Rated current 1,5 A

UL-conformity

Torque 3,4 – 23 Ncm

B14 mounting

Input power 36 VA

2 directions of rotation

Input power 9–46 VA

Maintenance-free

Output power 24 W – 90 W

B5 mounting

Output power 4,4–29,5 W

Suitable for inverter drive up to 600 Hz Ball bearing motors

Geared motors

DC-geared motors

2)Spur gear SG 7)AGM 6030 / AGM 6030 SG

Underflush mountingbolts Permanent magnet excited

Permanent torgue range 6 – 13 Nm
2 7

Brush life approx.5000 hours

Voltage 12 – 200 VDC

High efficiency

Max. peak load 15 Nm Idling shaft speed 3500 rpm

85 standard output shafts Protection class IP 54

Transmissions 5 – 1333:1

B14 mounting

Rated speed 3000 rpm

Gearboxes greased for life

Shaft speed 0,75 – 360 rpm Motor torque 7,5 Ncm Installation length 89,5 – 149,5 mm Motor power 25 W

Metal or plastic housing

Fixing centres 52 x 52 mm Rated current 0,25 – 3,5 A

Max. gear backlash 30+15’ 22 gear transmissions B14 mounting

Stepper-control

Maintenance-free

8)ASST 42485 3)Planetary gear PG

Control for many available stepper motors Full step up to micro step operation is possible

Modular constuctionsystem

Permanent torgue range 12,0 – 50,0 Nm 100% digital, programmed by RS232 interface
3 8 Supply voltage: 7–28 VDC

Approximately 400 combinations

Transmissions 4 – 493:1 Rated current: up to 2,8 A per phase

Output shaft with adjusting spring

Shaft speed 2,02 – 250 rpm Installation length 143,5 – 240,0 mm

Ball bearing construction

Fixing centres ∅ 40 – 60 mm

Servo-motors

9) 4)Flat gear FG

Combinable with allspur gear boxes

Adjusting range 0 – 360°

Two different mountings

Adjusting range for 90° 0,04 – 75 s Permanent alterna-ting load 5 – 20 NM

Also with housing

Max. torque up to 20 Nm

Flat face mounting 94 transmissions

Transmissions 3,4 – 4500:1 Shaft speed 0,2 – 294 rpm Installation length 75 – 135 mm
4 Fixing centres 56x56 o. 56x90 mm
9

Stepper motors

10)SAM

Richtlinie 94/9/EGfür EX-Schutz, Anhang VII

Explosion-proof motors accordingto ATEX directive 94/9/EG

Different mountingforms

Voltage 24 VDC o. 42 VDC

Permanent magnetexcited stepper motors

Torque 3,0 – 1020 Ncm Holding torque 3,0 – 1020 Ncm
Zertifikat 01 220 020 356

5)AS 80-6 EExe II T 4

Phase-resistance 0,16 – 55 Ω

Frequency 50 or 60 Hz

Phase current 0,18 – 9,0 a Voltage 1

∼

24 V

Also 1,8° and 3,6° -hybrid stepper motors

Rotor inertia torque 15 – 4800 gmc
2 Torque 5,3 – 1000 Ncm

Gas: II 2G EEx ec II T4 High stepping speed

Installation length 29,6 – 156 mm Transmissions 1 – 1333:1

Step angle precision

Continous operation S1

Dust: II 2D c IP65 T 90°C Robust, reliable and durable

Temparature class B Installation length 144 – 181 cm

Gas-Dust: II 2G EEx ec II T4 II 2D c IP65 T 90°C Low-noise operation

Fixing centres 52 x 52 mm

Maintenance-free

5 10

Visit us on the internet at www.astro-motoren.deAsk for our catalog today!
