Installation
Cut out the cable output at appropriate side in that way that the coming out cables are not squeezed or sheared while placing the
mat afterwards. Place and adjust the
mat at appropriate place. To provide against slipping use suitable screws and dowels on each side of the
mat.
8,2 kŮ resistor
Ů
====
cut out
coming out cables
supply cable with
female plug M8
connection cable with
female and male plug M8
male plug M8 with
8,2 kŮ resistor

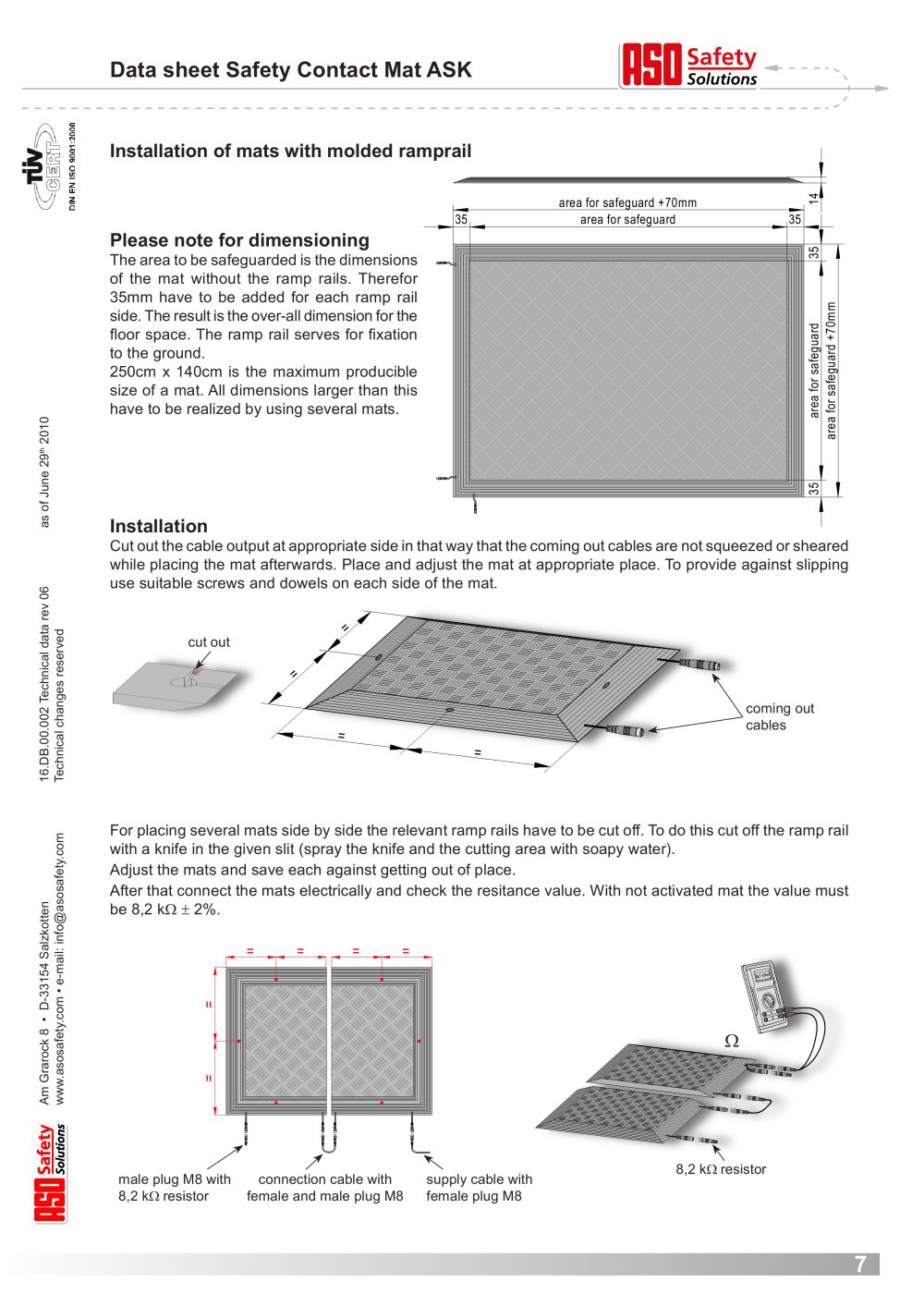

Installation of
mats with molded ramprail
16.DB.00.002 Technical data rev 06 as of June 29th 2010
Technical changes reserved
Am Grarock 8 • D-33154 Salzkotten
www.asosafety.com • e-mail: info@asosafety.com
7
For placing several
mats side by side the relevant ramp rails have to be cut off. To do this cut off the ramp rail with a knife in the given slit (spray the knife and the cutting area with soapy water).
Adjust the
mats and save each against getting out of place.
After that connect the
mats electrically and check the resitance value. With not activated
mat the value must be 8,2 kŮ ± 2%.
area for safeguard35area for safeguard +70mm3535area for safeguardarea for safeguard +
70mm3514
Please note for dimensioning
The area to be safeguarded is the dimensions of the
mat without the ramp rails. Therefor 35mm have to be added for each ramp rail side. The result is the over-allll dimension for the floor space. The ramp rail serves for fixation to the ground.
250cm x 140cm is the maximum producible size of a
mat. All dimensions larger than this have to be realized by using several
mats.
