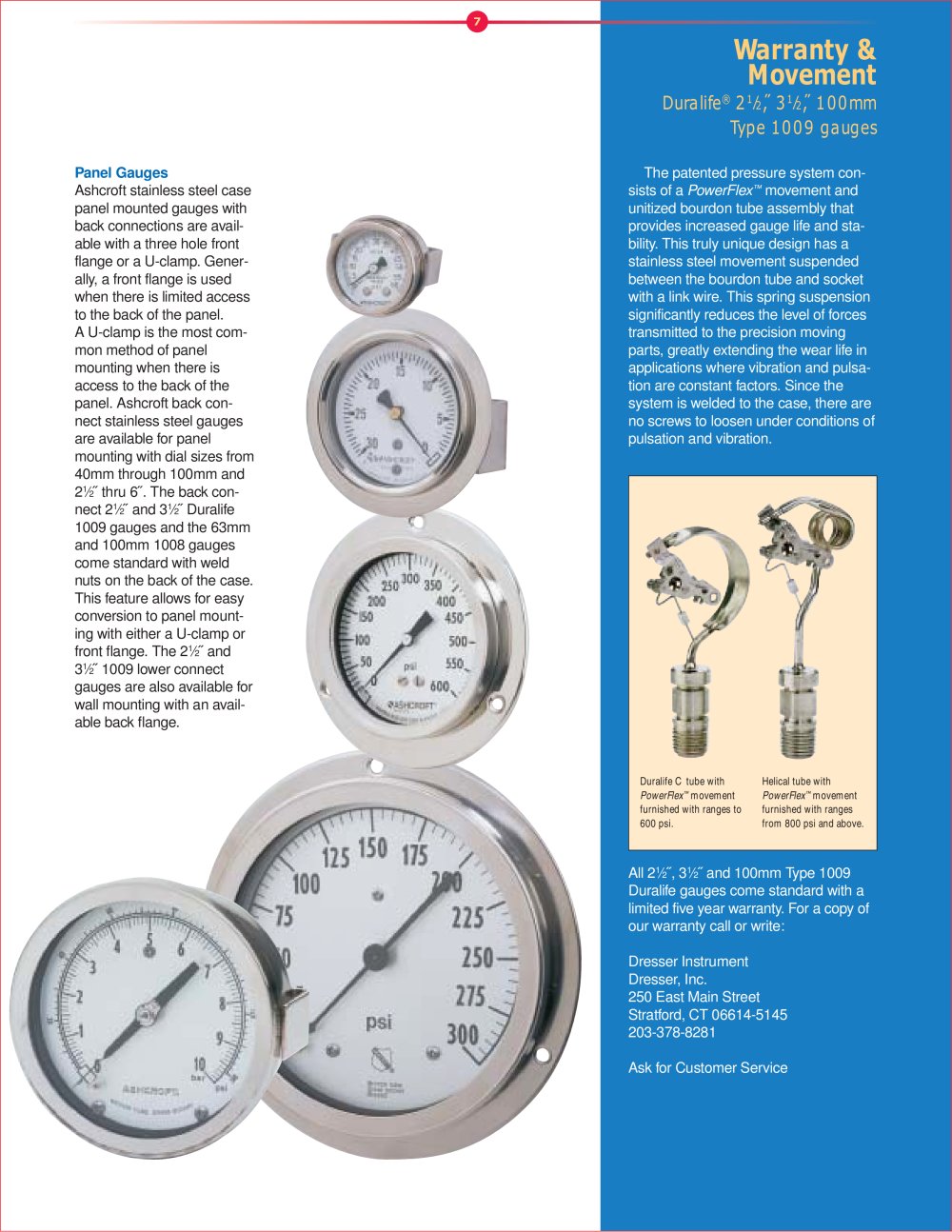

Panel Gauges Ashcroft stainless steel case panel mounted gauges with back connections are avail- able with a three hole front flange or a U-clamp. Gener- ally, a front flange is used when there is limited access to the back of the panel. A U-clamp is the most com- mon method of panel mounting when there is access to the back of the panel. Ashcroft back con- nect stainless steel gauges are available for panel mounting with dial sizes from 40mm through 100mm and 2
7

Warranty &Movement

Duralife

®

2

1

�

2

,� 3

1

�

2

,� 100mm Type 1009 gauges

The patented pressure system con-sists of a PowerFlex
™ movement andunitized bourdon tube assembly that provides increased gauge life and sta- bility. This truly unique design has a stainless steel movement suspended between the bourdon tube and socket with a link wire. This spring suspension significantly reduces the level of forces transmitted to the precision moving parts, greatly extending the wear life in applications where vibration and pulsa- tion are constant factors. Since the system is welded to the case, there are no screws to loosen under conditions of pulsation and vibration. All 2
1 �
2 �thru 6�. The back con-nect 2
1 �
2 �and 3
1 �
2 �Duralife1009 gauges and the 63mm and 100mm 1008 gauges come standard with weld nuts on the back of the case. This feature allows for easy conversion to panel mount- ing with either a U-clamp or front flange. The 2
1 �
2 �and3
1 �
2 �1009 lower connectgauges are also available for wall mounting with an avail- able back flange.
PowerFlex Helical tube with ™ movementfurnished with ranges to 600 psi. PowerFlex ™ movementfurnished with ranges from 800 psi and above.Duralife C tube with 1 â�„
2 �, 3
1 �
2 � and 100mm Type 1009Duralife gauges come standard with a limited five year warranty. For a copy of our warranty call or write:Dresser Instrument Dresser, Inc. 250 East Main Street Stratford, CT 06614-5145 203-378-8281Ask for Customer Service
