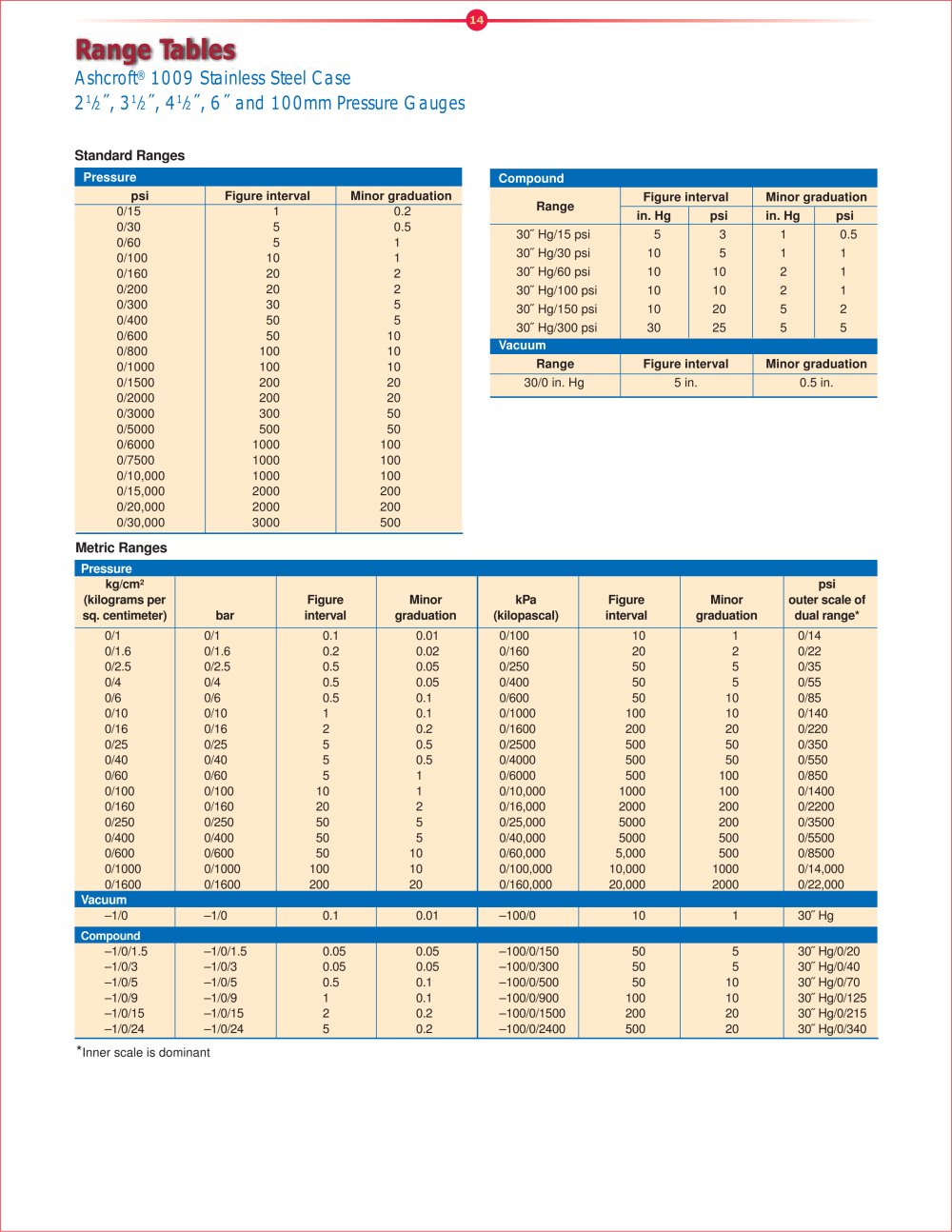

| | | | | | | | | | | | | | | | | | | | | | | | | | Range Tables Ashcroft® 1009 Stainless Steel Case 21/2", SVà", 4V2', 6" and 100mm Ressuie Gauges | | | | | | | | | | Standard Ranges | | | | | | | | | | | | | | | | | | Pressure | | | | | psi | Figure interval | Minor graduation | | | | 0/15 | 1 | 0.2 | | | | 0/30 | 5 | 0.5 | | | | 0/60 | 5 | 1 | | | | 0/100 | 10 | 1 | | | | 0/160 | 20 | 2 | | | | 0/200 | 20 | 2 | | | | 0/300 | 30 | 5 | | | | 0/400 | 50 | 5 | | | | 0/600 | 50 | 10 | | | | 0/800 | 100 | 10 | | | | 0/1000 | 100 | 10 | | | | 0/1500 | 200 | 20 | | | | 0/2000 | 200 | 20 | | | | 0/3000 | 300 | 50 | | | | 0/5000 | 500 | 50 | | | | 0/6000 | 1000 | 100 | | | | 0/7500 | 1000 | 100 | | | | 0/10,000 | 1000 | 100 | | | | 0/15,000 | 2000 | 200 | | | | 0/20,000 | 2000 | 200 | | | | 0/30,000 | 3000 | 500 | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | Compound | | | | Range | Figure interval | Minor graduation | | | | in. Hg | psi | in. Hg | psi | | | | 30" Hg/15 psi | 5 | 3 | 1 | 0.5 | | | | 30" Hg/30 psi | 10 | 5 | 1 | 1 | | | | 30" Hg/60 psi | 10 | 10 | 2 | 1 | | | | 30" Hg/100 psi | 10 | 10 | 2 | 1 | | | | 30" Hg/150 psi | 10 | 20 | 5 | 2 | | | | 30" Hg/300 psi | 30 | 25 | 5 | 5 | | | | Vacuum | | | | | | | Range | Figure interval | Minor graduation | | | | 30/0 in. Hg | 5 in. | 0.5 in. | | | | | | | | | | | | | | | | | | | | | | | | Metric Ranges | | | | | | | | | | Pressure | | | | | | | | | | | | | | | | | | | | | | | kg/cm2 | | | | | | | psi | | | | (kilograms per | | Figure | Minor | kPa | Figure | Minor | outer scale of | | | | sq. centimeter) | bar | interval | graduation | (kilopascal) | interval | graduation | dual range* | | | | 0/1 | 0/1 | 0.1 | 0.01 | 0/100 | 10 | 1 | 0/14 | | | | 0/1.6 | 0/1.6 | 0.2 | 0.02 | 0/160 | 20 | 2 | 0/22 | | | | 0/2.5 | 0/2.5 | 0.5 | 0.05 | 0/250 | 50 | 5 | 0/35 | | | | 0/4 | 0/4 | 0.5 | 0.05 | 0/400 | 50 | 5 | 0/55 | | | | 0/6 | 0/6 | 0.5 | 0.1 | 0/600 | 50 | 10 | 0/85 | | | | 0/10 | 0/10 | 1 | 0.1 | 0/1000 | 100 | 10 | 0/140 | | | | 0/16 | 0/16 | 2 | 0.2 | 0/1600 | 200 | 20 | 0/220 | | | | 0/25 | 0/25 | 5 | 0.5 | 0/2500 | 500 | 50 | 0/350 | | | | 0/40 | 0/40 | 5 | 0.5 | 0/4000 | 500 | 50 | 0/550 | | | | 0/60 | 0/60 | 5 | 1 | 0/6000 | 500 | 100 | 0/850 | | | | 0/100 | 0/100 | 10 | 1 | 0/10,000 | 1000 | 100 | 0/1400 | | | | 0/160 | 0/160 | 20 | 2 | 0/16,000 | 2000 | 200 | 0/2200 | | | | 0/250 | 0/250 | 50 | 5 | 0/25,000 | 5000 | 200 | 0/3500 | | | | 0/400 | 0/400 | 50 | 5 | 0/40,000 | 5000 | 500 | 0/5500 | | | | 0/600 | 0/600 | 50 | 10 | 0/60,000 | 5,000 | 500 | 0/8500 | | | | 0/1000 | 0/1000 | 100 | 10 | 0/100,000 | 10,000 | 1000 | 0/14,000 | | | | 0/1600 | 0/1600 | 200 | 20 | 0/160,000 | 20,000 | 2000 | 0/22,000 | | | | Vacuum | | | | | | | | | | | -1/0 | -1/0 | 0.1 | 0.01 | -100/0 | 10 | 1 | 30" Hg | | | | Compound | | | | | | | | | | | -1/0/1.5 | -1/0/1.5 | 0.05 | 0.05 | -100/0/150 | 50 | 5 | 30" Hg/0/20 | | | | -1/0/3 | -1/0/3 | 0.05 | 0.05 | -100/0/300 | 50 | 5 | 30" Hg/0/40 | | | | -1/0/5 | -1/0/5 | 0.5 | 0.1 | -100/0/500 | 50 | 10 | 30" Hg/0/70 | | | | -1/0/9 | -1/0/9 | 1 | 0.1 | -100/0/900 | 100 | 10 | 30" Hg/0/125 | | | | -1/0/15 | -1/0/15 | 2 | 0.2 | -100/0/1500 | 200 | 20 | 30" Hg/0/215 | | | | -1/0/24 | -1/0/24 | 5 | 0.2 | -100/0/2400 | 500 | 20 | 30" Hg/0/340 | | | | | | | | | | | | | | | | | | | | | | | *Inner scale is dominant | | | | | | | | | | | | | | | | | | | | | | | | | |
|
