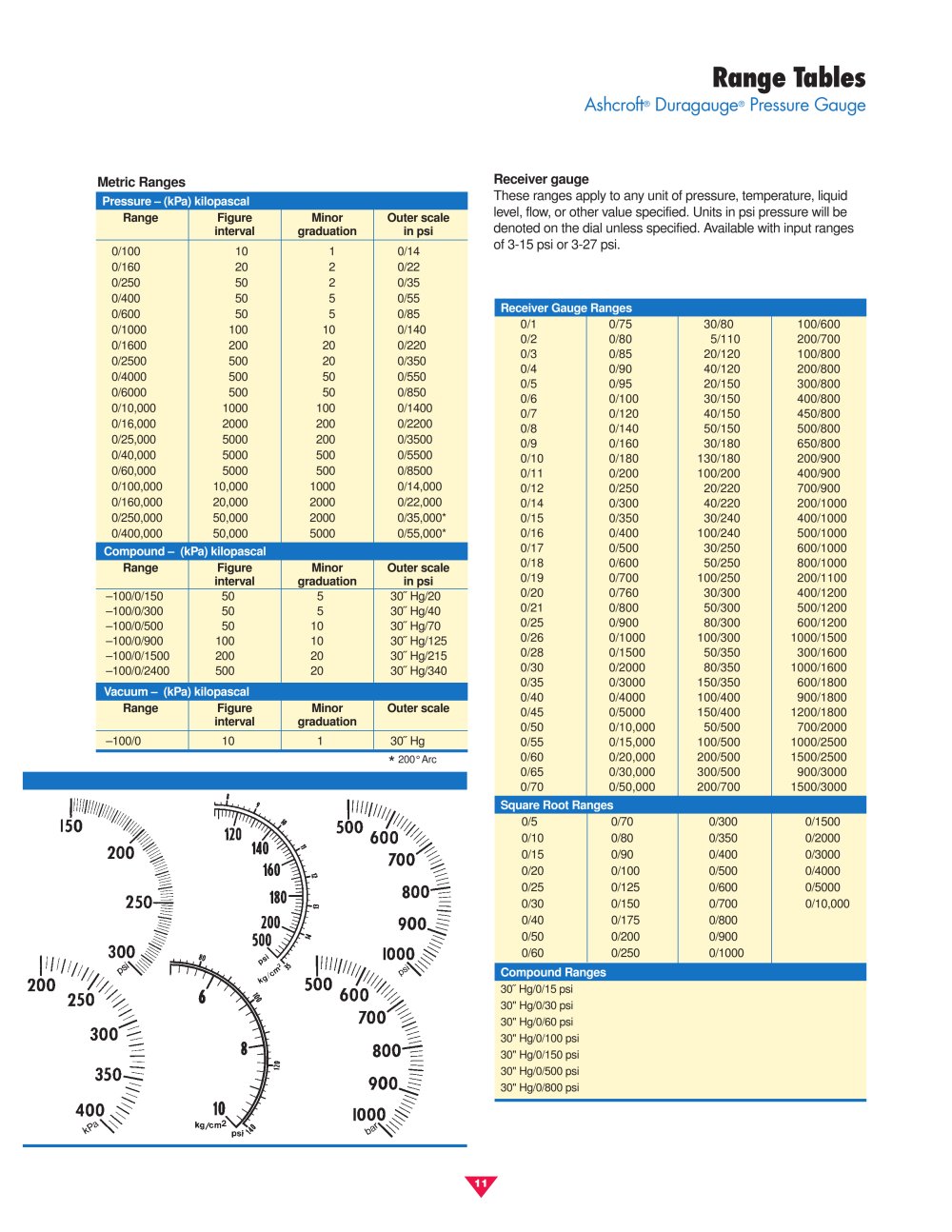

| | | | | | | | | | | | | | | | | | | | | | Range Tables | | | | | | | | | | Receiver gauge These ranges apply to any unit of pressure, temperature, liquid level, flow, or other value specified. Units in psi pressure will be denoted on the dial unless specified. Available with input ranges of 3-15 psi or 3-27 psi. | | | | | | Metric Ranges | | | | | | | | | | | | | | | | | | | Pressure - (kPa) kilopascal | | | | Range | Figure | Minor | Outer scale | | | | | interval | graduation | in psi | | | | 0/100 | 10 | 1 | 0/14 | | | | 0/160 | 20 | 2 | 0/22 | | | | 0/250 | 50 | 2 | 0/35 | | | | 0/400 | 50 | 5 | 0/55 | | | | 0/600 | 50 | 5 | 0/85 | | | | 0/1000 | 100 | 10 | 0/140 | | | | 0/1600 | 200 | 20 | 0/220 | | | | 0/2500 | 500 | 20 | 0/350 | | | | 0/4000 | 500 | 50 | 0/550 | | | | 0/6000 | 500 | 50 | 0/850 | | | | 0/10,000 | 1000 | 100 | 0/1400 | | | | 0/16,000 | 2000 | 200 | 0/2200 | | | | 0/25,000 | 5000 | 200 | 0/3500 | | | | 0/40,000 | 5000 | 500 | 0/5500 | | | | 0/60,000 | 5000 | 500 | 0/8500 | | | | 0/100,000 | 10,000 | 1000 | 0/14,000 | | | | 0/160,000 | 20,000 | 2000 | 0/22,000 | | | | 0/250,000 | 50,000 | 2000 | 0/35,000* | | | | 0/400,000 | 50,000 | 5000 | 0/55,000* | | | | Compound - (1 | Pa) kilopascal | | | | | | Range | Figure | Minor | Outer scale | | | | | interval | graduation | in psi | | | | -100/0/150 | 50 | 5 | 30" Hg/20 | | | | -100/0/300 | 50 | 5 | 30" Hg/40 | | | | -100/0/500 | 50 | 10 | 30" Hg/70 | | | | -100/0/900 | 100 | 10 | 30" Hg/125 | | | | -100/0/1500 | 200 | 20 | 30" Hg/215 | | | | -100/0/2400 | 500 | 20 | 30" Hg/340 | | | | Vacuum - (kPa) kilopascal | | | | Range | Figure | Minor | Outer scale | | | | | interval | graduation | | | | | -100/0 | 10 | 1 | 30" Hg | | | | | | | | | | | | | | | | | | | | | | | | | | | | Receiver Gauge | Ranges | | | | | | 0/1 | 0/75 | 30/80 | 100/600 | | | | 0/2 | 0/80 | 5/110 | 200/700 | | | | 0/3 | 0/85 | 20/120 | 100/800 | | | | 0/4 | 0/90 | 40/120 | 200/800 | | | | 0/5 | 0/95 | 20/150 | 300/800 | | | | 0/6 | 0/100 | 30/150 | 400/800 | | | | 0/7 | 0/120 | 40/150 | 450/800 | | | | 0/8 | 0/140 | 50/150 | 500/800 | | | | 0/9 | 0/160 | 30/180 | 650/800 | | | | 0/10 | 0/180 | 130/180 | 200/900 | | | | 0/11 | 0/200 | 100/200 | 400/900 | | | | 0/12 | 0/250 | 20/220 | 700/900 | | | | 0/14 | 0/300 | 40/220 | 200/1000 | | | | 0/15 | 0/350 | 30/240 | 400/1000 | | | | 0/16 | 0/400 | 100/240 | 500/1000 | | | | 0/17 | 0/500 | 30/250 | 600/1000 | | | | 0/18 | 0/600 | 50/250 | 800/1000 | | | | 0/19 | 0/700 | 100/250 | 200/1100 | | | | 0/20 | 0/760 | 30/300 | 400/1200 | | | | 0/21 | 0/800 | 50/300 | 500/1200 | | | | 0/25 | 0/900 | 80/300 | 600/1200 | | | | 0/26 | 0/1000 | 100/300 | 1000/1500 | | | | 0/28 | 0/1500 | 50/350 | 300/1600 | | | | 0/30 | 0/2000 | 80/350 | 1000/1600 | | | | 0/35 | 0/3000 | 150/350 | 600/1800 | | | | 0/40 | 0/4000 | 100/400 | 900/1800 | | | | 0/45 | 0/5000 | 150/400 | 1200/1800 | | | | 0/50 | 0/10,000 | 50/500 | 700/2000 | | | | 0/55 | 0/15,000 | 100/500 | 1000/2500 | | | | 0/60 | 0/20,000 | 200/500 | 1500/2500 | | | | 0/65 | 0/30,000 | 300/500 | 900/3000 | | | | 0/70 | 0/50,000 | 200/700 | 1500/3000 | | | | Square Root Ranges | | | | | 0/5 | 0/70 | 0/300 | 0/1500 | | | | 0/10 | 0/80 | 0/350 | 0/2000 | | | | 0/15 | 0/90 | 0/400 | 0/3000 | | | | 0/20 | 0/100 | 0/500 | 0/4000 | | | | 0/25 | 0/125 | 0/600 | 0/5000 | | | | 0/30 | 0/150 | 0/700 | 0/10,000 | | | | 0/40 | 0/175 | 0/800 | | | | | 0/50 | 0/200 | 0/900 | | | | | 0/60 | 0/250 | 0/1000 | | | | | Compound Ranges | | | | 30" Hg/0/15 psi | | | | | | | 30" Hg/0/30 psi | | | | | | | 30" Hg/0/60 psi | | | | | | | 30" Hg/0/100 psi | | | | | | | 30" Hg/0/150 psi | | | | | | | 30" Hg/0/500 psi | | | | | | | 30" Hg/0/800 psi | | | | | | | | | | | | | | | | | | | | | | * 200° Arc | | | | | | | | | | | | | | | | | | | | | | | | | |
|
