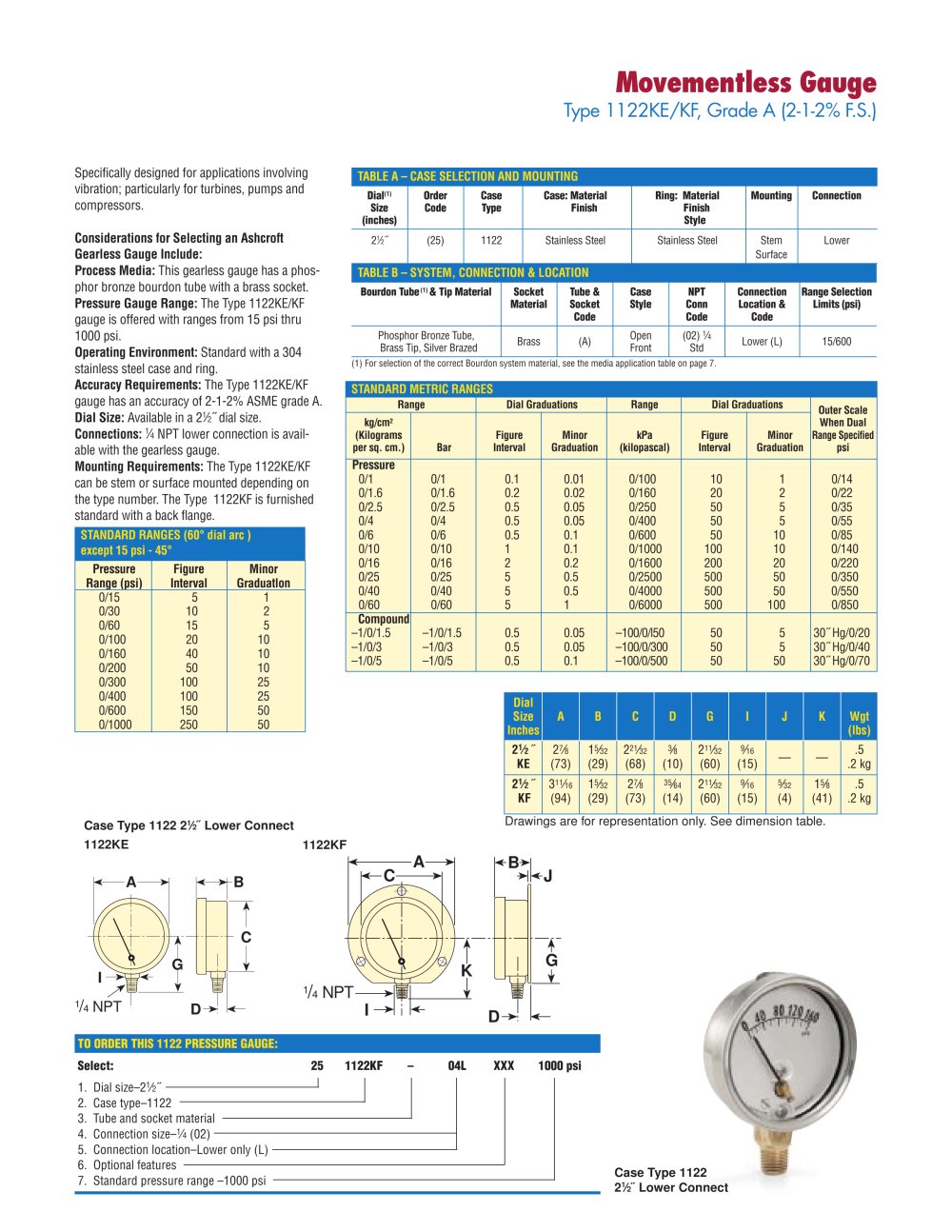

Movementless Gauge

pe 1122KE/KF, Grade A (2-1-2% F.S.)

Specifically designed for applications involving vibration; particularly for industrial turbines, pumps and industrial compressors.

Considerations for Selecting an Ashcroft Gearless Gauge Include: Process Media: This gearless gauge has a phosphor bronze bourdon tube with a brass socket. Pressure gauge manufacturer Range: The Type 1122KE/KF gauge is offered with ranges from 15 psi thru 1000 psi.

Operating Environment: Standard with a 304 stainless steel case and ring. Accuracy Requirements: The Type 1122KE/KF gauge has an accuracy of 2-1-2% ASME grade A. Dial Size: Available in a 2V2" dial size. Connections: M NPT lower connection is available with the gearless gauge. Mounting Requirements: The Type 1122KE/KF can be stem or surface mounted depending on the type number. The Type 1122KF is furnished standard with a back flange.

TABLE A - CASE SELECTION AND MOUNTING


Dial¹¹	Order	Case	Case: Material	Ring: Material	Mounting	Connection
Size	Code	Type	Finish	Finish
(inches)				Style
2¹/2"	(25)	1122	Stainless Steel	Stainless Steel	Stem	Lower
					Surface
TABLE B -	SYSTEM, CONNECTION & LOCATION					■

Bourdon Tube⁽¹⁾ & Tip Material

Socket Material

Tube & Socket Code

Case Style

NPT Conn Code

Connection Location & Code

Range Selection Limits (psi)

(02) Va

Std

Phosphor Bronze Tube, Brass Tip, Silver Brazed

Open Front

Brass

(A)

Lower (L)

15/600

(1) For selection of the correct Bourdon system material, see the media application table on page 7.

STANDARD METRIC RANGES


Range		Dial Graduations		Range	Dial Graduations		Outer Scale
kg/cm²							When Dual
(Kilograms		Figure	Minor	kPa	Figure	Minor	Range Specified
per sq. cm.)	Bar	Interval	Graduation	(kilopascal)	Interval	Graduation	psi
Pressure
0/1	0/1	0.1	0.01	0/100	10	1	0/14
0/1.6	0/1.6	0.2	0.02	0/160	20	2	0/22
0/2.5	0/2.5	0.5	0.05	0/250	50	5	0/35
0/4	0/4	0.5	0.05	0/400	50	5	0/55
0/6	0/6	0.5	0.1	0/600	50	10	0/85
0/10	0/10	1	0.1	0/1000	100	10	0/140
0/16	0/16	2	0.2	0/1600	200	20	0/220
0/25	0/25	5	0.5	0/2500	500	50	0/350
0/40	0/40	5	0.5	0/4000	500	50	0/550
0/60	0/60	5	1	0/6000	500	100	0/850
Compound
-1/0/1.5	-1/0/1.5	0.5	0.05	-100/0/l50	50	5	30" Hg/0/20
-1/0/3	-1/0/3	0.5	0.05	-100/0/300	50	5	30" Hg/0/40
-1/0/5	-1/0/5	0.5	0.1	-100/0/500	50	50	30" Hg/0/70

STANDARD RANGES (60° dial arc ) except 15 psi - 45°


Pressure	Figure	Minor
Range (psi)	Interval	Graduation
0/15	5	1
0/30	10	2
0/60	15	5
0/100	20	10
0/160	40	10
0/200	50	10
0/300	100	25
0/a00	100	25
0/600	150	50
0/1000	250	50


Dial	H
Size	^A	B	C	D	G	^I	J	K	Wgt
Inches									(lbs)
2V2"	2%		2%	%		"A			5
KE	(73)	(29)	(68)	(10)	(60)	(15)			.2 kg
2V2"	3"/Ì6			³⁵/64
KF	(94)	(29)	(73)	(14)	(60)	(15)	(4)	(41)	.2 kg

Drawings are for representation only. See dimension table.

Case Type 1122 2¹/2" Lower Connect 1122KE

1122KF

¹/4 NPT

^TO ^ORDER ^THI^S 1122 Select:

Dial size-2V2" —

; GAUGE:

1122KF

04L

XXX 1000 psi

Case type-1122 -

Tube and socket material Connection size-V4 (02) -

Connection location-Lower only (L) ■

6. Optional features -

7. Standard pressure range -1000 psi ■

Case Type 1122 2¹/2" Lower Connect
