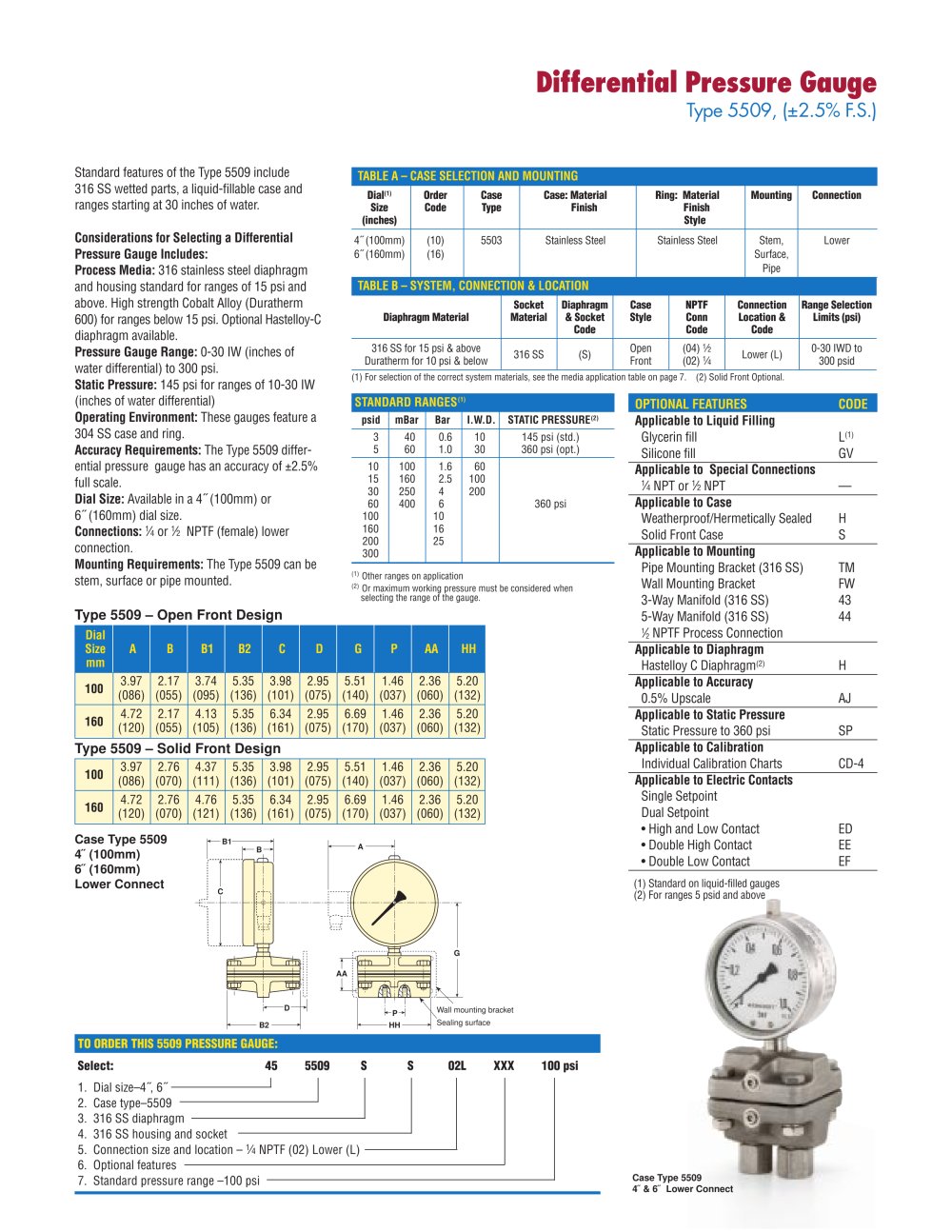

Pressure Gauge

Type 5509, (±2.5% F.S.)

Standard features of the Type 5509 include 316 SS wetted parts, a liquid-fillable case and ranges starting at 30 inches of water.

Considerations for Selecting a Differential Pressure Gauge Includes: Process Media: 316 stainless steel diaphragm and housing standard for ranges of 15 psi and above. High strength Cobalt Alloy (Duratherm 600) for ranges below 15 psi. Optional Hastelloy-C diaphragm available.

Pressure Gauge Range: 0-30 IW (inches of

water differential) to 300 psi.

Static Pressure: 145 psi for ranges of 10-30 IW

(inches of water differential)

Operating Environment: These gauges feature a

304 SS case and ring.

Accuracy Requirements: The Type 5509 differential pressure gauge has an accuracy of ±2.5% full scale.

Dial Size: Available in a 4" (100mm) or 6" (160mm) dial size.

Connections: M or V2 NPTF (female) lower connection.

Mounting Requirements: The Type 5509 can be stem, surface or pipe mounted.

Type 5509 - Open Front Design

TABLE A - CASE SELECTION AND MOUNTING


	Order	Case	Case: Material	Ring: Material	Mounting	Connection
Size	Code	Type	Finish	Finish
(inches)				Style
4" (100mm)	(10)	5503	Stainless Steel	Stainless Steel	Stem,	Lower
6" (l60mm)	(16)				Surface,
					Pipe

TABLE B - SYSTEM, CONNECTION & LOCATION


	Socket	Diaphragm	Case	NPTF	Connection	Range Selection
Diaphragm Material	Material	& Socket	Style	Conn	Location &	Limits (psi)
		Code		Code	Code
316 SS for 15 psi & above	316 SS	(S)	Open	(04) ¹h	Lower (L)	0-30 IWD to
Duratherm for 10 psi & below	316 SS	(S)	Front	(02) V4	Lower (L)	300 psid

(1) For selection of the correct system materials, see the media application table on page 7. (2) Solid Front Optional.

STANDARD RANGES'¹'

OPTIONAL FEATURES

CODE

L⁽¹⁾GV


psid	mBar	Bar	I.W.D.	STATIC PRESSURE'²'
3 5	40 60	0.6 1.0	10 30	145 psi (std.) 360 psi (opt.)
10 15 30 60 100 160 200 300	100 160 250 400	1.6 2.5 4 6 10 16 25	60 100 200	360 psi

Applicable to Liquid Filling

Glycerin fill Silicone fill

Applicable to Special Connections

KNPT or tëNPT_

Applicable to Case

Weatherproof/Hermetically Sealed


	Solid Front Case	S
	Applicable to Mounting
	Pipe Mounting Bracket (316 SS)	TM
	Wall Mounting Bracket	FW
	3-Way Manifold (316 SS)	43
	5-Way Manifold (316 SS)	44
	>2 NPTF Process Connection
	Applicable to Diaphragm
	Hastelloy C Diaphragm<²>	H
	Applicable to Accuracy
	0.5% Upscale	AJ
	Applicable to Static Pressure
	Static Pressure to 360 psi	SP
	Applicable to Calibration
	Individual Calibration Charts	CD-4
	Applicable to Electric Contacts
	Single Setpoint
	Dual Setpoint
	• High and Low Contact	ED
	• Double High Contact	EE
	• Double Low Contact	EF

⁽¹⁾ Other ranges on application

⁽²⁾ Or maximum working pressure must be considered when selecting the range of the gauge.


Dial Size mm	I	B	B1	B2	I	^D	^G	^P	AA
100	3.97 (086)	2.17 (055)	3.74 (095)	5.35 (136)	3.98 (101)	2.95 (075)	5.51 (140)	1.46 (037)	2.36 (060)	5.20 (132)
160	4.72 (120)	2.17 (055)	4.13 (105)	5.35 (136)	6.34 (161)	2.95 (075)	6.69 (170)	1.46 (037)	2.36 (060)	5.20 (132)
Type 5509 - Solid Front Design
100	3.97 (086)	2.76 (070)	4.37 (111)	5.35 (136)	3.98 (101)	2.95 (075)	5.51 (140)	1.46 (037)	2.36 (060)	5.20 (132)
160	4.72 (120)	2.76 (070)	4.76 (121)	5.35 (136)	6.34 (161)	2.95 (075)	6.69 (170)	1.46 (037)	2.36 (060)	5.20 (132)

Case Type 5509 4" (100mm) 6" (l60mm) Lower Connect

(1) Standard on liquid-filled gauges

(2) For ranges 5 psid and above

Wall mounting bracket Sealing surface

TO ORDER THIS 5509 PRESSURE

GAUGE

Select:

5509

02L

XXX

100 psi

1. Dial size-4", 6"-

2. Casetype-5509 -

3. 316 SS diaphragm -

4. 316 SS housing and socket

V4 NPTF (02) Lower (L) ■

5. Connection size and location -

6. Optional features -

7. Standard pressure range -100 psi

Case Type 5509

4"& 6" Lower Connect
