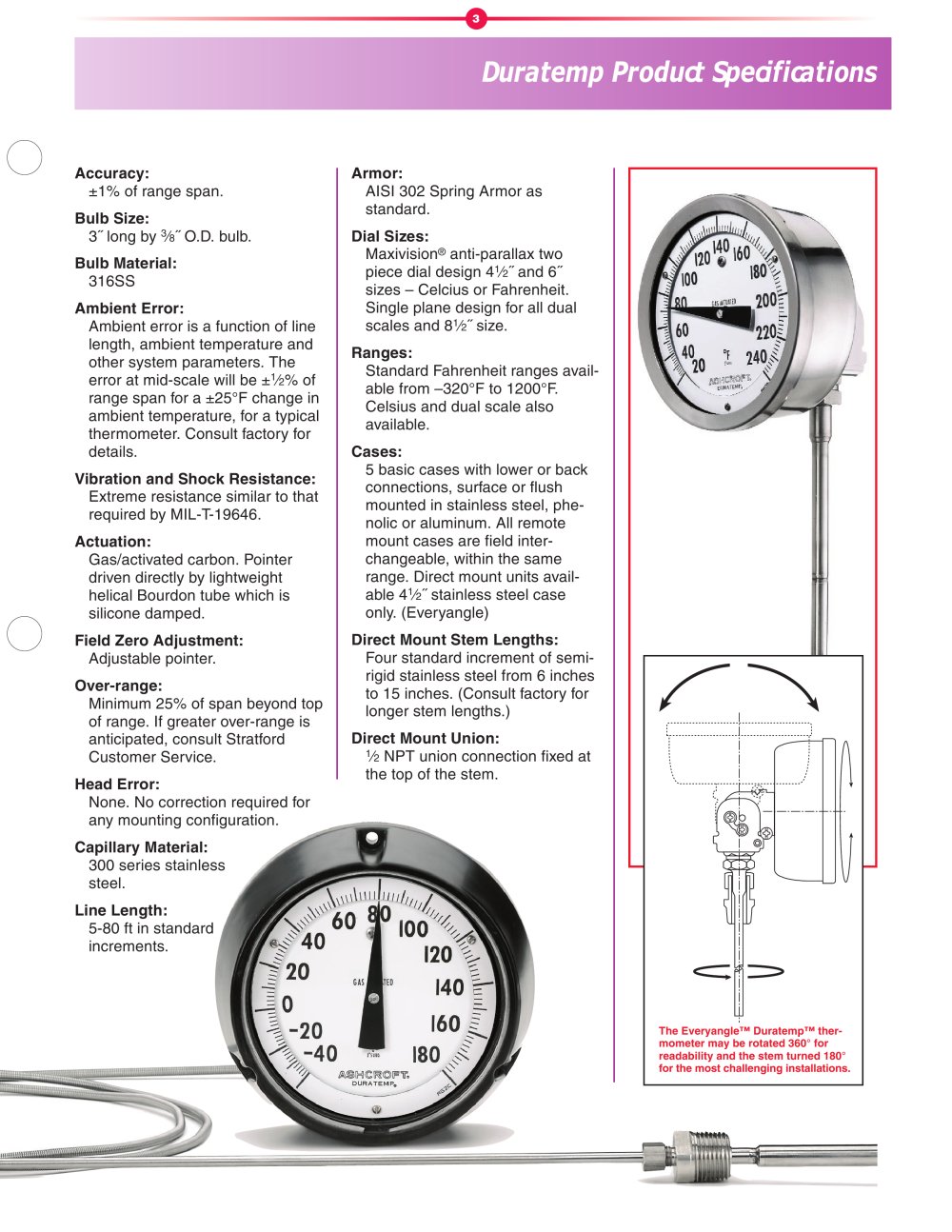

| | | Accuracy: ±1% of range span. 3" long by %" O.D. bulb. Bulb Material: 316SS Ambient Error: Ambient error is a function of line length, ambient temperature and other system parameters. The error at mid-scale will be ±1/2°/o of range span for a ±25°F change in ambient temperature, for a typical industrial thermometer. Consult factory for details. Vibration and Shock Resistance: Extreme resistance similar to that required by MIL-T-19646. Actuation: Gas/activated carbon. Pointer driven directly by lightweight helical Bourdon tube which is silicone damped. Field Zero Adjustment: Adjustable pointer. Over-range: Minimum 25% of span beyond top of range. If greater over-range is anticipated, consult Stratford Customer Service. Head Error: None. No correction required for any mounting configuration. Capillary Material: 300 series stainless steel. Line Length: 5-80 ft in standard increments. | | Armor: AISI 302 Spring Armor as standard. Dial Sizes: Maxivision® anti-parallax two piece dial design 4V2" and 6" sizes - Celcius or Fahrenheit. Single plane design for all dual industrial scales and 8V2" size. Ranges: Standard Fahrenheit ranges available from -320°F to 1200°F. Celsius and dual scale also available. Cases: 5 basic cases with lower or back connections, surface or flush mounted in stainless steel, phenolic or aluminum. All remote mount cases are field interchangeable, within the same range. Direct mount units available 4V2" stainless steel case only. (Everyangle) Direct Mount Stem Lengths: Four standard increment of semirigid stainless steel from 6 inches to 15 inches. (Consult factory for longer stem lengths.) Direct Mount Union: V2 NPT union connection fixed at the top of the stem. | | |
