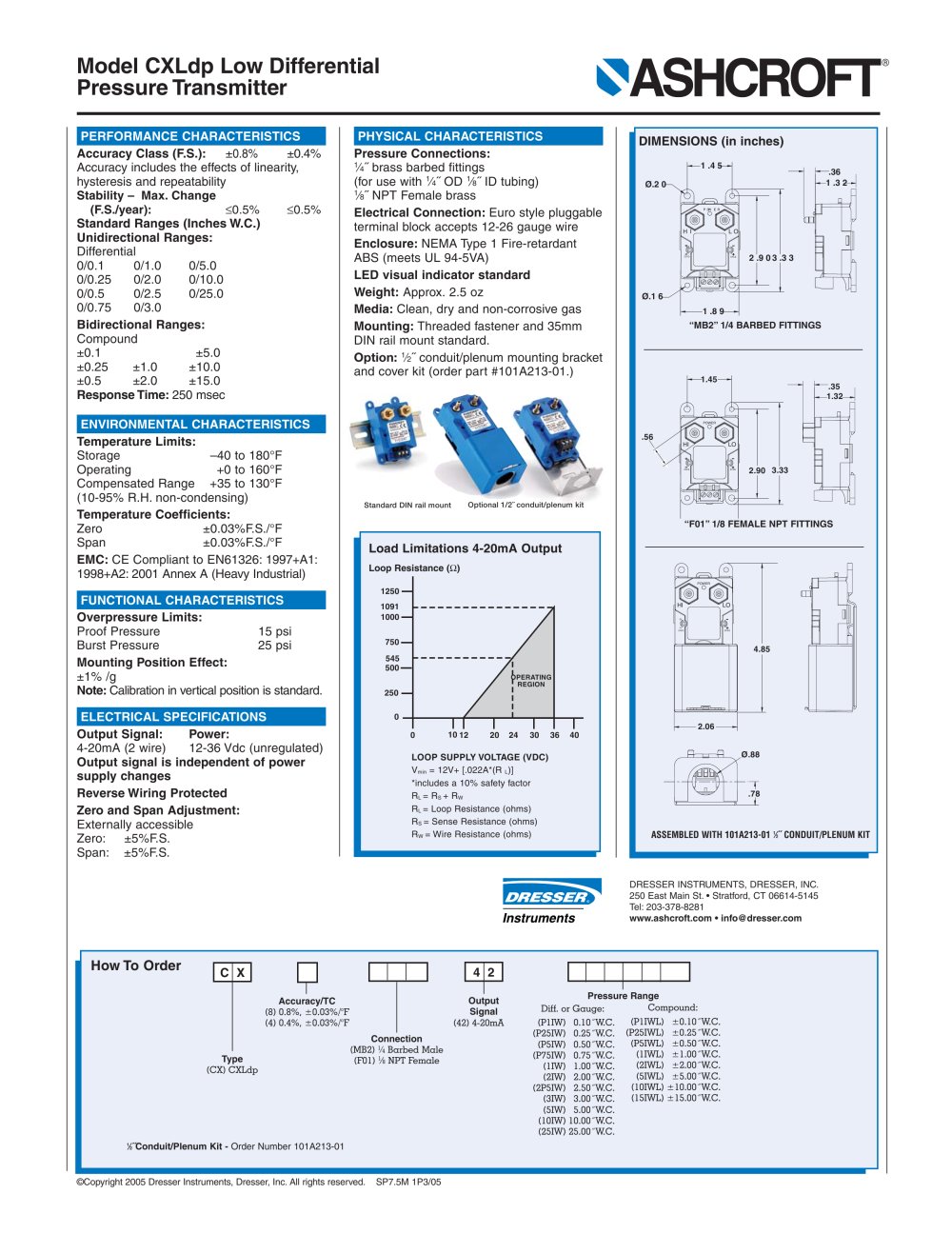

| | | Model CXLdp Low Differential Pressure Transmitter | | ^ASHCROFT | | |
| | | |
| | | |
| | | ORMANCE CHARACTERIS | | CHARACTERIS | | |
| | | PERF | | |
| | | DIMENSIONS (in inches) 0.2 0^ | | |
| | | |
| | | Accuracy Class (F.S.): ±0.8% ±0.4% Accuracy includes the effects of linearity, hysteresis and repeatability Stability - Max. Change (F.S./year): <0.5% <0.5% Standard Ranges (Inches W.C.) Unidirectional Ranges: Differential 0/0.1 0/1.0 0/5.0 0/0.25 0/2.0 0/10.0 0/0.5 0/2.5 0/25.0 0/0.75 0/3.0 Bidirectional Ranges: Compound ±0.1 ±5.0 ±0.25 ±1.0 ±10.0 ±0.5 ±2.0 ±15.0 Response Time: 250 msec | | Pressure Connections: V4" brass barbed fittings (for use with V4" OD V8" ID tubing) V8" NPT Female brass Electrical Connection: Euro style pluggable terminal block accepts 12-26 gauge wire Enclosure: NEMA Type 1 Fire-retardant ABS (meets UL 94-5VA) LED visual indicator standard Weight: Approx. 2.5 oz Media: Clean, dry and non-corrosive gas Mounting: Threaded fastener and 35mm DIN rail mount standard. Option: V2" conduit/plenum mounting bracket and cover kit (order part #101A213-01.) | | |
| | | —.36 -1.3 2- | | |
| | | |
| | | |
| | | IF | | |
| | | |
| | | ■-1.8 9— "MB2" 1/4 BARBED FITTINGS | | |
| | | |
| | | |
| | | .35 ^-1.32- | | |
| | | |
| | | |
| | | ENVIRONMENTAL CHARACTERISTICS | | |
| | | |
| | | Temperature Limits: Storage -40 to 180°F Operating +0 to 160°F Compensated Range +35 to 130°F (10-95% R.H. non-condensing) Temperature Coefficients: Zero ±0.03%F.S./°F Span ±0.03%F.S./°F EMC: CE Compliant to EN61326: 1997+A1: 1998+A2: 2001 Annex A (Heavy Industrial) | | |
| | | Standard DIN rail mount Optional 1/2" conduit/plenum kit | | |
| | | |
| | | "F01" 1/8 FEMALE NPT FITTINGS | | |
| | | |
| | | Load Limitations 4-20mA Output Loop Resistance (n) | | |
| | | |
| | | |
| | | 1250 | | |
| | | |
| | | FUNCTIONAL CHARACTERISTICS | | |
| | | 1091 1000 | | |
| | | |
| | | Overpressure Limits: Proof Pressure 15 psi Burst Pressure 25 psi Mounting Position Effect: ±1% /g Note: Calibration in vertical position is standard. | | |
| | | |
| | | 750 | | |
| | | |
| | | 4.85 | | |
| | | |
| | | 545 500 | | |
| | | |
| | | 250 | | |
| | | |
| | | |
| | | ELECTRICAL SPECIFICATIONS | | |
| | | 0 | | |
| | | i-\—rr 0 1012 20 24 30 36 40 LOOP SUPPLY VOLTAGE (VDC) Vm,n= 12V+ [.022A*(R l)] *includes a 10% safety factor Rl = Rs + Rw Rl = Loop Resistance (ohms) Rs = Sense Resistance (ohms) Rw = Wire Resistance (ohms) | | |
| | | |
| | | |
| | | -2.06— O^-^fl . ,0.88 | | |
| | | Output Signal: Power: 4-20mA (2 wire) 12-36 Vdc (unregulated) Output signal is independent of power supply changes Reverse Wiring Protected Zero and Span Adjustment: Externally accessible Zero: ±5%F.S. Span: ±5%F.S. | | |
| | | |
| | | .78 | | |
| | | |
| | | ASSEMBLED WITH 101A213-01 !TCONDUIT/PLENUM KIT | | |
| | | |
| | | |
| | | |
