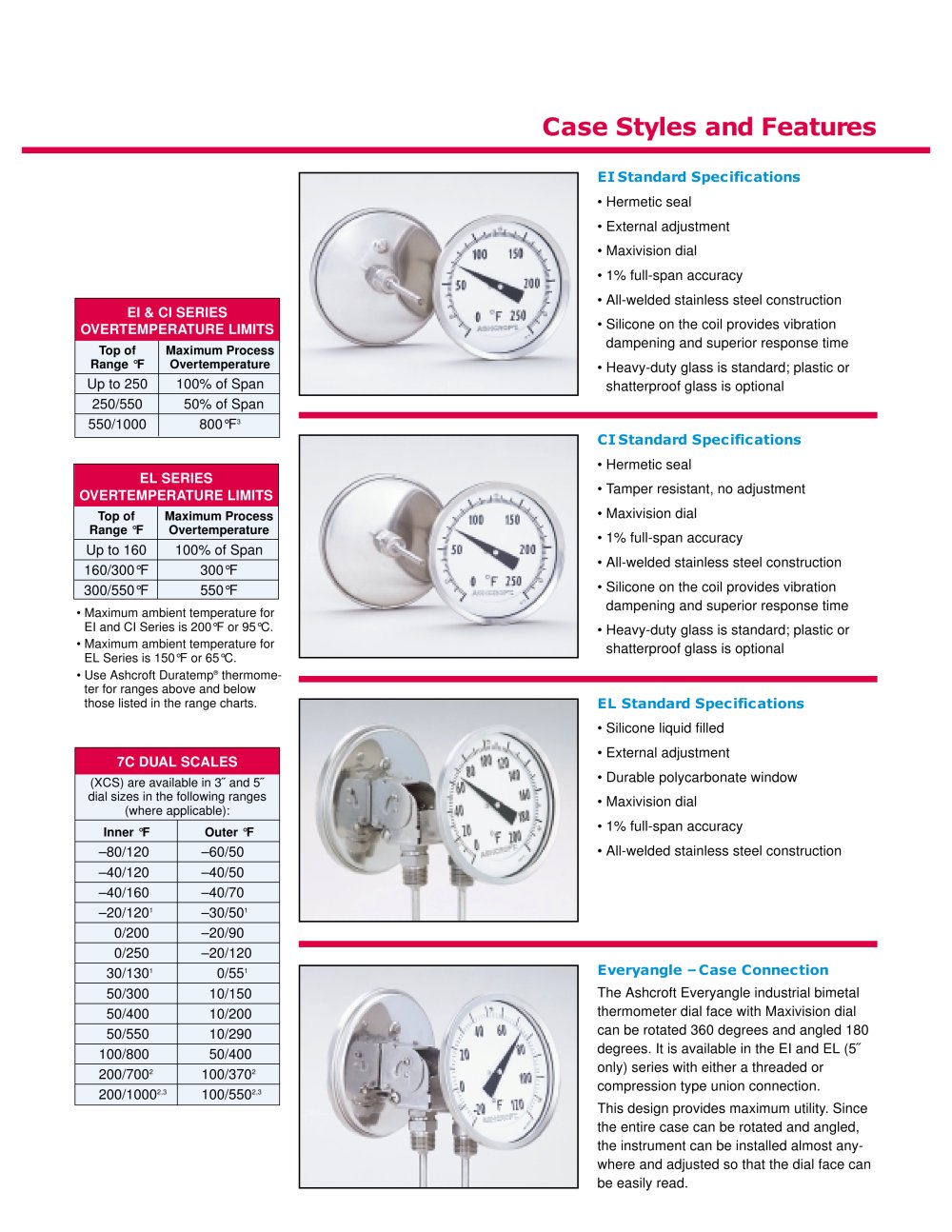

Case Styles and Features
EI Standard Specifications ? Hermetic
industrial seal
? External adjustment
? Maxivision dial
? 1% full-span accuracy
? All-welded stainless steel construction
? Silicone on the coil provides vibrationdampening and superior response time? Heavy-duty glass is standard; plastic orshatterproof glass is optional EI & CI SERIES OVERTEMPERATURE LIMITS
Top ofMaximum Process Range FOvertemperature Up to 250100% of Span 250/55050% of Span550/1000800F
3 CI Standard Specifications ? Hermetic seal
? Tamper resistant, no adjustment
? Maxivision dial
? 1% full-span accuracy
? All-welded stainless steel construction
? Silicone on the coil provides vibrationdampening and superior response time? Heavy-duty glass is standard; plastic orshatterproof glass is optional EL SERIES OVERTEMPERATURE LIMITS
Top ofMaximum Process Range FOvertemperature Up to 160100% of Span 160/300F300F300/550F550F
? Maximum ambient temperature forEI and CI Series is 200F or 95C.? Maximum ambient temperature forEL Series is 150F or 65C.? Use Ashcroft Duratemp thermome-ter for ranges above and below
those listed in the range charts. EL Standard Specifications ? Silicone liquid filled
? External adjustment
? Durable polycarbonate window
? Maxivision dial
? 1% full-span accuracy
? All-welded stainless steel construction 7C DUALSCALES
(XCS)are available in 3˝ and 5˝ dial sizes in the following ranges (where applicable): Inner FOuter F 80/12060/50 40/12040/50 40/16040/70 20/120
1 30/50
1 0/20020/90 0/25020/120 30/130
1 0/55
1 Everyangle Case Connection 50/30010/150 The Ashcroft Everyangle industrial bimetalthermometer dial face with Maxivision dial
can be rotated 360 degrees and angled 180
degrees. It is available in the EI and EL (5˝only) series with either a threaded orcompression type union connection.This design provides maximum utility. Sincethe entire case can be rotated and angled,the instrument can be installed almost any-where and adjusted so that the dial face can
be easily read. 50/40010/200 50/55010/290 100/80050/400 200/700
2 100/370
2 200/1000
2,3 100/550
2,3
