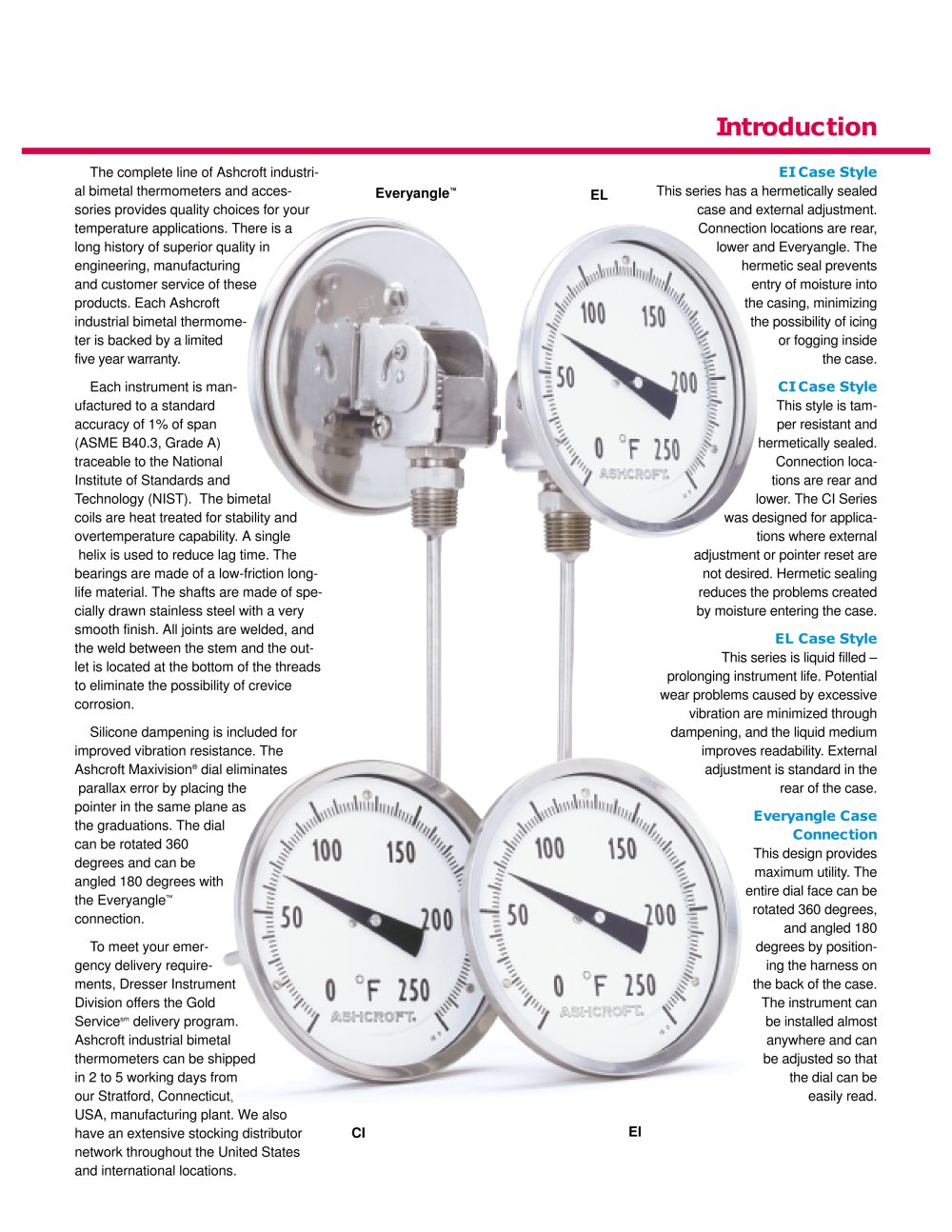

Introduction

The complete line of Ashcroft industri-al bimetal industrial thermometers and acces-sories provides quality choices for yourtemperature applications. There is a long history of superior quality inengineering, manufacturingand customer service of these products. Each Ashcroft industrial bimetal thermome-ter is backed by a limitedfive year warranty.Each instrument is man-ufactured to a standardaccuracy of 1% of span(ASME B40.3, Grade A) traceable to the NationalInstitute of Standards andTechnology (NIST).The bimetal coils are heat treated for stability and overtemperature capability. A singlehelix is used to reduce lag time. Thebearings are made of a low-friction long- life material. The shafts are made of spe-cially drawn stainless steel with a verysmooth finish. All joints are welded, and the weld between the stem and the out-let is located at the bottom of the threadsto eliminate the possibility of crevice corrosion.Silicone dampening is included forimproved vibration resistance. TheAshcroft Maxivision EICase Style
™ EL CIEI This series has a hermetically sealedcase and external adjustment.Connection locations are rear,lower and Everyangle. Thehermetic industrial seal preventsentry of moisture intothe casing, minimizingthe possibility of icingor fogging insidethe case. CICase Style This style is tam-per resistant andhermetically sealed.Connection loca-tions are rear andlower. The CI Serieswas designed for applica-tions where external adjustment or pointer reset are not desired. Hermetic sealing reduces the problems created by moisture entering the case. ELCase Style This series is liquid filled –prolonging instrument life. Potential wear problems caused by excessivevibration are minimized through dampening, and the liquid mediumimproves readability. External adjustment is standard in the rear of the case.
® dial eliminatesparallax error by placing thepointer in the same plane asthe graduations. The dial can be rotated 360degrees and can beangled 180 degrees with the Everyangle Everyangle CaseConnection This design providesmaximum utility. Theentire dial face can berotated 360 degrees,and angled 180degrees by position-ing the harness on the back of the case. The instrument can be installed almost anywhere and can be adjusted so that the dial can be easily read.
™ connection.To meet your emer-gency delivery require-ments, Dresser InstrumentDivision offers the Gold Service
sm delivery program.Ashcroft industrial bimetal thermometers can be shipped in 2 to 5 working days from our Stratford, Connecticut,USA, manufacturing plant. We also have an extensive stocking distributor network throughout the United States and international locations.
