Temperature controller 1/16 DIN - 48 x 48 mm
4Pages

{{requestButtons}}

Catalog excerpts

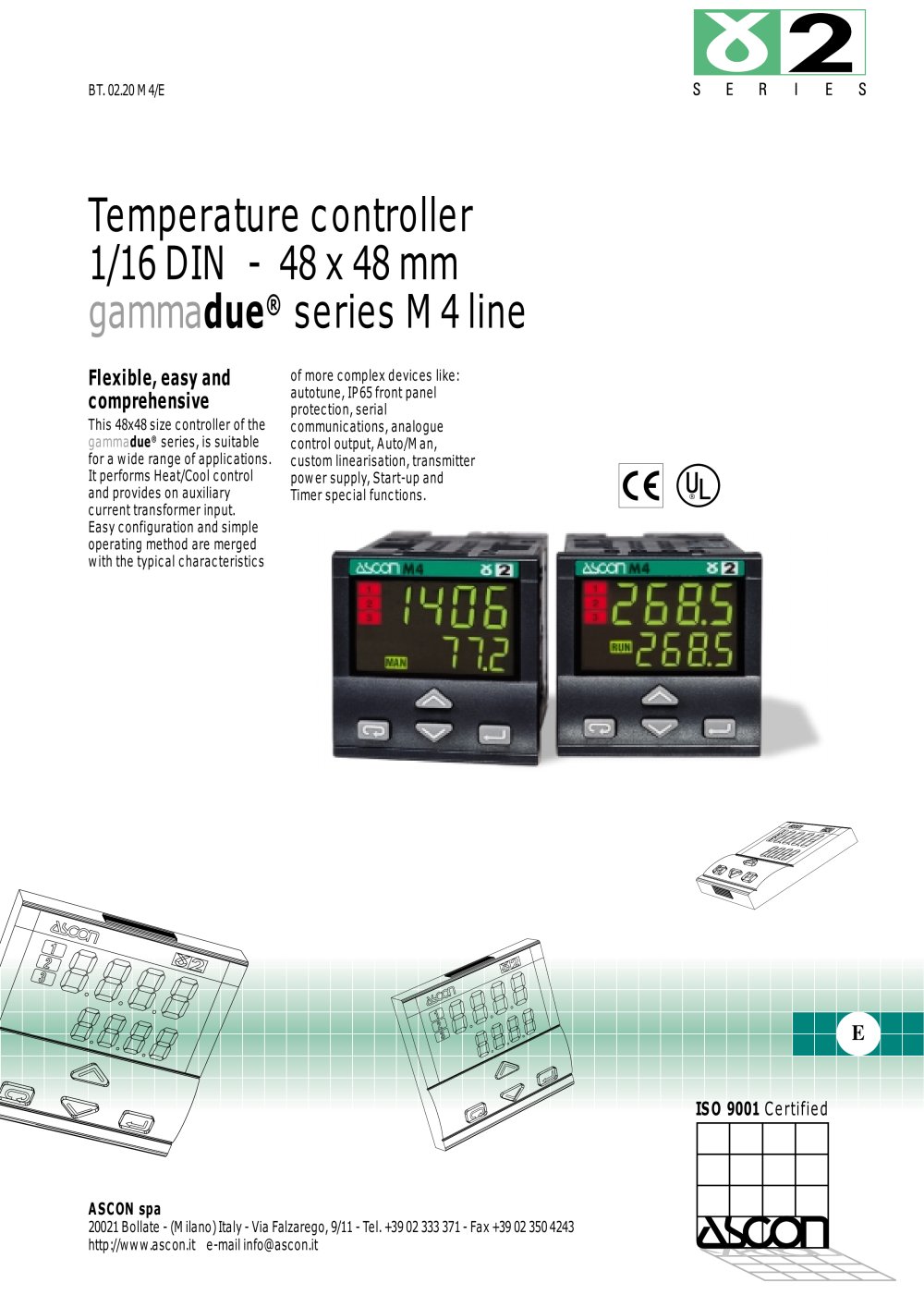

Temperature controller 1/16 DIN - 48 x 48 mm - 1

BT. 02.20 M4/E Flexible, easy and comprehensive This 48x48 size controller of the gammadue® series, is suitable for a wide range of applications. It performs Heat/Cool control and provides on auxiliary current transformer input. Easy configuration and simple operating method are merged with the typical characteristics of more complex devices like: autotune, IP65 front panel protection, serial communications, analogue control output, Auto/Man, custom linearisation, transmitter power supply, Start-up and Timer special functions. E ASCON spa 20021 Bollate - (Milano) Italy - Via Falzarego, 9/11 - Tel. +39 02 333 371 - Fax +39 02 350 4243 http://www.ascon.it e-mail info@ascon.it ISO 9001 Certified Temperature controller 1/16 DIN - 48 x 48 mm gammadue® series M4 line

Open the catalog to page 1
Temperature controller 1/16 DIN - 48 x 48 mm - 2

2 Heater break alarm with current transformer Heat/Cool double action Configuration by simple to use codes Automatic selection between two different tuning methods Absolute, band and deviation alarms, Latching/Blocking Serial communications at 9600 baud Modbus/Jbus protocol, analogue retransmission output Every model has the same operating method Two colours: beige or darkgrey front panels IP65 front panel protection (indoor, dust and water protection) Ergonomic keypad, clear and comprehensive display Electromagnetic compatibility Configurable input (TC, RTD, mA, Volt and ÄT, infrared...

Open the catalog to page 2
Temperature controller 1/16 DIN - 48 x 48 mm - 3

From keypad or serial communications, the user selects: type of input - associated functions and corresponding outputs - type of control algorithm - type of output and safe conditions - alarm types and functionallity - control parameter values A/D converter with 50.000 points Update measurement time : 0.2 sec Sampling time : 0.5 sec Input shift : + 60 digits Input filter : 1...30 sec (OFF= 0) 0.25% ± 1 digit (T/C and RTD) 0.1% ± 1 digit (mA and mV) Pt100Ù at 0°C (IEC 751) °C /°F selectable L,J,T,K,S (IEC 584) °C /°F selectable 0/4..20mA with 2.5Ù ext. Shunt Rj > 10MÙ 0/10…50mV, Rj >10MÙ 50...

Open the catalog to page 3
Temperature controller 1/16 DIN - 48 x 48 mm - 4

RS 485 isolated, Modbus/Jbus protocol 1200, 2400, 4800, 9600 bit/sec, two wires (opt.) +18V– ±20%, 30mA max for external transmitter supply Detection of out of range, short circuit or sensor break with automatic activation of the safety strategies and alerts on display Safety value: 0…100%. (-100...100% for Heat/Cool mode) (user enabled/disabled). A non volatile memory stores for unlimited time all the parameter and configuration values A password protects the access to the instrument configuration parameterisation 100-240V~ (-15% +10%) 50/60Hz or 24V~(-25% +12%), 50/60Hz and 24V– (-15%...

Open the catalog to page 4
