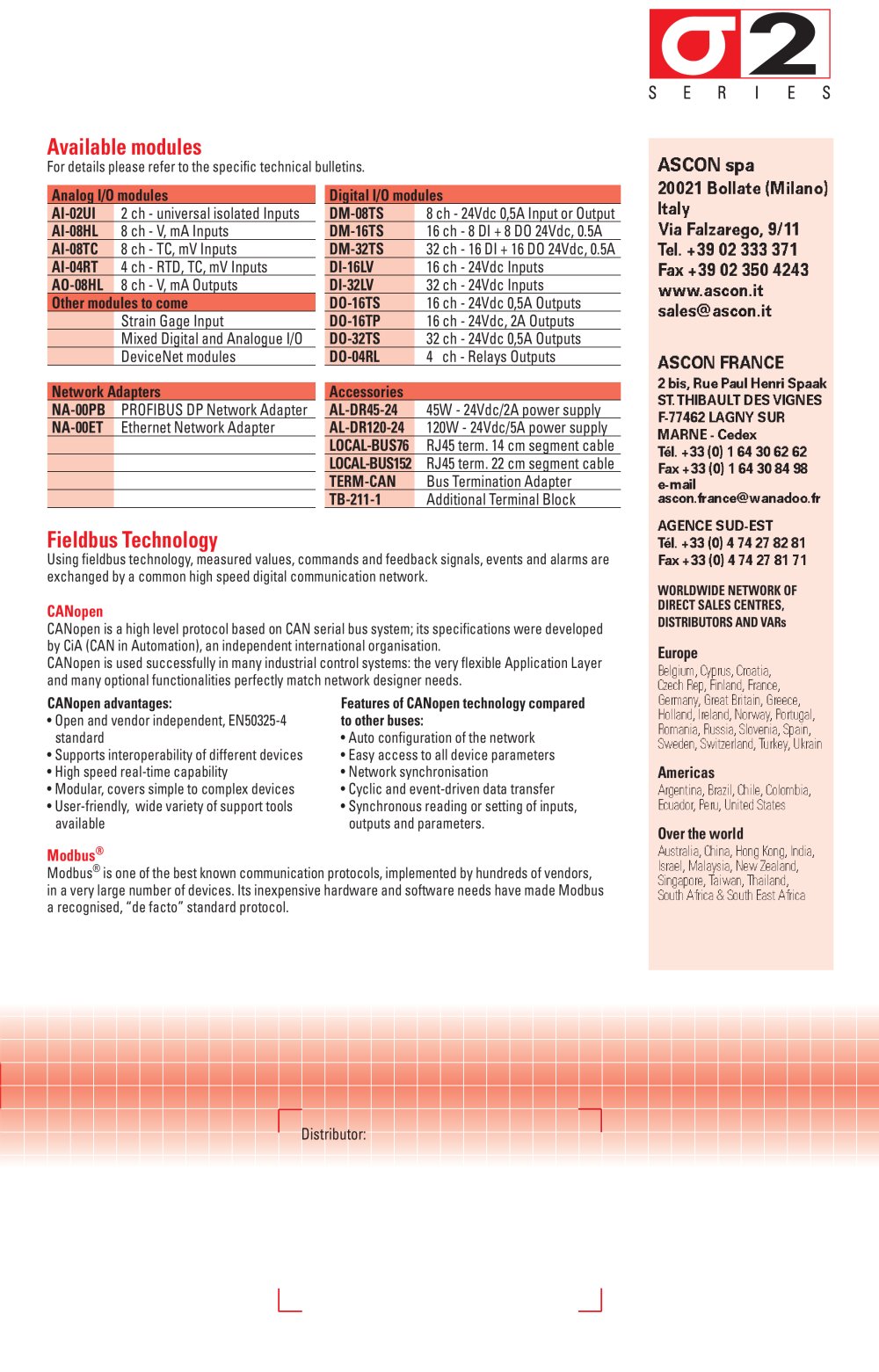

Available modules

For details please refer to the specific technical bulletins.

ASCON spa

20021 Bollate (Milano)

Italy

Via Falzarego, 9/11 Tel. +39 02 333 371 Fax +39 02 350 4243 www.ascon.it sales@ascon.it


Analog I/O	modules	Digital I/O modules
AI-02UI	2 ch - universal isolated Inputs	DM-08TS	8 ch - 24Vdc 0,5A Input or Output
AI-08HL	8 ch - V, mA Inputs	DM-16TS	16 ch - 8 DI + 8 DO 24Vdc, 0.5A
AI-08TC	8 ch - TC, mV Inputs	DM-32TS	32 ch - 16 DI + 16 DO 24Vdc, 0.5A
AI-04RT	4 ch - RTD, TC, mV Inputs	DI-16LV	16 ch - 24Vdc Inputs
AO-08HL	8 ch - V, mA Outputs	DI-32LV	32 ch - 24Vdc Inputs
Other modules to come		DO-16TS	16 ch - 24Vdc 0,5A Outputs
	Strain Gaqe Input	DO-16TP	16 ch - 24Vdc, 2A Outputs
	Mixed Diqital and Analoque I/O	DO-32TS	32 ch - 24Vdc 0,5A Outputs
	DeviceNet modules	DO-04RL	4 ch - Relays Outputs

Network Adapters		Accessories
NA-00PB	PROFIBUS DP Network Adapter	AL-DR45-24	45W - 24Vdc/2A power supply
NA-00ET	Ethernet Network Adapter	AL-DR120-24	120W - 24Vdc/5A power supply
		LOCAL-BUS76	RJ45 term. 14 cm seqment cable
		LOCAL-BUS152	RJ45 term. 22 cm seqment cable
		TERM-CAN	Bus Termination Adapter
		TB-211-1	Additional Terminal Block

ASCON FRANCE

2 bis. Rue Paul Henri Spaak

ST. THIBAULT DES VIGNES

F-77462 LAGIW SUR

MARNE - Cedex

Tél. 4-33 (0) 1 64 30 62 62

Fax +33 (0)1 64 3084 98

e-mail

ascon.france@wanadoo.fr

AGENCE SUD-EST Tél. +33(0)4 74 27 82 81 Fax +33 (0) 4 74 27 81 71

WORLDWIDE NETWORK OF DIRECT SALES CENTRES, DISTRIBUTORS AND VARs

Europe

Belgium, Cyprus, Croatia, Czech Rep, Finland, France, Germany, Great Britain, Greece, Holland, Ireland, Norway, Portugal, Romania, Russia, Slovenia, Spain, Sweden, Switzerland, Turkey, Ukrain

Americas

Argentina, Brazil, Chile, Colombia, Ecuador, Peru, United States

Over the world

Australia, China, Hong Kong, India, Israel, Malaysia, New Zealand, Singapore, Taiwan, Thailand, South Africa & South East Africa

Fieldbus Technology

Using fieldbus technology, measured values, commands and feedback signals, events and alarms are exchanged by a common high speed diqital communication network.

CANopen

CANopen is a high level protocol based on CAN serial bus system; its specifications were developed by CiA (CAN in Automation), an independent international organisation.

CANopen is used successfully in many industrial control systems: the very flexible Application Layer and many optional functionalities perfectly match network designer needs.

CANopen advantages:

• Open and vendor independent, EN50325-4 standard

• Supports interoperability of different devices

• High speed real-time capability

• Modular, covers simple to complex devices

• User-friendly, wide variety of support tools available

Features of CANopen technology compared to other buses:

• Auto configuration of the network

• Easy access to all device parameters

• Network synchronisation

• Cyclic and event-driven data transfer

• Synchronous reading or setting of inputs, outputs and parameters.

Modbus®

Modbus® is one of the best known communication protocols, implemented by hundreds of vendors, in a very large number of devices. Its inexpensive hardware and software needs have made Modbus a recognised, "de facto" standard protocol.

n;^;k..+A«.
