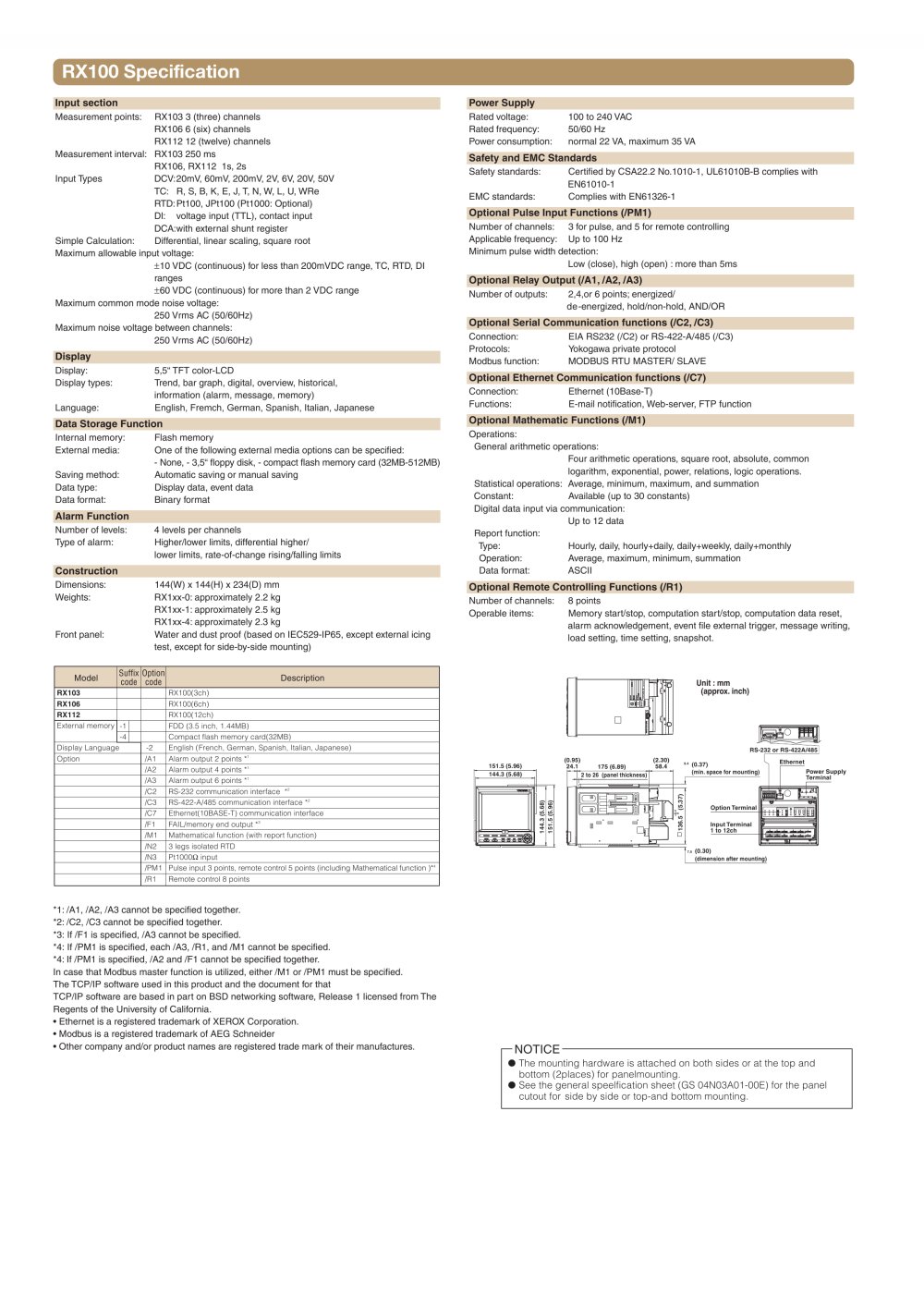

RX100 Specification


	Input section
	Measurement points:	RX103 3 (three) channels
		RX106 6 (six) channels
		RX112 12 (twelve) channels
	Measurement interval:	RX103 250 ms
		RX106, RX112 1s, 2s
	Input Types	DCV:20mV, 60mV, 200mV, 2V, 6V, 20V, 50V
		TC: R, S, B, K, E, J, T, N, W, L, U, WRe
		RTD:Pt100, JPt100 (Pt1000: Optional)
		DI: voltage input (TTL), contact input
		DCA:with external shunt register
	Simple Calculation:	Differential, linear scaling, square root
	Maximum allowable input voltage:
		±10 VDC (continuous) for less than 200mVDC range, TC, RTD, DI
		ranges
		±60 VDC (continuous) for more than 2 VDC range
	Maximum common mode noise voltage:
		250 Vrms AC (50/60Hz)
	Maximum noise voltage between channels:
		250 Vrms AC (50/60Hz)
	Display
	Display:	5,5" TFT color-LCD
	Display types:	Trend, bar graph, digital, overview, historical,
		information (alarm, message, memory)
	Language:	English, Fremch, German, Spanish, Italian, Japanese
	Data Storage Function
	Internal memory:	Flash memory
	External media:	One of the following external media options can be specified:
		- None, - 3,5" floppy disk, - compact flash memory card (32MB-512MB)
	Saving method:	Automatic saving or manual saving
	Data type:	Display data, event data
	Data format:	Binary format
	Alarm Function
	Number of levels:	4 levels per channels
	Type of alarm:	Higher/lower limits, differential higher/
		lower limits, rate-of-change rising/falling limits
	Construction
	Dimensions:	144(W) x 144(H) x 234(D) mm
	Weights:	RX1xx-0: approximately 2.2 kg
		RX1xx-1: approximately 2.5 kg
		RX1xx-4: approximately 2.3 kg
	Front panel:	Water and dust proof (based on IEC529-IP65, except external icing

Power Supply

Rated voltage: 100 to 240 VAC

Rated frequency: 50/60 Hz

Power consumption: normal 22 VA, maximum 35 VA

Safety and EMC Standards

Safety standards: Certified by CSA22.2 No.1010-1, UL61010B-B complies with EN61010-1

EMC standards: Complies with EN61326-1

Optional Pulse Input Functions (/PM1)

Number of channels: 3 for pulse, and 5 for remote controlling Applicable frequency: Up to 100 Hz Minimum pulse width detection:

Low (close), high (open) : more than 5ms

Optional Relay Output (/A1, /A2, /A3)

Number of outputs: 2,4,or 6 points; energized/

de-energized, hold/non-hold, AND/OR

Optional Serial Communication functions (/C2, /C3)

Connection: EIA RS232 (/C2) or RS-422-A/485 (/C3)

Protocols: Yokogawa private protocol

Modbus function: MODBUS RTU MASTER/ SLAVE

Optional Ethernet Communication functions (/C7)

Connection: Ethernet (10Base-T)

Functions: E-mail notification, Web-server, FTP function

Optional Mathematic Functions (/M1)

Operations:

General arithmetic operations:

Four arithmetic operations, square root, absolute, common logarithm, exponential, power, relations, logic operations.

Statistical operations: Average, minimum, maximum, and summation

Constant: Available (up to 30 constants)

Digital data input via communication:

Up to 12 data

Report function:

Type: Hourly daily, hourly+daily, daily+weekly, daily+monthly

Operation: Average, maximum, minimum, summation

Data format: ASCII

Optional Remote Controlling Functions (/R1)

Number of channels: 8 points

Operable items: Memory start/stop, computation start/stop, computation data reset,

alarm acknowledgement, event file external trigger, message writing, load setting, time setting, snapshot.

test, except for side-by-side mounting)


Model	Suffix code	Option code	Description
RX103			RX100(3ch)
RX106			RX100(6ch)
RX112			RX100(12ch)
External memory	-1		FDD (3.5 Inch, 1.44MB)
External memory	-4		Compact flash memory card(32MB)
Display Language		-2	English (French, German, Spanish, Italian, Japanese)
Option		/A1	Alarm output 2 points *
		/A2	Alarm output 4 points *
		/A3	Alarm output 6 points *
		/C2	RS-232 communication interface *²
		/C3	RS-422-A/485 communication interface *²
		/C7	Ethernet(10BASE-T) communication interface
		/F1	FAIL/memory end output *³
		/M1	Mathematical function (with report function)
		/N2	3 legs isolated RTD
		/N3	Pt1000D input
		/PM1	Pulse input 3 points, remote control 5 points (including Mathematical function )*⁴
		/R1	Remote control 8 points

lit (0.30)

I (dimension after mounting)

*1: /A1, /A2, /A3 cannot be specified together.

*2: /C2, /C3 cannot be specified together.

*3: If /F1 is specified, /A3 cannot be specified.

*4: If /PM1 is specified, each /A3, /R1, and /M1 cannot be specified.

*4: If /PM1 is specified, /A2 and /F1 cannot be specified together.

In case that Modbus master function is utilized, either /M1 or /PM1 must be specified.

The TCP/IP software used in this product and the document for that

TCP/IP software are based in part on BSD networking software, Release 1 licensed from The Regents of the University of California.

• Ethernet is a registered trademark of XEROX Corporation.

• Modbus is a registered trademark of AEG Schneider

• Other company and/or product names are registered trade mark of their manufactures.

- NOTICE-

• The mounting hardware is attached on both sides or at the top and bottom (2places) for panelmounting.

• See the general speelfication sheet (GS 04N03A01-00E) for the panel cutout for side by side or top-and bottom mounting.
