B.T. 07.10 OP/E

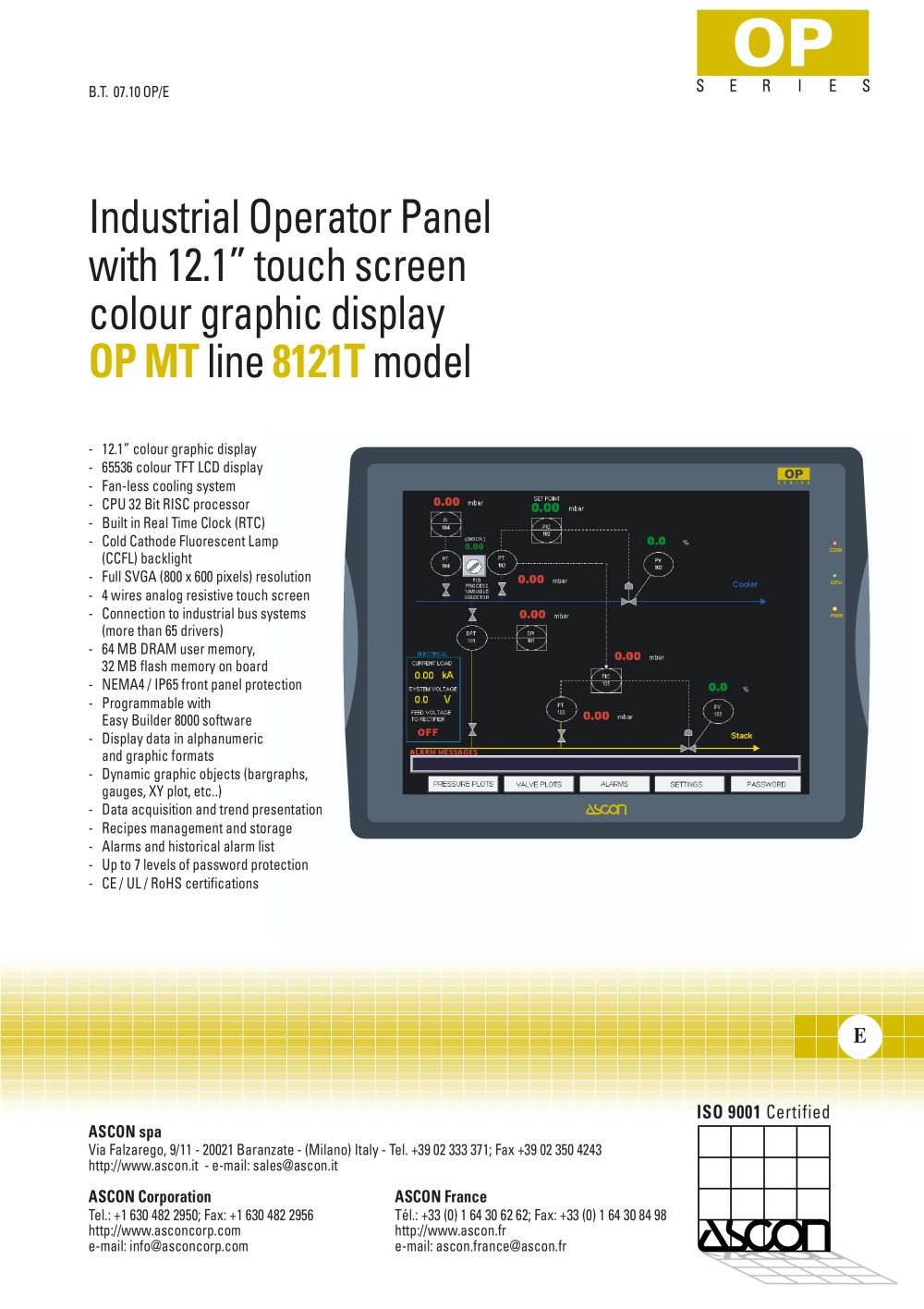

Industrial operator panel - 6014 OP

OP MT line 8121T model Industrial Operator Panelwith 12.1” touch screen colour graphic display

- 12.1” colo u r graphic display- 65536 colo u r TFT LCD display-Fan-less cooling system -CPU 32 Bit RISC processor -Built in Real Time Clock (RTC) -Cold Cathode Fluorescent Lamp (CCFL) backlight-Full SVGA (800 x 600 pixels) resolution -4 wires analog resistive touch screen -Connection to industrial bus systems (more than 65 drivers)-64 MB DRAM user memory, 32 MB flash memory on board-NEMA4 / IP65 front panel protection -Programmable with Easy Builder 8000 software-Display data in alphanumeric and graphic formats-Dynamic graphic objects (bargraphs, gauges, XY plot, etc..)-Data acquisition and trend presentation -Recipes management and storage -Alarms and historical alarm list -Up to 7 levels of password protection -CE / UL / RoHS certifications

E

ISO 9001 Certified
