Heat-Cool temperature controller 1/8 DIN - 48 x 96 mm - 1

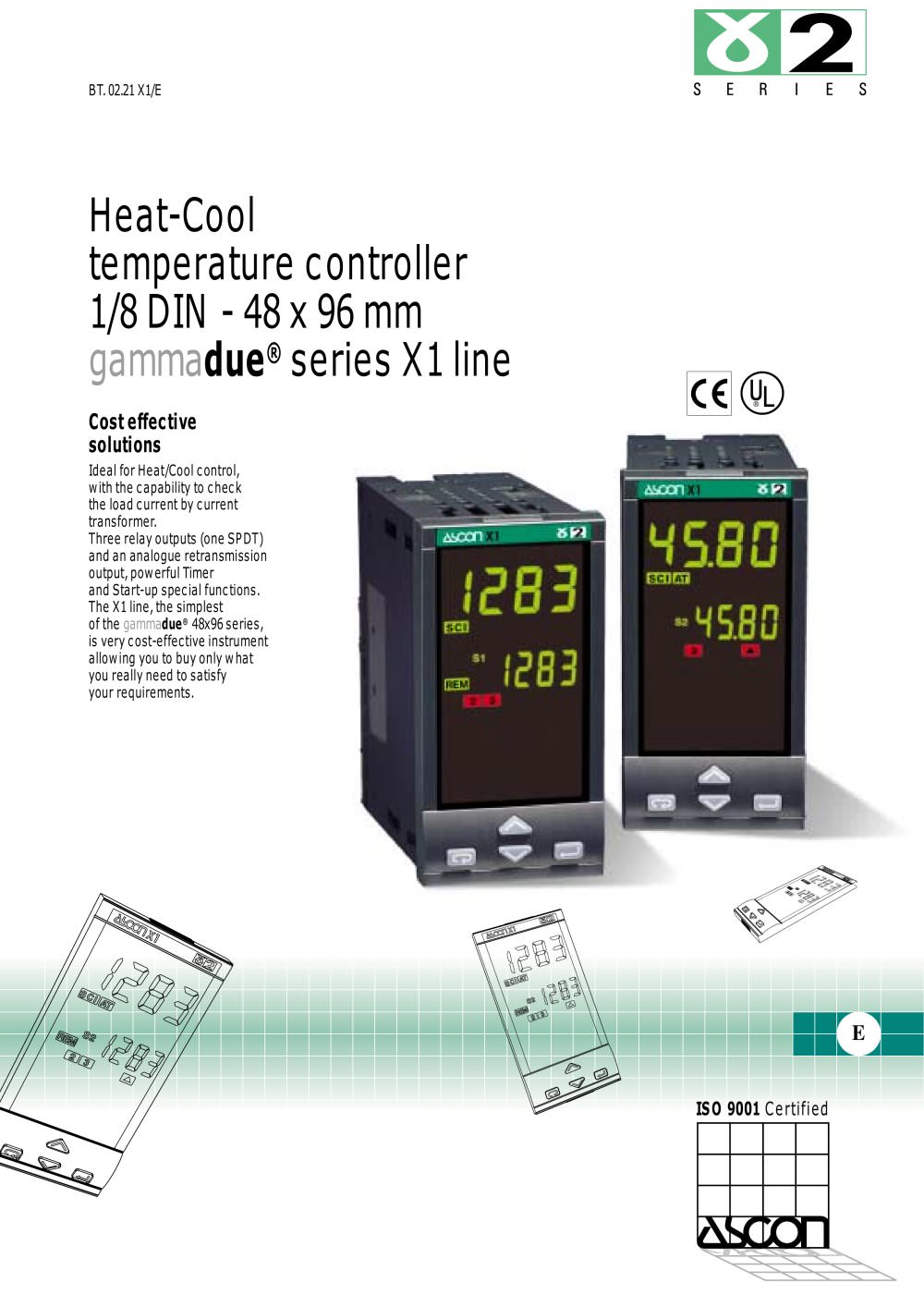

BT. 02.21 X1/E Heat-Cool temperature controller 1/8 DIN - 48 x 96 mm gammadue® series X1 line Cost effective solutions Ideal for Heat/Cool control, with the capability to check the load current by current transformer. Three relay outputs (one SPDT) and an analogue retransmission output, powerful Timer and Start-up special functions. The X1 line, the simplest of the gammadue® 48x96 series, is very cost-effective instrument allowing you to buy only what you really need to satisfy your requirements. E ISO 9001 Certified

Open the catalog to page 1
Heat-Cool temperature controller 1/8 DIN - 48 x 96 mm - 2

the right solution to your needs gammadue® 2 Heaters failure Both heating and cooling functions with different medium Easy replacement and quick start-up Correct tuning for any condition Alarm signalling Interfacing with other devices Frequent Setpoint change Quick learning Ergonomic compatibility with other devices Environmental protection Easy to use Noise immunity Universal input signals, linear as well as non-linear Costs reduction Reliability and safety Technical support Your needs Our solutions Heater break alarm with current transformer Heat/Cool (linear, water, oil) double action...

Open the catalog to page 2
Heat-Cool temperature controller 1/8 DIN - 48 x 96 mm - 3

3 Features at env. 25°C Description Input type Scale range -99.9…300.0 °C -99.9…572.0 °F -200…600 °C -328…1112 °F 0…600 °C 32…1112 °F 0…600 °C 32…1112 °F -200…400 °C -328…752 °F 0…1200 °C 32…2192 °F 0…1600 °C 32…2912 °F 0…1600 °C 32…2912 °F 0…1800 °C 32…3272 °F 0…1200 °C 32…2192 °F 0…600 °C 32…1112 °F 0…1100 °C 32…2012 °F 0…2000 °C 32…3632 °F 0…2000 °C 32…3632 °F Configurable engineering units mA, mV, V, bar, psi, Rh, ph On request RTD Pt100 IEC751 RTD Pt100 IEC751 TC L Fe-Const DIN43710 TC J Fe-CU45% NI IEC584 TC T Cu-CuNi TC K Cromel- Alumel IEC584 TC S Pt10% Rh-Pt IEC584 TC R Pt13% Rh Pt...

Open the catalog to page 3
Heat-Cool temperature controller 1/8 DIN - 48 x 96 mm - 4

4 Features at env. 25°C Technical data OP5 (option) analogue output AL1- AL2 - AL3 alarms Setpoint Special functions (options) One-shot Fuzzy-Tuning Serial comm.s (option) Auxiliary power supply Operational safety General characteristics Galvanically isolated: PV/SP 500V~ /1min retransmission Resolution: 12 bit In current: 0/4…20mA, 750Ù /15V max Accuracy: 0.1% Hysteresis 0.1…10.0% Active high Deviation threshold ± range Active low Action Band threshold 0…range type Absolute threshold, whole range Action Sensor break, Heater break and Loop break detection Special Acknowledge (latching),...

Open the catalog to page 4
Heat-Cool temperature controller 1/8 DIN - 48 x 96 mm - 5

If not differently specified the controller will be supplied with standard version Model: X1 3100-0000 Setpoint Alarm AL3 Alarm AL2 Alarm AL1 Output type Control mode Input Power supply Outputs Serial comm.s Options Special functions Instr. handbook Colour Line Basic model Accessories Configuration 1st part 2nd part Model: _ / _ • • • • • • • • • • • • • • • X1 A B C D E F G 0 I L M N O P Q R Ordering codes Power supply 100-240V~ (-15% +10%) 24V~ (-25% +12%) or 24V– (-15% +25%) OP1-OP2 outputs Relay-Relay Triac-Triac Serial communications Not fitted RS 485 Modbus/Jbus SLAVE Options None...

Open the catalog to page 5
Heat-Cool temperature controller 1/8 DIN - 48 x 96 mm - 6

ASCON spa 20021 Bollate (Milano) Italy Via Falzarego, 9/11 Tel. +39 02 333 371 Fax +39 02 350 4243 http://www.ascon.it e-mail info@ascon.it ASCON FRANCE 2 bis, Rue Paul Henri Spaak ST. THIBAULT DES VIGNES F-77462 LAGNY SUR MARNE - Cedex Tél. +33 (0) 1 64 30 62 62 Fax +33 (0) 1 64 30 84 98 e-mail ascon.france@wanadoo.fr AGENCE SUD-EST Tél. +33 (0) 4 74 27 82 81 Fax +33 (0) 4 74 27 81 71 WORLDWIDE NETWORK OF DIRECT SALES CENTRES, DISTRIBUTORS AND VARs Europe Belgium, Cyprus, Croatia, Czech Rep, Finland, France, Germany, Great Britain, Greece, Holland, Ireland, Norway, Poland, Portugal,...
