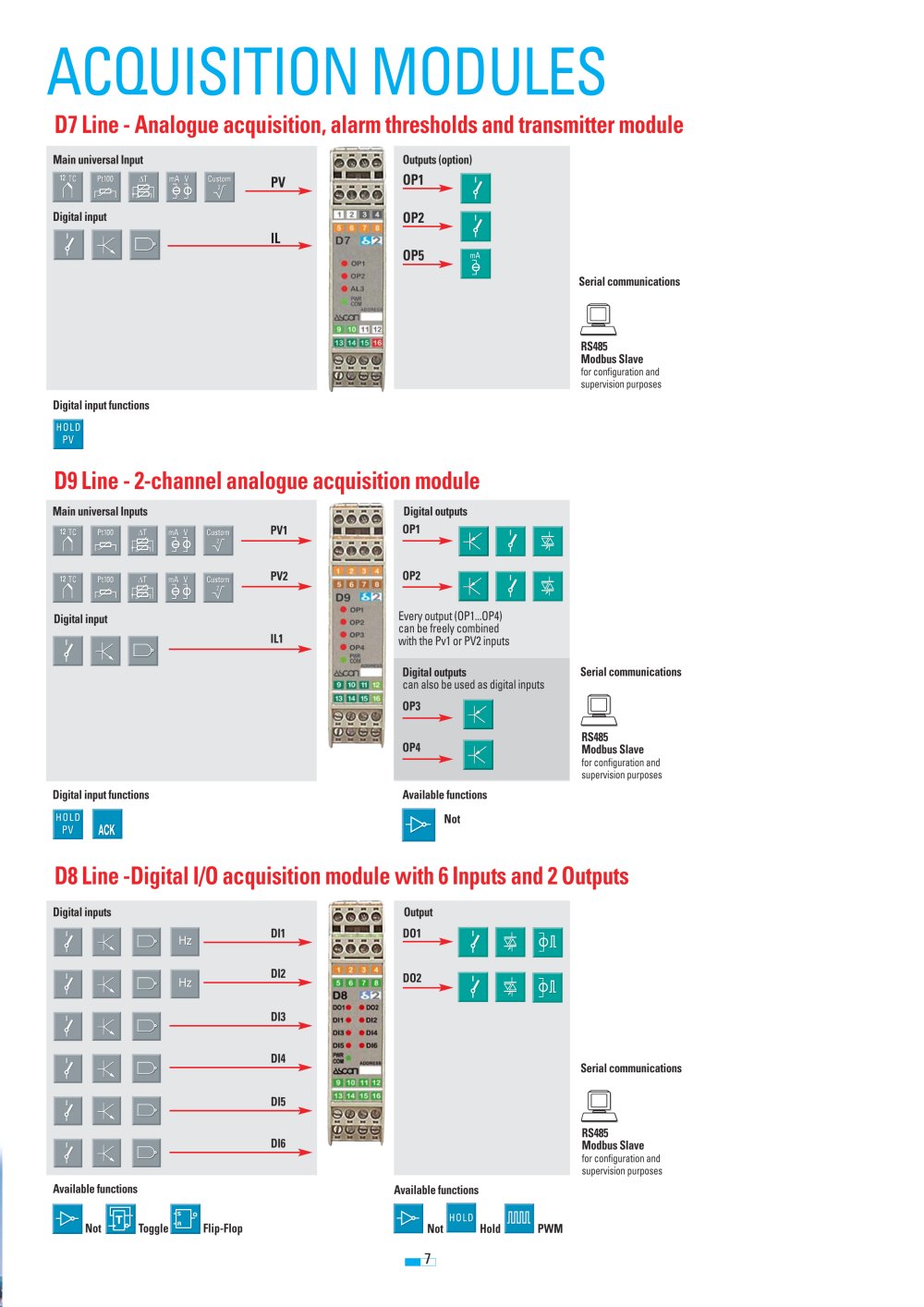

ACQUISITION MODULES

D7 Line - Analogue acquisition, alarm thresholds and transmitter module

1212

PV

Digital inputMain universal InputOutputs (option) Digital input functions

OP2 ILOP1 OP5

Serial communications RS485Modbus Slave
for configuration andsupervision purposes

D9 Line - 2-channel analogue acquisition module

Main universal Inputs
1212 PV1OP1OP2
1212 PV2 Digital inputOP3OP4 Digital outputs Digital outputs Every output (OP1...OP4)can be freely combined with the Pv1 or PV2 inputs IL1 Serial communications can also be used as digital inputs RS485Modbus Slave
for configuration andsupervision purposes Digital input functions Available functionsNot

D8 Line -Digital I/O acquisition module with 6 Inputs and 2 Outputs

Digital inputsOutput DI1 DO1DO2 DI2 DI3 DI4 Serial communications DI5 RS485Modbus Slave DI6Available functions
for configuration andsupervision purposes Available functionsPWMHoldNot Not Toggle Flip-Flop
