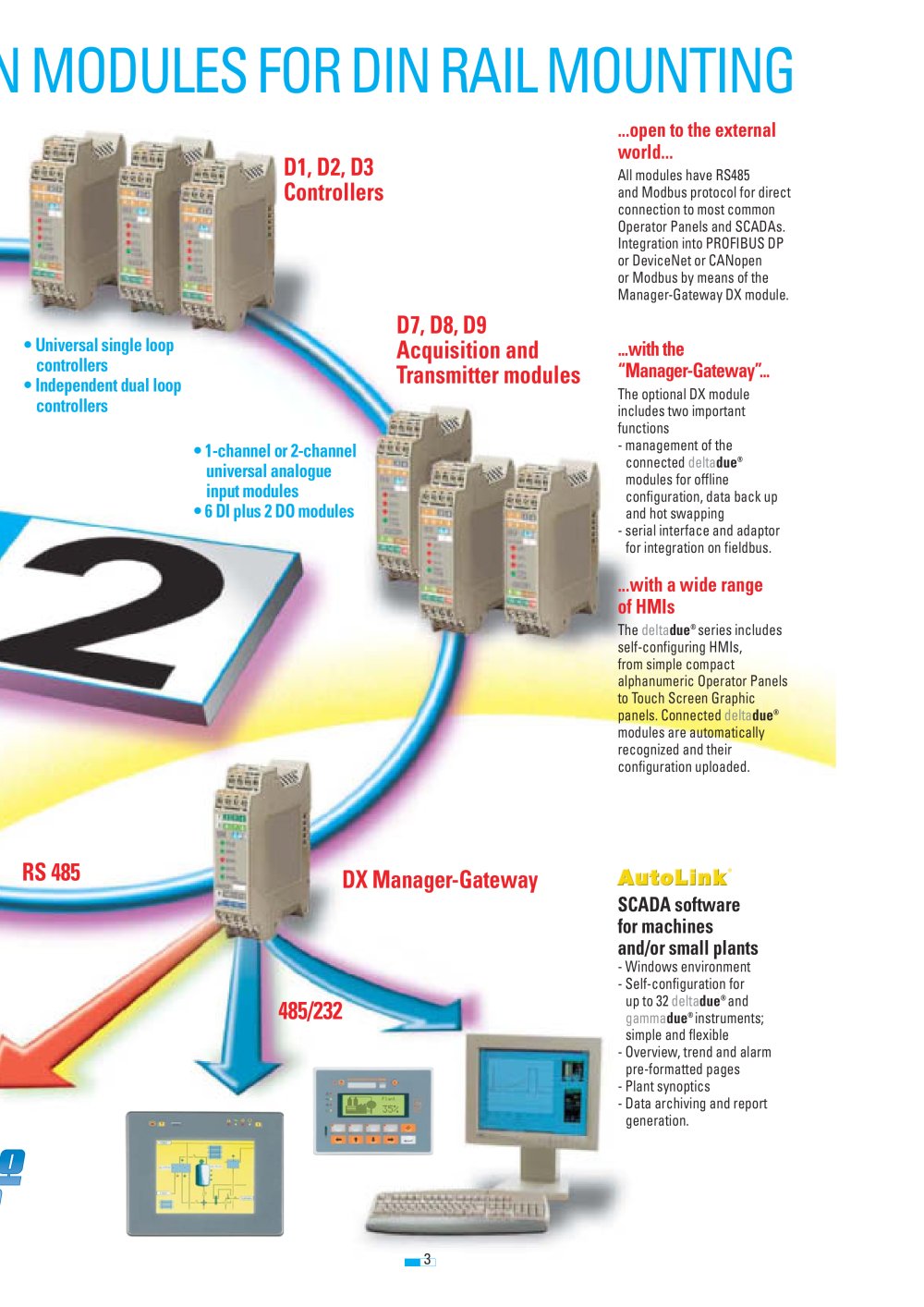

N MODULES FOR DIN RAIL MOUNTING

...open to the externalworld...

D1, D2, D3ControllersD7, D8, D9Acquisition and Transmitter modules DX Manager-GatewayRS 485485/232

All modules have RS485 and Modbus protocol for direct connection to most common Operator Panels and SCADAs. Integration into PROFIBUS DP or DeviceNet or CANopen or Modbus by means of the Manager-Gateway DX module.

• Universal single loopcontrollers

...with the “Manager-Gateway”...

• Independent dual loopcontrollers

The optional DX moduleincludes two important functions - management of theconnecteddelta due

• 1-channel or 2-channeluniversal analogue input modules

® modules for offlineconfiguration, data back up and hot swapping- serial interface and adaptorfor integration on fieldbus.

• 6 DI plus 2 DO modules

...with a wide range of HMIs

due Thedelta due
® series includesself-configuring HMIs, from simple compact alphanumeric Operator Panels to Touch Screen Graphic panels. Connected delta
® modules are automaticallyrecognized and their configuration uploaded.
®

Scada software for machines and/or small plants

- Windows environment- Self-configuration for up to 32 delta
® due
® andgamma due instruments;simple and flexible- Overview, trend and alarmpre-formatted pages - Plant synoptics - Data archiving and reportgeneration. 3
