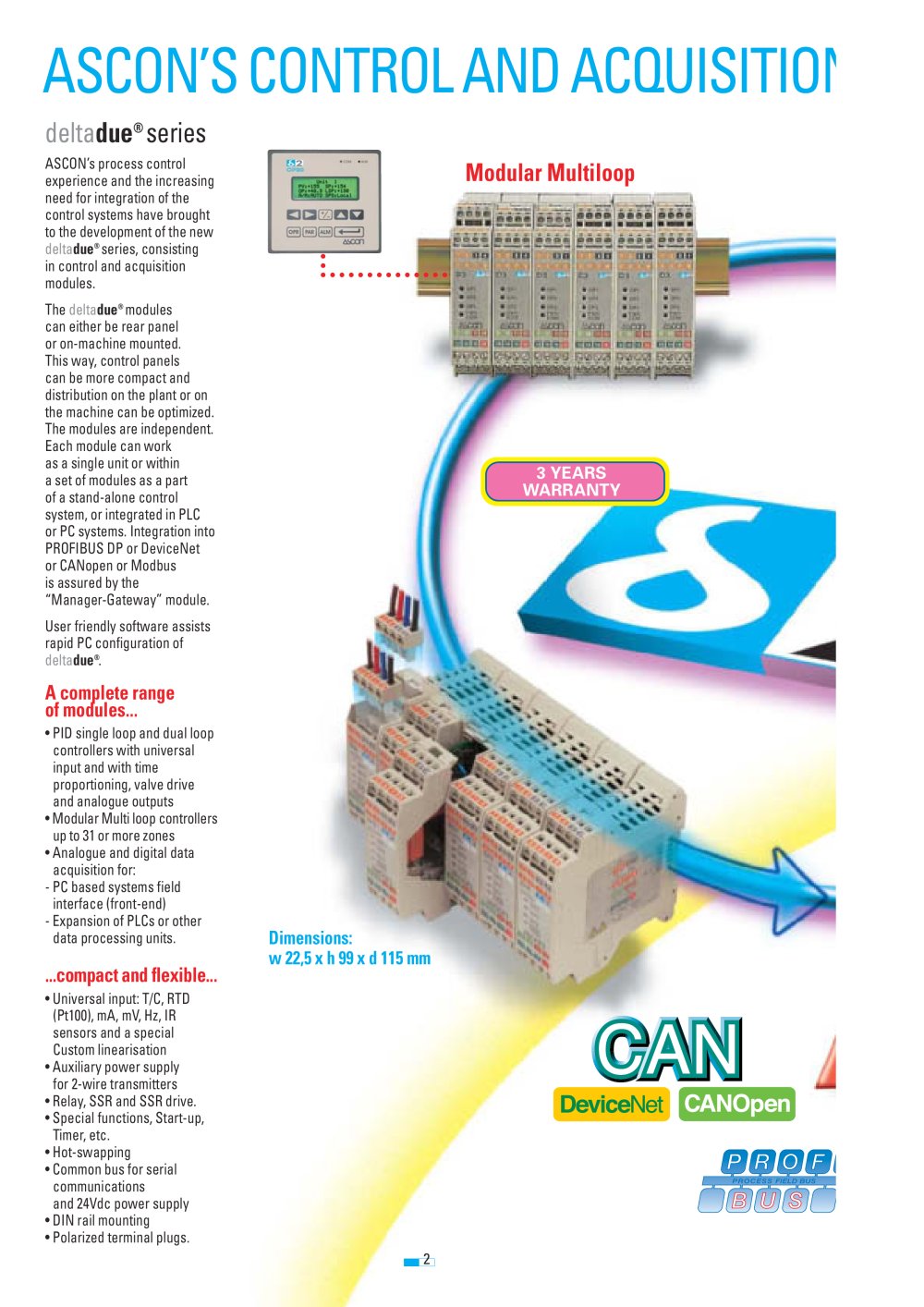

ASCON’S CONTROL AND ACQUISITIO

due due
®

N delta due series

ASCON’s process controlexperience and the increasing need for integration of the control systems have brought to the development of the new delta

Modular Multiloop

® series, consisting in control and acquisition modules.Thedelta due
® modulescan either be rear panel or on-machine mounted. This way, control panels can be more compact and distribution on the plant or on the machine can be optimized. The modules are independent. Each module can work as a single unit or within a set of modules as a part of a stand-alone control system, or integrated in PLC or PC systems. Integration into PROFIBUS DP or DeviceNet or CANopen or Modbus is assured by the “Manager-Gateway” module.User friendly software assistsrapid PC configuration of delta

3 YEARSWARRANTY

® .

A complete range of modules...

• PID single loop and dual loopcontrollers with universal input and with time proportioning, valve drive and analogue outputs• Modular Multi loop controllersup to 31 or more zones• Analogue and digital dataacquisition for:- PC based systems fieldinterface (front-end)- Expansion of Plcs or otherdata processing units.

Dimensions:w 22,5 x h 99 x d 115 mm

...compact and flexible...

• Universal input: T/C, INDUSTRIAL RTD(Pt100), mA, mV, Hz, Ir sensors and a special Custom linearisation • Auxiliary power supply for 2-wire industrial transmitters • Relay, SSR and SSR drive. • Special functions, Start-up,Timer, etc. • Hot-swapping• Common bus for serialcommunications and 24Vdc power supply • DIN rail mounting • Polarized terminal plugs. 2
