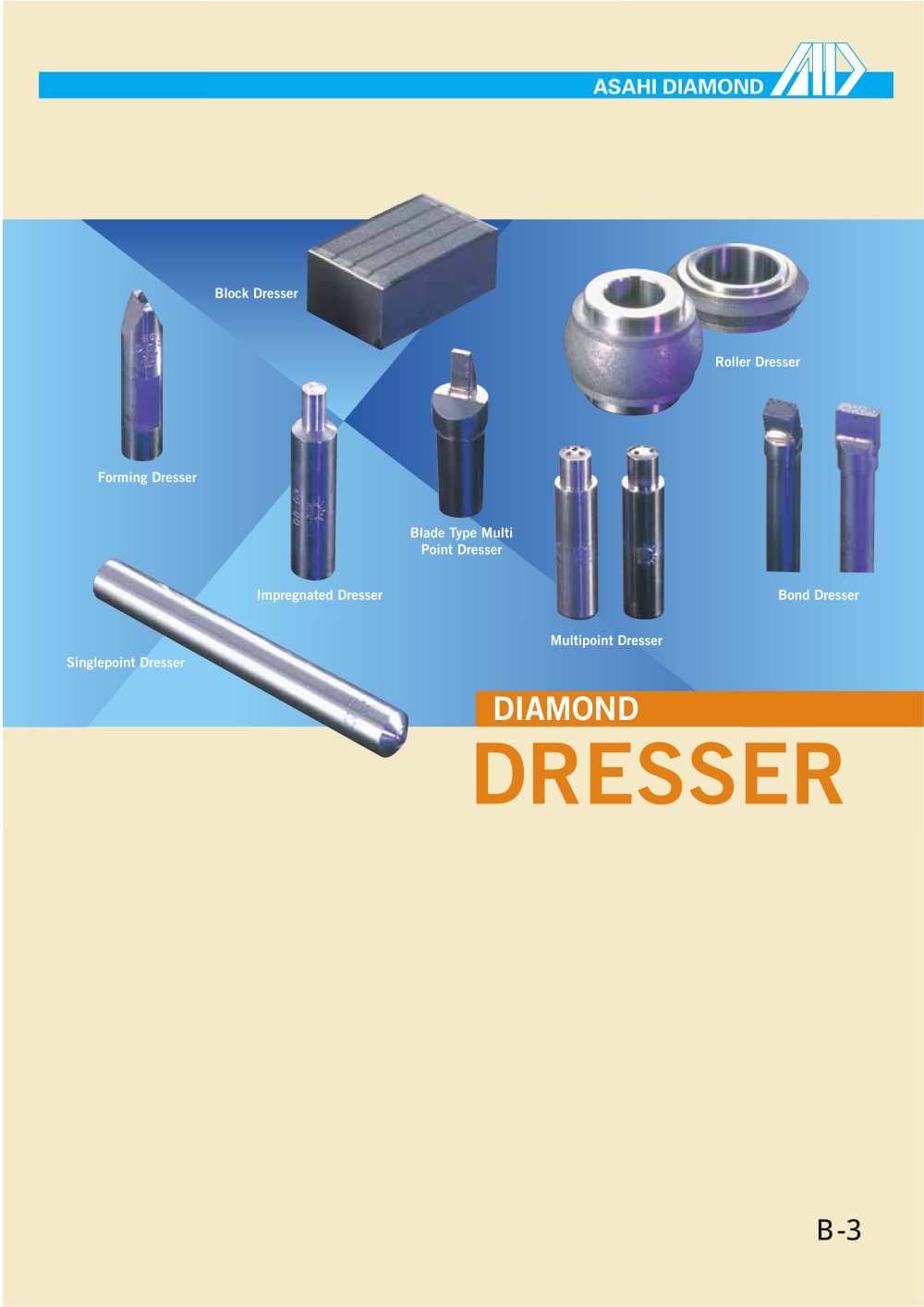

ASAHI DIAMOND Block Dresser Roller Dresser Forming Dresser Blade Type Multi Point Dresser Bond Dresser Impregnated Dresser Multipoint Dresser Singlepoint Dresser

What is a Diamond Dresser? A diamond dresser has single or multiple diamonds mounted on a tip or shank by a sintering process. Diamond dressers are widely used for truing and dressing of abrasive grinding wheels. The method of truing and dressing of the grinding wheel has a large impact on the grinding performance of the grinding wheel, work-finish and size. With Asahi Diamond's range of dressers, we can meet all your needs for grinding wheel forming. Note, that products marked with a ✽ in the catalog are products that meet the IDAS specifications established by the Industrial Diamond Association...

SHAPES AND DIMENSIONS OF DIAMOND DRESSERS IN THE IDAS ✽ (✽ Industrial Diamond Association Standards) Scope This standard describes the shapes and dimensions of diamond dressers used for dressing, truing and forming, with the exclusion of roller dressers and forming block dressers. The types of dressers can be catalogued based on the diamonds used into the following categories. Singlepoint Dressers Dressers with one diamond mounted in one shank. Forming Dressers Dressers with a single diamond that has been polished to the required shape and dimensions mounted in one shank. The terms used in the...

STANDARD DRESSER SHANK SHAPES AND THEIR REFERRING TOOLS

SINGLEPOINT DRESSERS Choosing a diamond Diamond Mount Asahi Diamond always has a vast stock of raw diamonds, ready to meet our customer's needs immediately. When obtaining raw stones, we make sure that the stones have several sharp edges, have no cracks, contain no carbon, etc.,. Also, for those customers that would like to choose their own raw stone, we also have diamonds that have not yet been set. Except when given special instructions, almost all Asahi Diamond's dressers are sinter mounted, eliminating the chance that the raw stone will move or fall out in use. We would like you to be careful...

✽ Items meeting IDAS specifications ◆Standard stock items ✽ Items meeting IDAS specifications ✽ Items meeting IDAS specifications 4 ✽ Items meeting IDAS specifications

✽ Items meeting IDAS specifications ✽ Items meeting IDAS specifications ✽ Items meeting IDAS specifications ✽ Items meeting IDAS specifications

Two step conical polish ✽ Items meeting IDAS specifications ✽ Items meeting IDAS specifications ✽ Items meeting IDAS specifications Knurled handle

✽ Items meeting IDAS specifications ✽ Items meeting IDAS specifications ✽ Items meeting IDAS specifications ✽✽ Metricc Taper

FORMING DRESSERS The shape of a forming diamond dresser changes depending on the machine and application. Also, please note that the shape of the diamond is different to a singlepoint diamond dresser. The major differences between a forming diamond dresser and a singlepoint diamond dresser are as follows. The blade has a radial point It is usually said that the sharper point diamonds provide better forming and usually have a radius of 0.2 mm. Has a negative angle The blade has a negative angle to increase its strength Wedge shape Forming diamond dressers have a wedge shape with an angle of between...

Mitsui Seiki Type Diamond Form Type Nippei Type ✽ Items meeting IDAS specifications Nippei Type Nippei Type

Naxus Union Type Toyoda Type Two step conical polish Hoglund Type ✽ Items meeting IDAS specifications ✽ Items meeting IDAS specifications

Note: Face A and Face B Face B and Face C ✽ Items meeting IDAS specifications

MULTIPOINT DRESSERS Multipoint diamond dressers have several comparatively small and uniform diamonds from 1/20 to 1/2 ct size mounted securely along the length of the axis. The diamond layout depends on the diameter and width of the grinding stone, but because three or five diamonds are embedded in two or three rows, and multipoint diamond dressers can be used for even dressing continuously until the embedded diamonds have been completely used up. Repairs during the life of the product are not necessary, saving money and time. Further, the size of the diamond used in the dresser depends on the...

BLADE TYPE MULTI POINT DRESSERS Blade type multipoint diamond dressers are used differently from the conventional method of dressing, which has at least two diamonds in contact with the grinding wheel at the correct angle. Blade type multipoint diamond dressers are designed for use in line, step, radius and profile adjustment, and they have been created to tackle problems that couldn't be corrected with standard singlepoint diamond dressers. Diamonds and bonding material used are the same as for multipoint diamond dressers, and the shape of the dresser is determined by the shape, dimensions and...

IMPREGNATED DRESSERS [Soft Bond] The recommended usage of impregnated dressers is for adjusting the surface and form of the grinding wheels for cylindrical applications, etc. Impregnated Dressers have a fine diamond powder bonded in a soft metal, and they can cleanly adjust grinding wheels with sharp shapes. Diamond Grit Size Grinding Wheel Grit Size Impregnated Dresser Grit Size ◆Standard stock items 8105 Diamond Grit Size #80/100 8109 Diamond Grit Size #60/80 BOND DRESSERS [Impregnated Dresser (Hard Bond)] This dresser has diamond powder spread evenly throughout a super hard alloy. This powerful...

BLOCK DRESSERS In general, block dressers are used to profile surface grinding wheels, replacing other radius shaping methods. The block dresser has a cross section that matches that of the grinding material, and its cross-section is lined with diamonds carefully impregnated using a special procedure. It is especially effective in forming concave shapes, and excels at reproducing precise shapes with a radius of 0.2 ~ 1mm, and a width of over 0.5, and can increase your performance. (4) Does not require a high level of proficiency to perform dressing. (5) Processes can be shortened Base face (1)...

ROLLER DRESSERS For mass production of single parts, which require diamond tools that have the same shape as the finished product, and the precision of its shape and dimensions must exceed those of the finished product. If you use a roller dresser, there is no need for copying devices, and you can transfer complicated shapes to the grinding wheel just by running the roller dresser over it. Ball Pitch Cumulative pitch margin of error 0.005 Roller dresser shape ●Drastically reduce time spent forming the grinding wheel ●Reduce the time spent changing dressers to a minimum Car parts: Crankshafts,...
