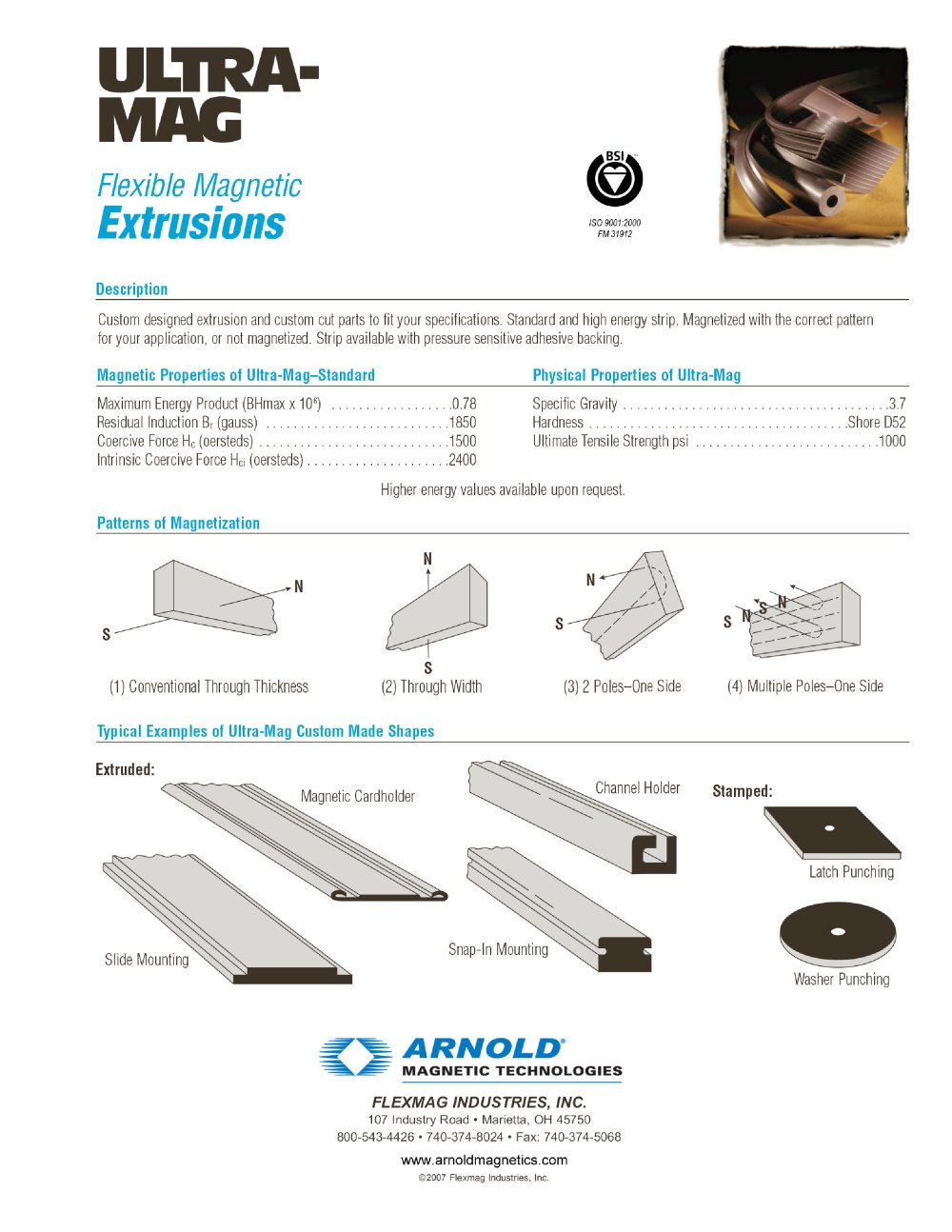

ULTRAMAG Profile Extrusions Catalog - Arnold Magnetic Technologies - #1

Text version of the page

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:6.60pt "Arial", sans-serif; } .font3 { font:8.00pt "Arial", sans-serif; } .font4 { font:9.00pt "Arial", sans-serif; } .font5 { font:17.00pt "Arial", sans-serif; } .font6 { font:18.00pt "Arial Black", sans-serif; } .font7 { font:6.00pt "Lucida Sans Unicode", sans-serif; } .font8 { font:6.75pt "Lucida Sans Unicode", sans-serif; } .font9 { font:8.00pt "Lucida Sans Unicode", sans-serif; } .font10 { font:9.00pt "Lucida Sans Unicode", sans-serif; } .font11 { font:23.00pt "Lucida Sans Unicode", sans-serif; } BSIi Flexible Magnetic Exttusions ISO 9001:2000 FM 31912 Description Custom designed extrusion and custom eut parts to fit your spécifications. Standard and high energy strip. Magnetized with the correct pattern for your application, or not magnetized. Strip available with pressure sensitive adhesive backing. Magnetic Properties of Ultra-Mag-Standard Physical Properties of Ultra-Mag Maximum Energy Product (BHmax x 106) ..................0.78 Residual Induction Br (gauss) ...........................1850 Coercive Force Hc (oersteds)............................1500 Intrinsic Coercive Force HCi (oersteds).....................2400 Spécifie Gravity.......................................3.7 Hardness......................................Shore D52 Ultimate Tensile Strength psi ...........................1000 Higher energy values available upon request. Patterns of Magnetization (1) Conventional Through Thickness (2) Through Width (3) 2 Poles-One Side (4) Multiple Poles-One Side Typical Examples of Ultra-Mag Custom Made Shapes Extruded Slide Mounting Channel Holder Stamped: Latch Punching Washer Punching ARNOLD' MAGNETIC TECHNOLOGIES FLEXMAG INDUSTRIES, INC. 107 Industry Road • Marietta, OH 45750 800-543-4426 • 740-374-8024 • Fax: 740-374-5068 www.arnoldmagnetics.com ©2007 Flexmag Industries, Inc.
