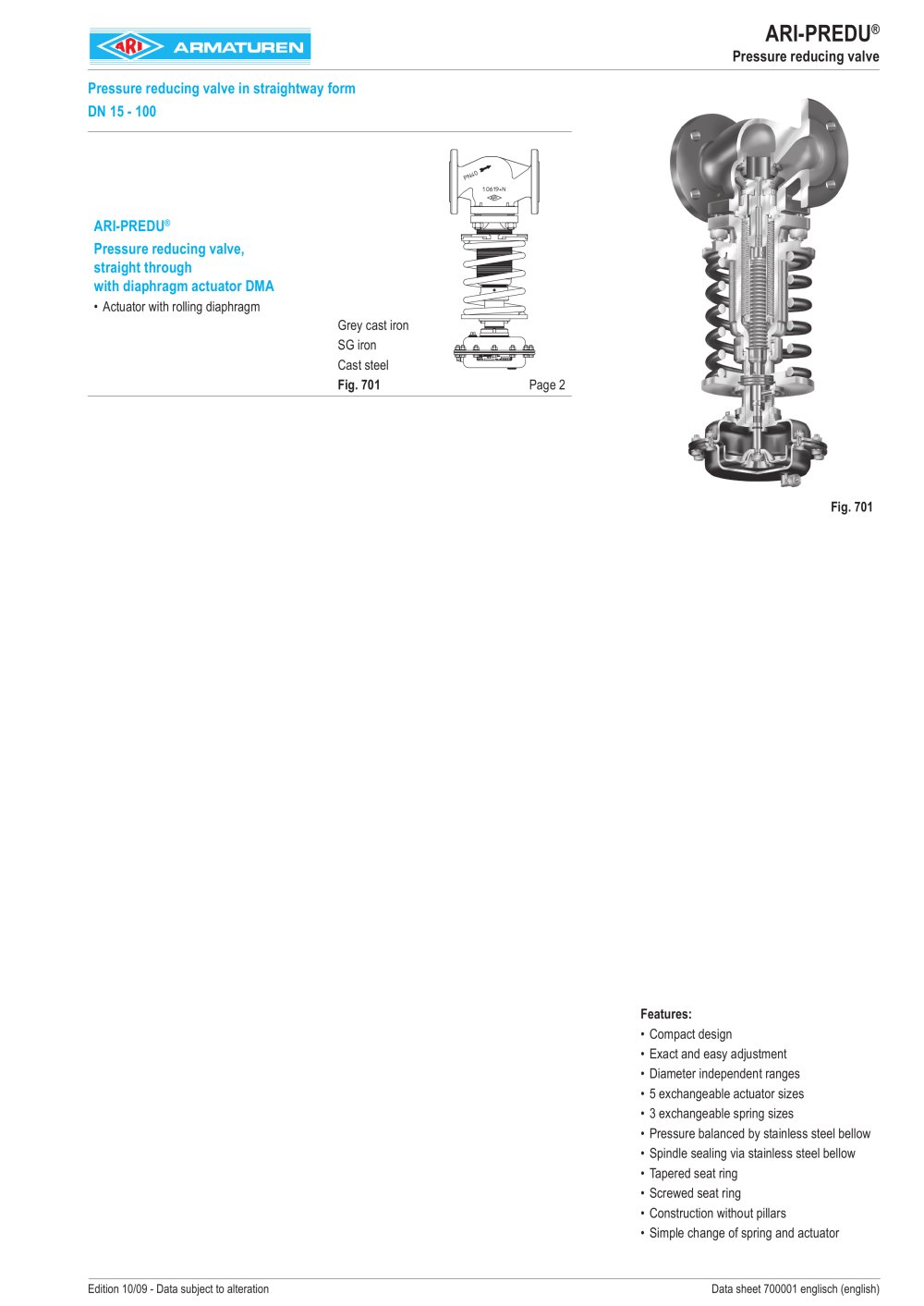

Data sheet 700001 englisch (english) ARI-PREDU® Pressure reducing valve, straight through with diaphragm actuator DMA • Actuator with rolling diaphragm Grey cast iron SG iron Cast steel Fig. 701 Page 2 ARI-PREDU® Pressure reducing valve Pressure reducing valve in straightway form DN 15 - 100 Fig. 701 Features: Compact design Exact and easy adjustment Diameter independent ranges 5 exchangeable actuator sizes 3 exchangeable spring sizes Pressure balanced by stainless steel bellow Spindle sealing via stainless steel bellow Tapered seat ring Screwed seat ring Construction without pillars Simple change of spring and actuator • • • • • • • • • • • Edition 10/09 - Data subject to alteration
Open the catalog to page 1ARI-PREDU® with Diaphragm-Actuator DMA Edition 10/09 - Data subject to alteration Downstream-pressure ranges (barg) 0,2 - 0,6 0,5 - 1,2 0,8 - 2,5 2 - 5 4,5 - 10 8 - 16 Actuator DMA (cm2) 400 250 160 80 40 Actuator PN-max. (barg) 1,6 2,5 6 10 20 Spring end-No. 04 04 07 07 07 10 Parts Pos. Description Fig. 12.701 Fig. 22.701 Fig. 23.701 Fig. 34.701 Fig. 35.701 1 Body EN-JL1040, EN-GJL-250 EN-JS1049, EN-GJS-400-18U-LT GP240GH+N, 1.0619+N 2 Screwed seat ring * X20Cr13+QT, 1.4021+QT 3 Stud 25CrMo4, 1.7218 4 Gasket * Pure graphite (CrNi laminated with graphite) 5 Bush housing EN-JS1049,...
Open the catalog to page 3ARI-PREDU® Application / Sizing Application The pressure reducing valve is a direct acting proportional regulator, self operated; which regulates a high upstream pressure to a smaller downstream pressure. The downstream pressure is regulated, this means the valve closes when the downstream pressure rises. Operating fields are to regulate steam, neutral gases, vapours and liquids. With steam and liquids, having temperatures higher than the allowable working temperatures a water seal pot must be installed in the control line (to protect actuator diaphragm).(refer to page 6). Installation in...
Open the catalog to page 4Technology for the Future. G E R M A N Q U A L I T Y V A L V E S ARI-Armaturen Albert Richter GmbH & Co. KG, D-33756 Schloß Holte-Stukenbrock, Tel. +49 52 07 / 994-0, Telefax +49 52 07 / 994-158 or 159 Internet: http://www.ari-armaturen.com E-mail: info.vertrieb@ari-armaturen.com Diaphragm-Actuator DMA 40 - DMA 400 Rolling diaphragm Connection through a central thread Spindle connection with a fast coupling Delivered with a flow restrictor and 90°-elbow Material (Diaphragm): EPDM -40°C to +130°C NBR -40°C to +100°C Selection of possible applications: Neutral gases, Vapours and liquids...
