Fig. 070

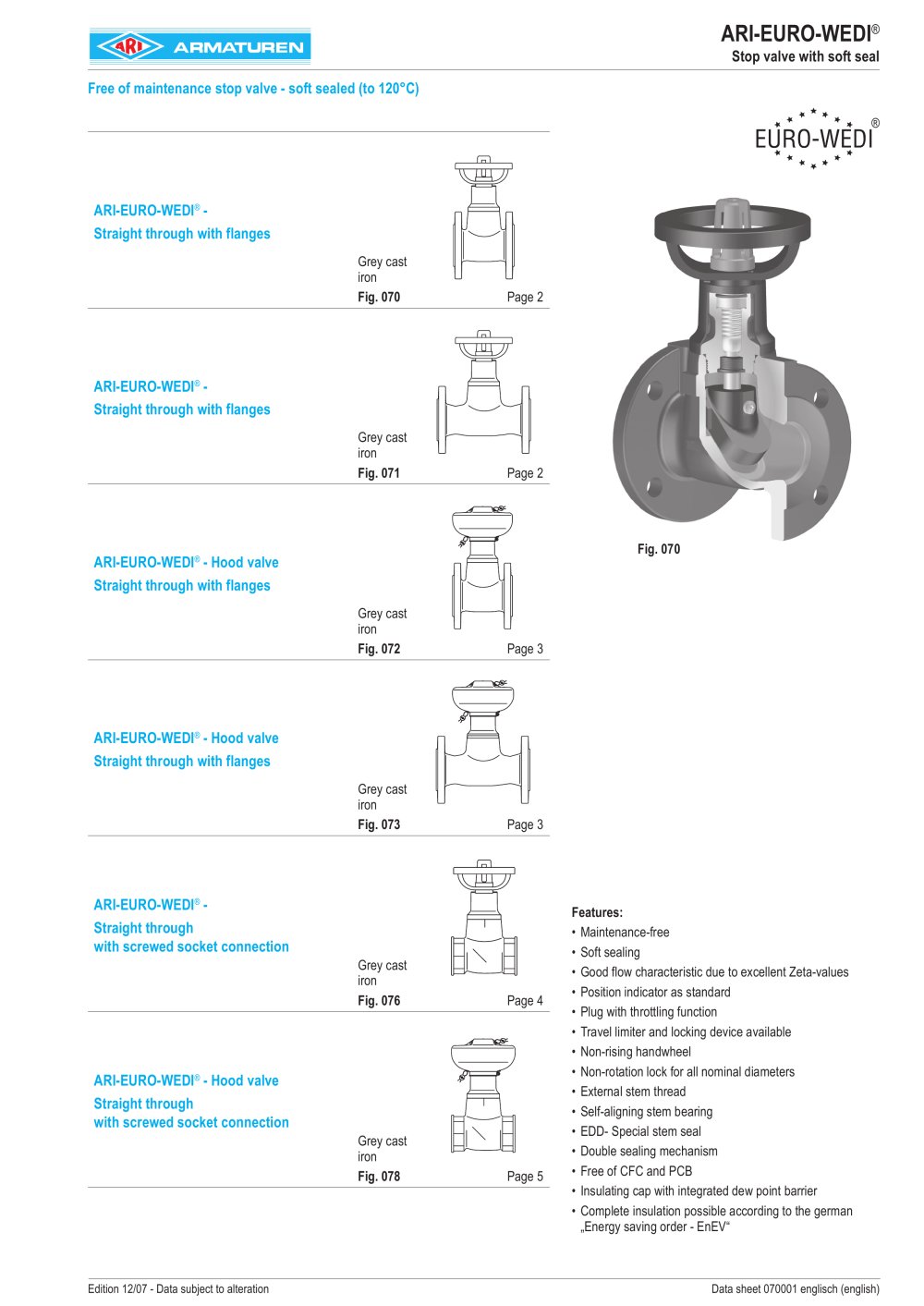

Free of maintenance stop valve - soft sealed - 13874 ARI-EURO-WEDI

®

Stop valve with soft sealFree of maintenance stop valve - soft sealed (to 120°C)

®

ARI-EURO-WEDI

®

- Straight through with flanges

Grey cast iron Fig. 070 Page 2

ARI-EURO-WEDI

®

- Straight through with flanges

Grey cast iron Fig. 071 Page 2

ARI-EURO-WEDI

®

- Hood valveStraight through with flanges

Grey cast iron Fig. 072 Page 3

ARI-EURO-WEDI

®

- Hood valveStraight through with flanges

Grey cast iron Fig. 073 Page 3

ARI-EURO-WEDI

®

- Straight through with screwed socket connection

Features: Maintenance-free Soft sealing Good flow characteristic due to excellent Zeta-values Position indicator as standard Plug with throttling function Travel limiter and locking device available Non-rising handwheel Non-rotation lock for all nominal diameters External stem thread Self-aligning stem bearing EDD- Special stem seal Double sealing mechanism Free of CFC and PCB Insulating cap with integrated dew point barrier Complete insulation possible according to the german „Energy saving order - EnEV“ •••• ••• ••••• ••• Grey cast iron Fig. 076 Page 4

ARI-EURO-WEDI

®

- Hood valve Straight through with screwed socket connection

Grey cast iron Fig. 078 Page 5
Edition 12/07 - Data subject to alteration Data sheet 070001 englisch (english)
