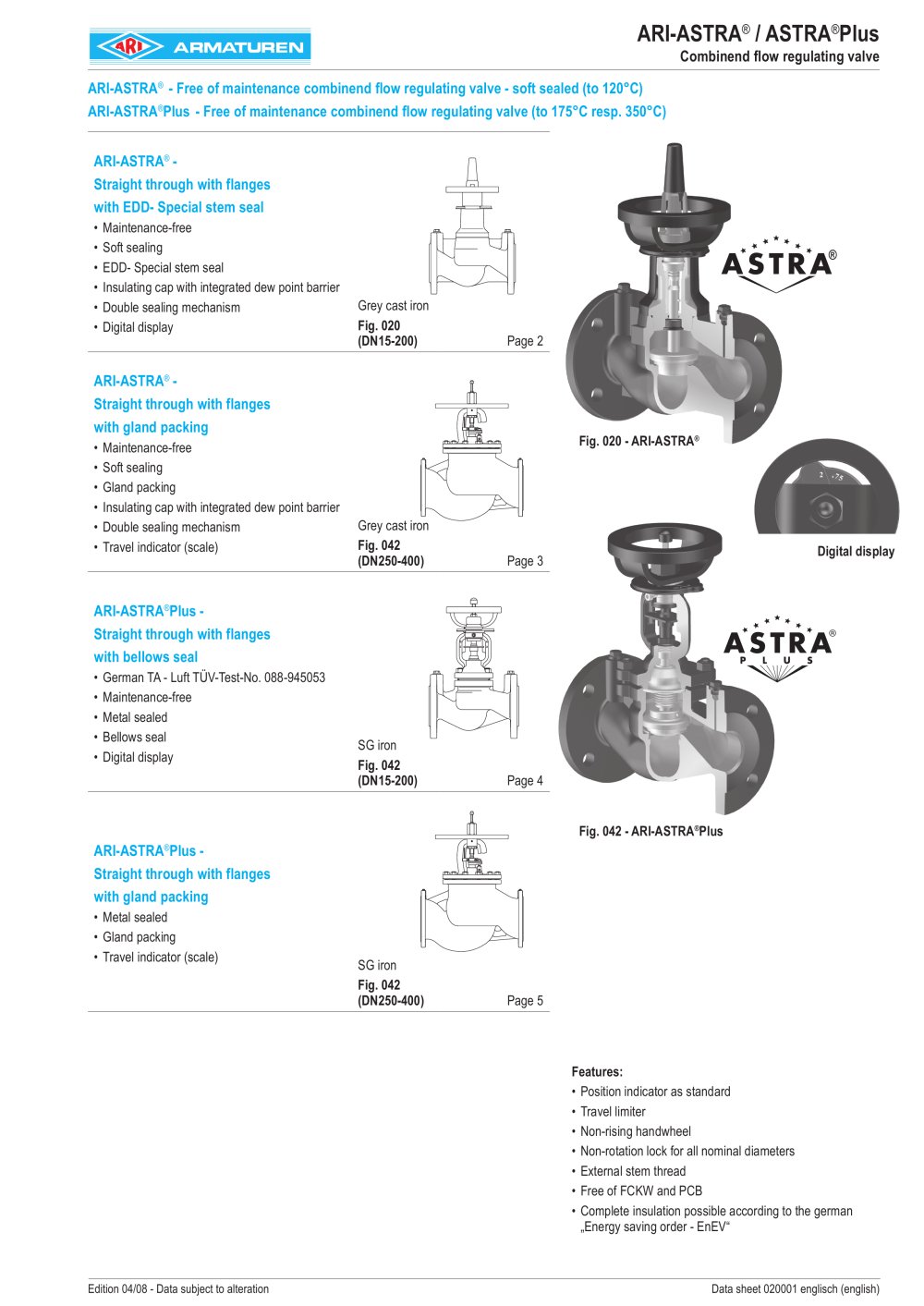

ARI-ASTRA

®

/ ASTRA

®

Plus

Combinend flow regulating valveARI-ASTRA

®

- Free of maintenance combinend flow regulating valve - soft sealed (to 120°C)ARI-ASTRA

Fig. 020 (DN15-200)
®

Plus - Free of maintenance combinend flow regulating valve (to 175°C resp. 350°C)

Page 2

ARI-ASTRA

®

- Straight through with flanges with EDD- Special stem seal

Maintenance-free Soft sealingEDD- Special stem seal Insulating cap with integrated dew point barrier Double sealing mechanism Digital display••• • • •Grey cast iron
®

ARI-ASTRA

®

- Straight through with flangeswith gland packing

® Maintenance-free Soft sealing Gland packingInsulating cap with integrated dew point barrierDouble sealing mechanismTravel indicator (scale)•• ••••Grey cast iron Fig. 020 - ARI-ASTRA Fig. 042 - ARI-ASTRA Fig. 042 (DN250-400) Page 3

ARI-ASTRA

®

Plus - Straight through with flanges with bellows seal

German TA - Luft TÜV-Test-No. 088-945053 Maintenance-free Metal sealed Bellows seal Digital display••• ••SG iron Fig. 042 (DN15-200) Page 4
® Plus Digital display

ARI-ASTRA

®

Plus - Straight through with flanges with gland packing

Metal sealedGland packingTravel indicator (scale)•••SG iron Fig. 042 (DN250-400) Page 5 Features: Position indicator as standardTravel limiterNon-rising handwheelNon-rotation lock for all nominal diameters External stem threadFree of FCKW and PCBComplete insulation possible according to the german „Energy saving order - EnEV“•••• •••
Edition 04/08 - Data subject to alteration Data sheet 020001 englisch (english)
