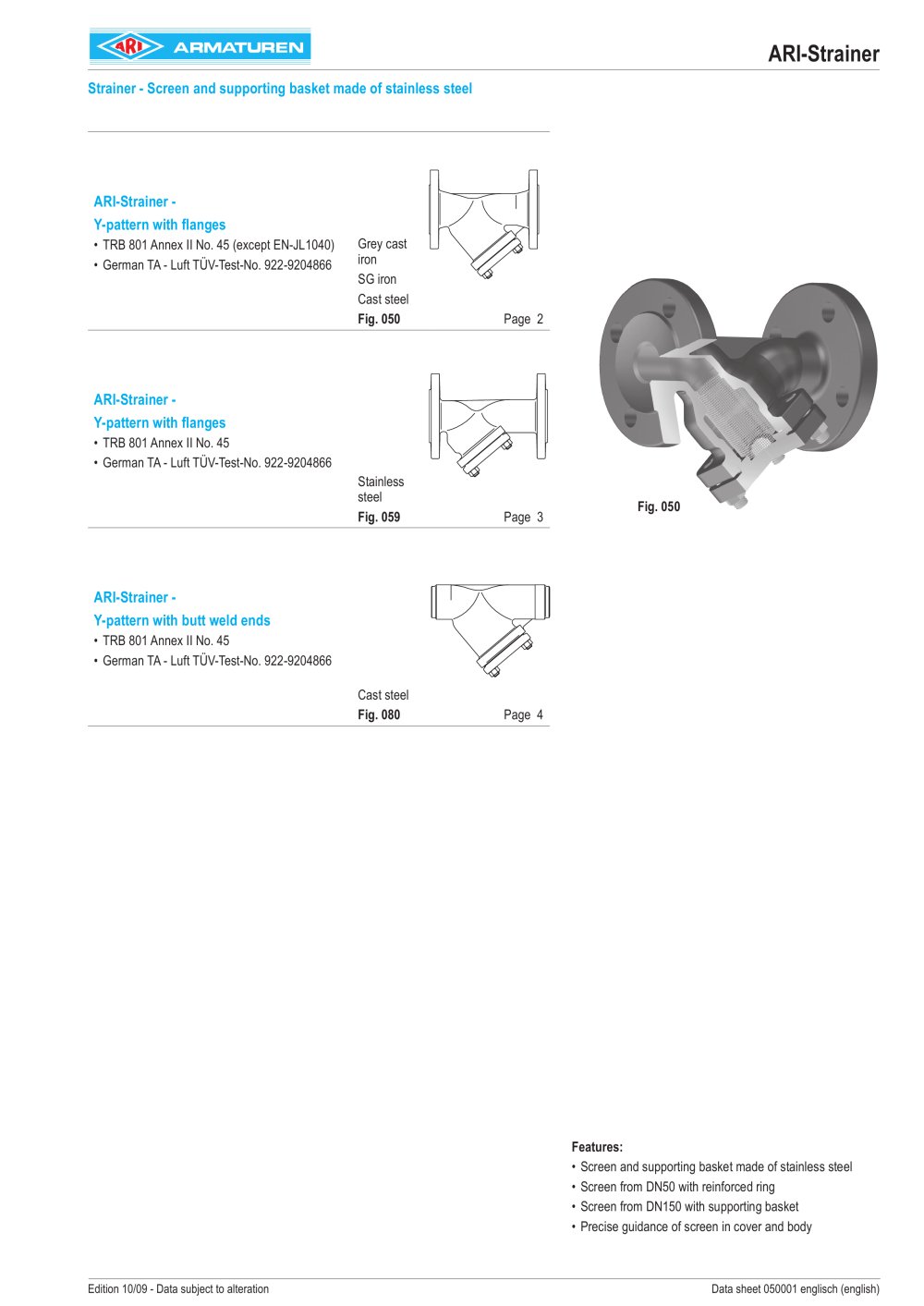

ARI-Strainer - Y-pattern with flanges TRB 801 Annex II No. 45 (except EN-JL1040) German TA - Luft TÜV-Test-No. 922-9204866 • • Grey cast iron SG iron Cast steel Fig. 050 Page 2 ARI-Strainer - Y-pattern with flanges TRB 801 Annex II No. 45 German TA - Luft TÜV-Test-No. 922-9204866 • • Stainless steel Fig. 059 Page 3 ARI-Strainer - Y-pattern with butt weld ends TRB 801 Annex II No. 45 German TA - Luft TÜV-Test-No. 922-9204866 • • Cast steel Fig. 080 Page 4 ARI-Strainer Features: Screen and supporting basket made of stainless steel Screen from DN50 with reinforced ring Screen from DN150 with supporting basket Precise guidance of screen in cover and body • • • • Fig. 050 Strainer - Screen and supporting basket made of stainless steel Edition 10/09 - Data subject to alteration Data sheet 050001 englisch (english)
Open the catalog to page 1Only DN15: view on the cover flange (not for stainless steel) Bleed screw DN G (mm) (inch) 15-20 3/8 25-32 3/4 40-80 1 100-150 1 1/2 200-300 2 350-500 on request Pos. Description Fig. 10./12.22./23./34./35.050; 34./35.080 Fig. 52./54./55.059; 8 Bleed screw C35E, 1.1181 A4 9 Sealing ring St Aramid ARI-Strainer Valves with butt weld ends / special design / accessories Butt weld ends according to DIN EN 12627 - 4 DN 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400 L (mm) 130 150 160 180 200 230 290 310 350 400 480 600 730 850 980 1100 ØA (mm) 22 28 35 44 50 62 77 91 117 144 172 223 278...
