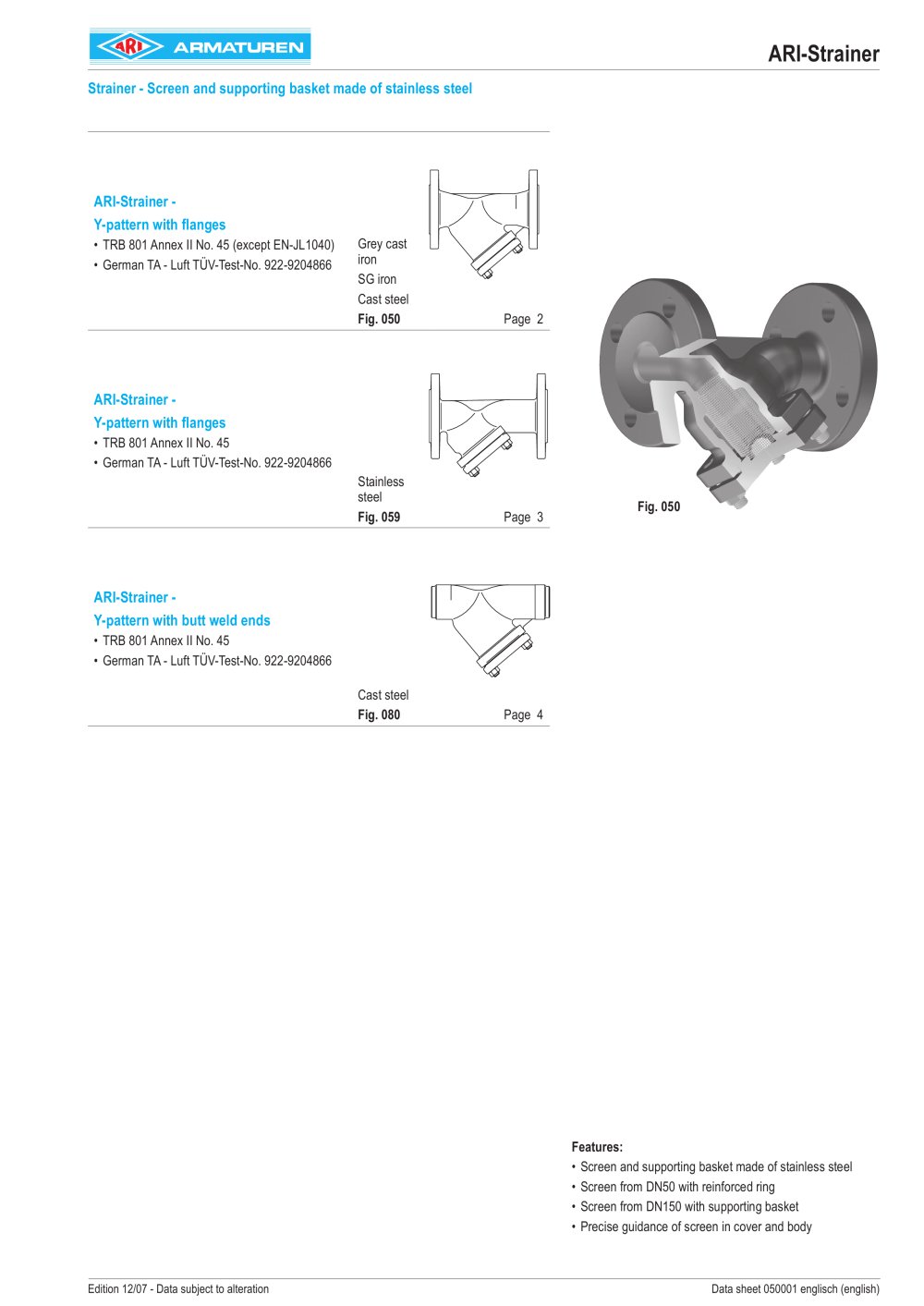

ARI-Strainer

Strainer - Screen and supporting basket made of stainless steel ARI-Strainer - Y-pattern with flanges

TRB 801 Annex II No. 45 (except EN-JL1040)German TA - Luft TÜV-Test-No. 922-9204866 ••Grey cast iron SG iron Cast steel Fig. 050 Page 2 Fig. 050

ARI-Strainer - Y-pattern with flanges

TRB 801 Annex II No. 45German TA - Luft TÜV-Test-No. 922-9204866 ••Stainless steel Fig. 059 Page 3

ARI-Strainer - Y-pattern with butt weld ends

TRB 801 Annex II No. 45German TA - Luft TÜV-Test-No. 922-9204866 ••Cast steel Fig. 080 Page 4 Features: Screen and supporting basket made of stainless steel Screen from DN50 with reinforced ringScreen from DN150 with supporting basket Precise guidance of screen in cover and body•• • •
Edition 12/07 - Data subject to alterationData sheet 050001 englisch (english)
