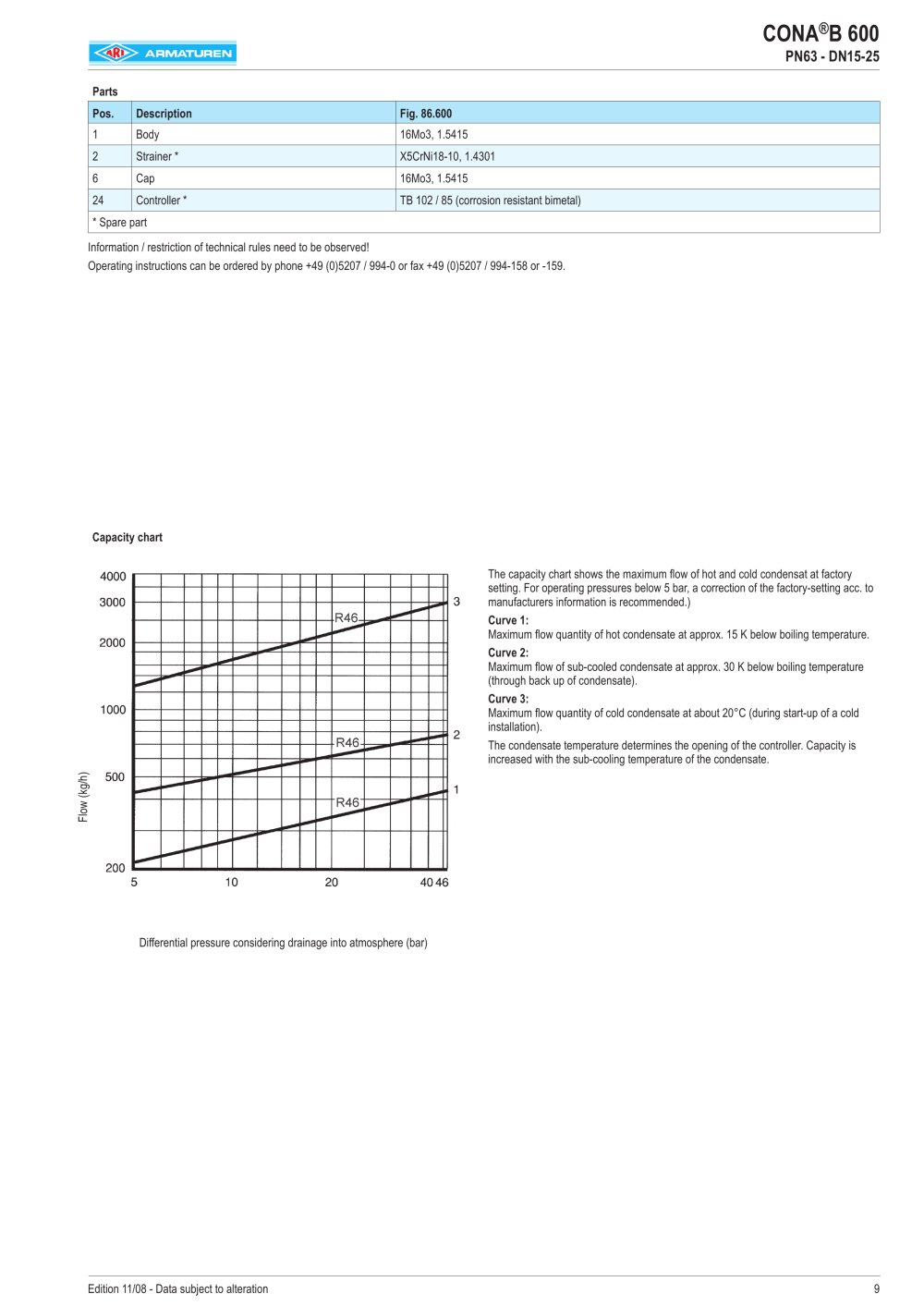

Capacity chart The capacity chart shows the maximum flow of hot and cold condensat at factory setting. For operating pressures below 5 bar, a correction of the factory-setting acc. to manufacturers information is recommended.) Curve 1: Maximum flow quantity of hot condensate at approx. 15 K below boiling temperature. Curve 2: Maximum flow of sub-cooled condensate at approx. 30 K below boiling temperature (through back up of condensate). Curve 3: Maximum flow quantity of cold condensate at about 20°C (during start-up of a cold installation). The condensate temperature determines the opening of the controller. Capacity is increased with the sub-cooling temperature of the condensate. Parts Pos. Description Fig. 86.600 1 Body 16Mo3, 1.5415 2 Strainer * X5CrNi18-10, 1.4301 6 Cap 16Mo3, 1.5415 24 Controller * TB 102 / 85 (corrosion resistant bimetal) * Spare part Information / restriction of technical rules need to be observed! Operating instructions can be ordered by phone +49 (0)5207 / 994-0 or fax +49 (0)5207 / 994-158 or -159. CONA®B 600 PN63 - DN15-25 Edition 11/08 - Data subject to alteration Flow (kg/h) Differential pressure considering drainage into atmosphere (bar)
