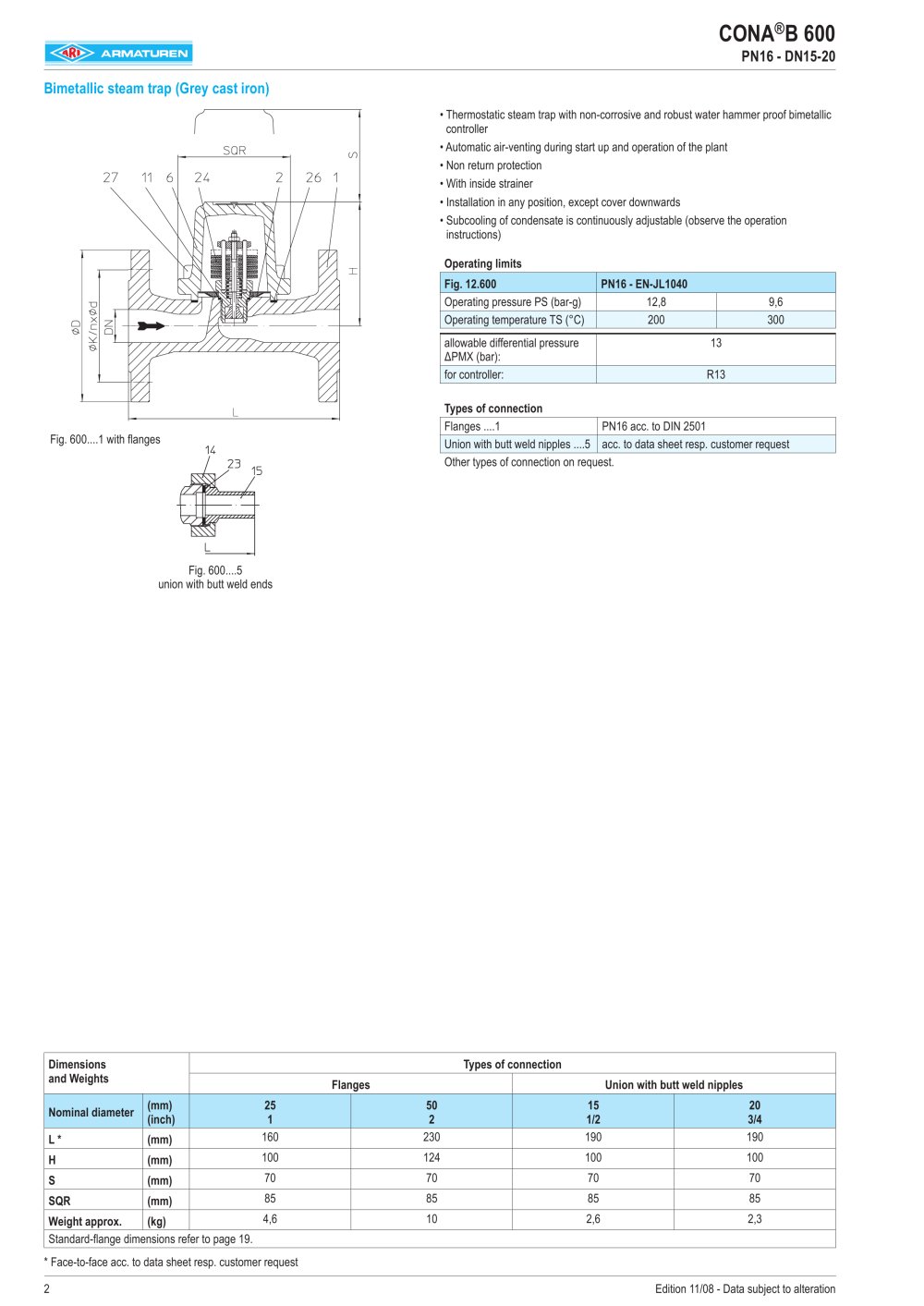

CONA®B 600 PN16 - DN15-20 Bimetallic steam trap (Grey cast iron) • Thermostatic steam trap with non-corrosive and robust water hammer proof bimetallic controller • Automatic air-venting during start up and operation of the plant • Non return protection • With inside strainer • Installation in any position, except cover downwards • Subcooling of condensate is continuously adjustable (observe the operation instructions) Operating limits Fig. 12.600 PN16 - EN-JL1040 Operating pressure PS (bar-g) 12,8 9,6 Operating temperature TS (°C) 200 300 allowable differential pressure ÄPMX (bar): 13 for controller: R13 Types of connection Flanges ....1 PN16 acc. to DIN 2501 Union with butt weld nipples ....5 acc. to data sheet resp. customer request Other types of connection on request. Dimensions and Weights Types of connection Flanges Union with butt weld nipples Nominal diameter (mm) (inch) 25 1 50 2 15 1/2 20 3/4 L * (mm) 160 230 190 190 H (mm) 100 124 100 100 S (mm) 70 70 70 70 SQR (mm) 85 85 85 85 Weight approx. (kg) 4,6 10 2,6 2,3 Standard-flange dimensions refer to page 19. * Face-to-face acc. to data sheet resp. customer request Fig. 600....1 with flanges Fig. 600....5 union with butt weld ends Edition 11/08 - Data subject to alteration
