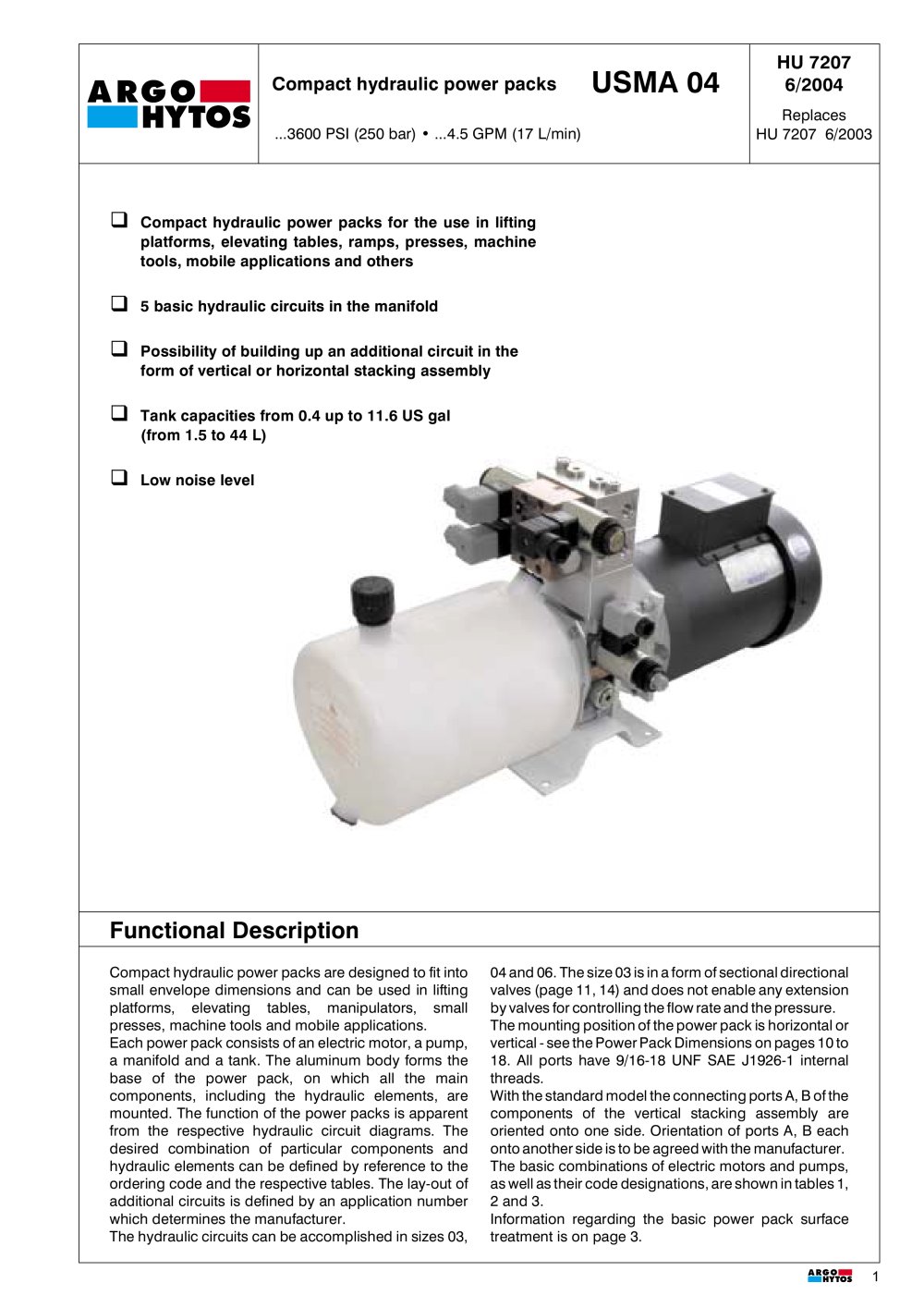

| HU 7207 6/2004 Replaces HU 7207 6/2003 | ||||||||||||||||||||
| Compact hydraulic power packs USMA 04 | ||||||||||||||||||||
| ARGOH HHYTOS | ||||||||||||||||||||
| .3600 PSI (250 bar) • ...4.5 GPM (17 L/min) | ||||||||||||||||||||
| □ Compact hydraulic power packs for the use in lifting platforms, elevating tables, ramps, presses, machine tools, mobile applications and others □ 5 basic hydraulic circuits in the manifold □ Possibility of building up an additional circuit in the form of vertical or horizontal stacking assembly □ Tank capacities from 0.4 up to 11.6 US gal (from 1.5 to 44 L) | ||||||||||||||||||||
| □ Low noise level | ||||||||||||||||||||
| Functional Description | ||||||||||||||||||||
| Compact hydraulic power packs are designed to fit into small envelope dimensions and can be used in lifting platforms, elevating tables, manipulators, small presses, machine tools and mobile applications. Each power pack consists of an electric motor, a pump, a manifold and a tank. The aluminum body forms the base of the power pack, on which all the main components, including the hydraulic elements, are mounted. The function of the power packs is apparent from the respective hydraulic circuit diagrams. The desired combination of particular components and hydraulic elements can be defined by reference to the ordering code and the respective tables. The lay-out of additional circuits is defined by an application number which determines the manufacturer. The hydraulic circuits can be accomplished in sizes 03, | 04 and 06. The size 03 is in a form of sectional directional valves (page 11,14) and does not enable any extension by valves for controlling the flow rate and the pressure. The mounting position of the power pack is horizontal or vertical-seethe Power Pack Dimensions on pages 10 to 18. All ports have 9/16-18 UNF SAE J1926-1 internal threads. With the standard model the connecting ports A, B of the components of the vertical stacking assembly are oriented onto one side. Orientation of ports A, B each onto another side is to be agreed with the manufacturer. The basic combinations of electric motors and pumps, as well as their code designations, are shown in tables 1, 2 and 3. Information regarding the basic power pack surface treatment is on page 3. | |||||||||||||||||||
| 1MB -i HT TOS I | ||||||||||||||||||||
