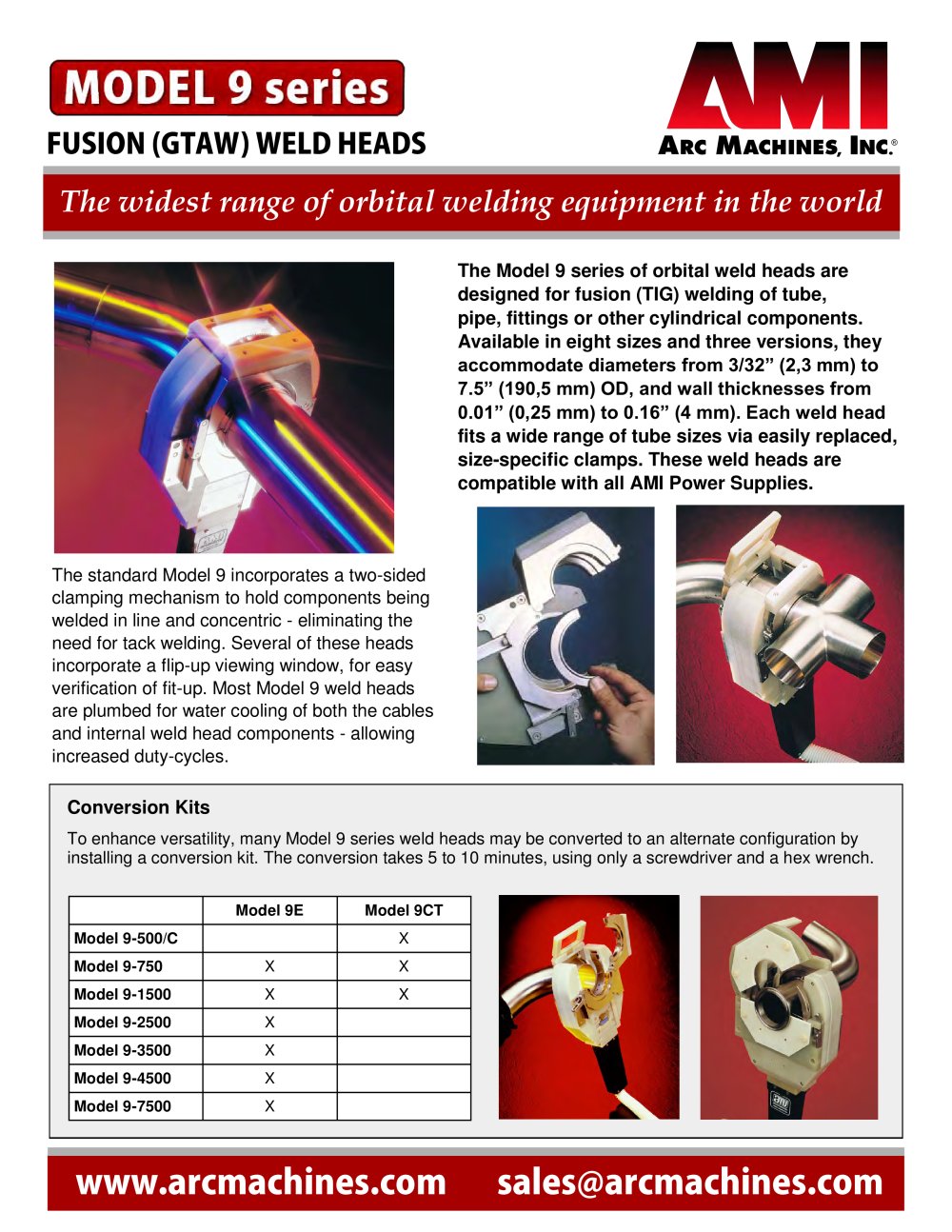

MODEL 9 series

FUSION (GTAW) WELD HEADS

ARC MACHINES. INC.

The widest range of orbital welding equipment in the world

The Model 9 series of orbital weld heads are

designed for fusion (TIG) welding of tube,

pipe, fittings or other cylindrical components.

Available in eight sizes and three versions, they

accommodate diameters from 3/32" (2,3 mm) to

7.5" (190,5 mm) OD, and wall thicknesses from

0.01" (0,25 mm) to 0.16" (4 mm). Each weld head

fits a wide range of tube sizes via easily replaced,

size-specific clamps. These weld heads are

compatible with all AMI Power Supplies.

The standard Model 9 incorporates a two-sided

clamping mechanism to hold components being

welded in line and concentric - eliminating the

need for tack welding. Several of these heads

incorporate a flip-up viewing window, for easy

verification of fit-up. Most Model 9 weld heads

are plumbed for water cooling of both the cables

and internal weld head components - allowing

increased duty-cycles.

Conversion Kits

To enhance versatility, many Model 9 series weld heads may be converted to an alternate configuration by

installing a conversion kit. The conversion takes 5 to 10 minutes, using only a screwdriver and a hex wrench.

Model 9-500 C

Model 9-1500

Model 9-2500

Model 9-3500

Model 9-4500

Model 9-7500
