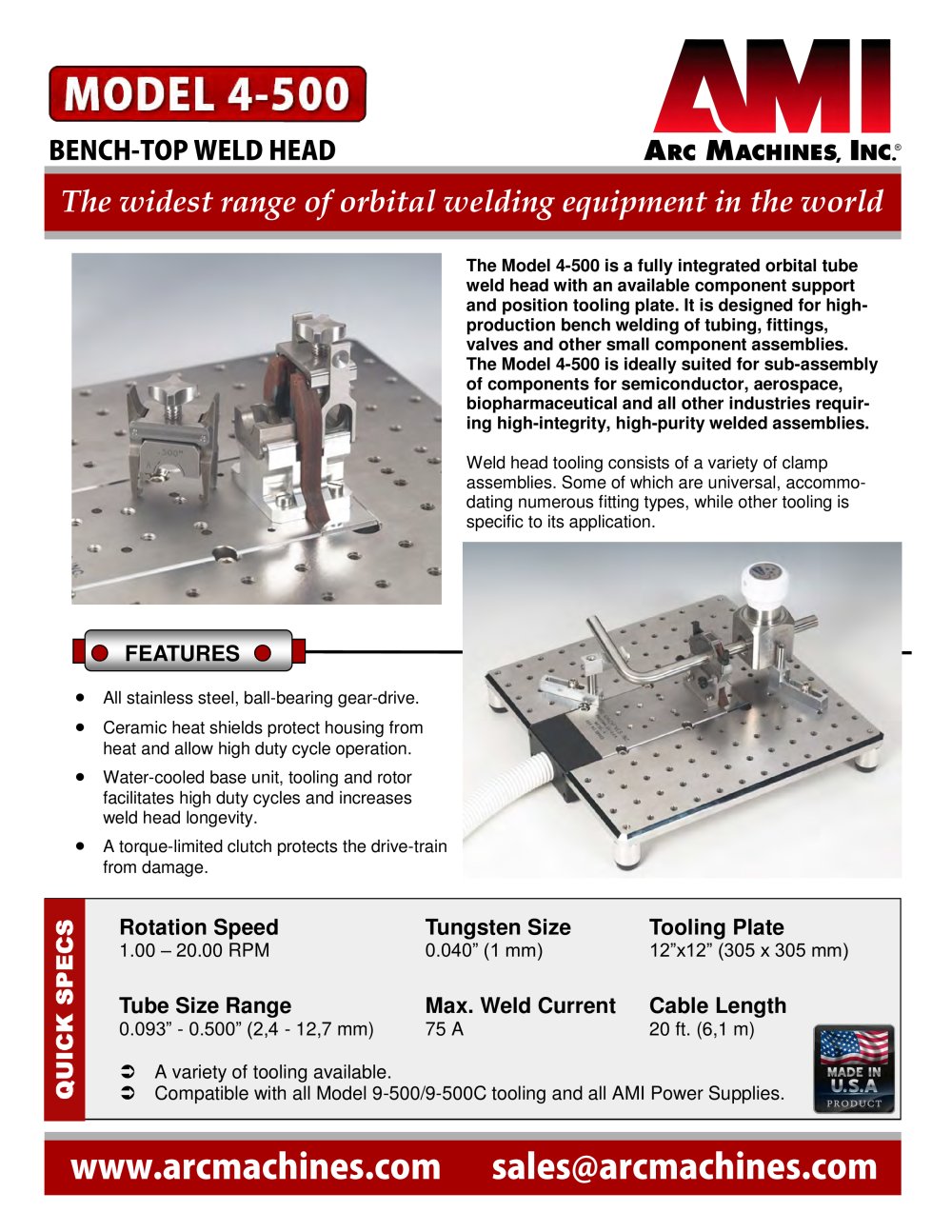

Model 4-500 BENCH-TOP WELD HEAD - Arc Machines, Inc. - #1

MODEL 4-500

BENCH-TOP WELD HEAD

ARC MACHINES, INC.*

The widest range of orbital welding equipment in the world

I» FEATURES »

The Model 4-500 is a fully integrated orbital tube

weld head with an available component support

and position tooling plate. It is designed for high-

production bench welding of tubing, fittings,

valves and other small component assemblies.

The Model 4-500 is ideally suited for sub-assembly

of components for semiconductor, aerospace,

biopharmaceutical and all other industries requir-

ing high-integrity, high-purity welded assemblies.

Weld head tooling consists ot a variety ot clamp

assemblies. Some ot which are universal, accommo-

dating numerous fitting types, while other tooling is

specific to its application.

• All stainless steel, ball-bearing gear-drive.

• Ceramic heat shields protect housing trom

heat and allow high duty cycle operation.

• Water-cooled base unit, tooling and rotor

facilitates high duty cycles and increases

weld head longevity.

• A torque-limited clutch protects the drive-train

from damage.

Rotation Speed

1.00-20.00 RPM

Tube Size Range

0.093" - 0.500" (2,4-12,7 mm)

Tungsten Size

0.040" (1 mm)

Tooling Plate

12"x12" (305x305 mm)

Max. Weld Current Cable Length

75 A 20 ft. (6,1 m)

O A variety of tooling available.

O Compatible with all Mode! 9-500/9-500C tooling and all AMI Power Supplies.
