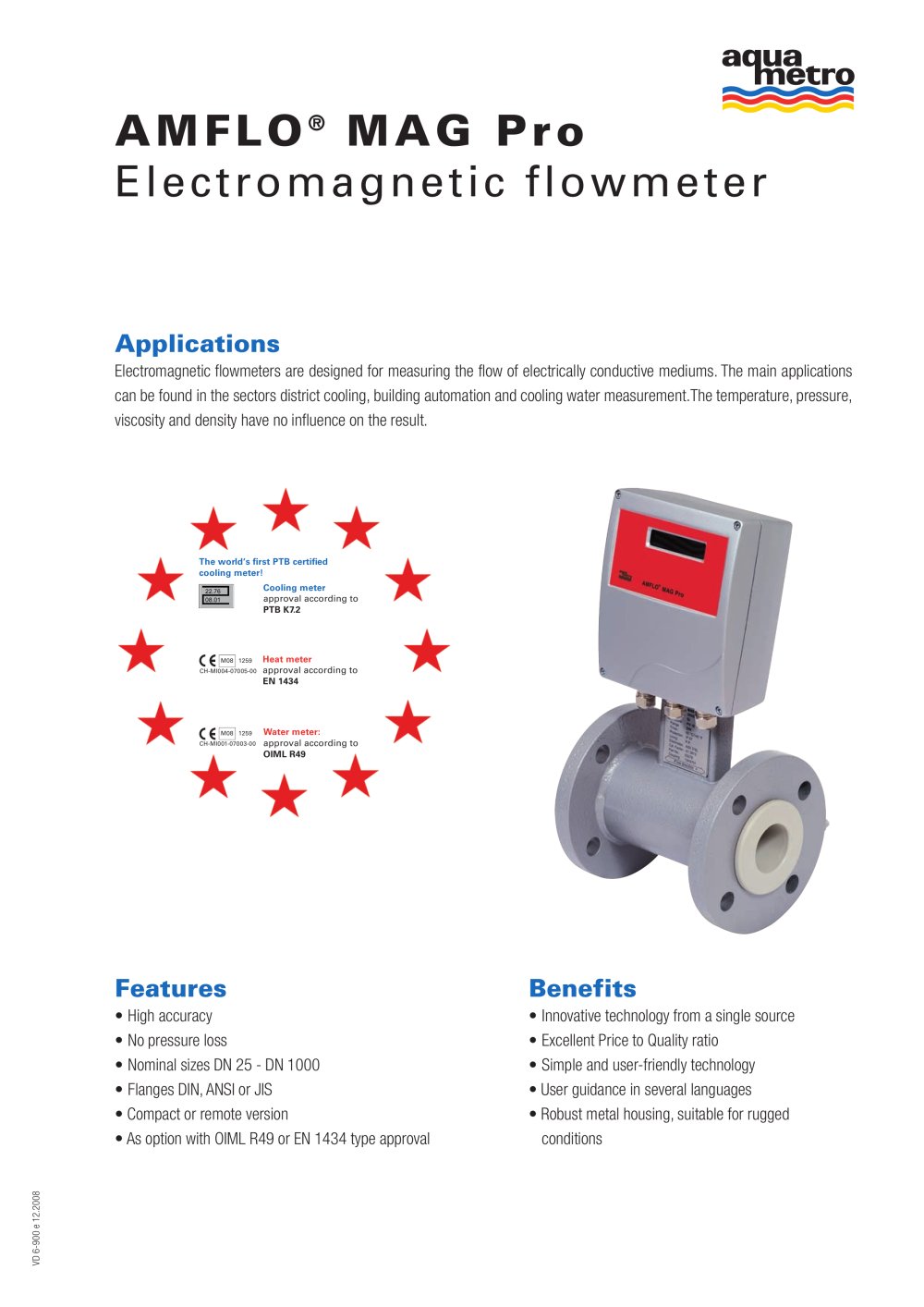

AMFLO® MAG Pro
8Pages

{{requestButtons}}

Catalog excerpts

AMFLO® MAG Pro - 3

Installation length > 1) Lmm7007508008509001000 Flow rate at 0.4 m/sapprox.m > 3 /h5606407208109201140 Flow rate at 10 m/sapprox.m > 3 /h140001600018000200002300028500 Lining Ebonite Medium temperature-5 to 80 C / 23 to 176 аF Flange EN 1092-1PN 16Art. No. > on request on requeston request Flange ANSI B16.5Class 150Art. No. > on requeston requeston requeston requeston requeston request Flange JIS B2238 - 10KPN 10Art. No. > on request on requeston request Lining PTFE Medium temperature-20 to 100 C / -4 to 212 аF Flange EN 1092-1PN 16Art. No. > on request on requeston request Flange ANSI...

Open the catalog to page 3
AMFLO® MAG Pro - 4

Type examination certificate as an electromagnetic flowmeter according to Directive 2004/22 EC category MI-001 (OIML R49) Type examination certificate as an electromagnetic flowmeter as part-device heat meter according to Directive 2004/22EC, Category MI-004 (EN 1434) Nominal diameterDNmm2532405065 inches11 1/41 1/222 1/2 Article number > see price-listsee price-listsee price-listsee price-listsee price-list ClassR160R160R160R160R160 Overload flow rateQ4m > 3 /h2031.35078.8125 Continuous flow rateQ3m > 3 /h16254063100 Flow speedv (Q3)m/s9.18.68.88.98.4 Transitional flow rate Q2m > 3...

Open the catalog to page 4
AMFLO® MAG Pro - 5

General Configuration interface for programming via PCyes Measuring accuracy0.4 % of reading in range of 1 - 10 m/s Current output0/4 - 20 mA, load 800 Ohm Digital output- Output: max 1250 Hz, 100 mA, 40 VDC / open collector (programmable) - Status: 100 mA, 40 VDC, open collector (programmable) Bidirectionalyes Empty pipe detectionyes Min. conductivity20 S/cm All outputs electrically isolated from power supplyyes Ambient temperature0...50 հC ProtectionIP 67 Compact version with graphical display, 16 charac- Art. No. ters x 2 lines, local configuration via internal keys - Power supply 90 to...

Open the catalog to page 5
AMFLO® MAG Pro - 7

% 543210-1-2-3-4-5 Q1 Q2 Q3 Q4 Error tolerancesTypical error curve > 543210-1-2-3-4-5 qi qp qs Error tolerancesTypical error curve%

Open the catalog to page 7
