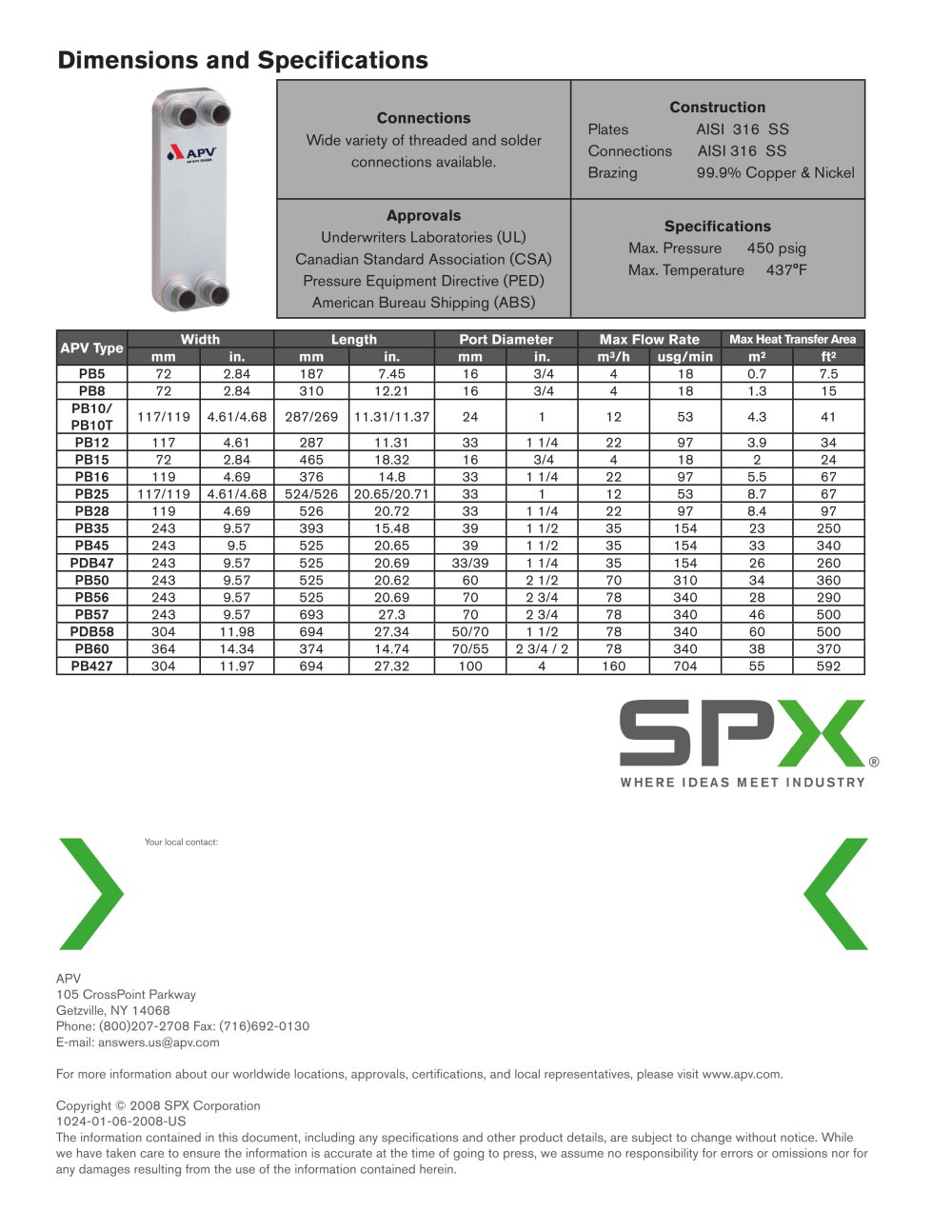

Dimensions and Specifications


	Connections Wide variety of threaded and solder connections available.	Construction Plates AISI 316 SS Connections AISI 316 SS Brazing 99.9% Copper & Nickel
	Approvals Underwriters Laboratories (UL) Canadian Standard Association (CSA) Pressure Equipment Directive (PED) American Bureau Shipping (ABS)	Specifications Max. Pressure 450 psig Max. Temperature 437°F

' *\aPV


	Width		Length		Por	t Diame		ter	Max Flow Rate		Max Heat Transfer Area
			mm					in.	m³/h		m²
PB5	72	2.84	187	745	16		3/4		4	18	07	7.5
PB8	72	2.84	310	12.21	16		3/4		4	18	1.3	15
PB10/ PB10T	117/119	4.61/4.68	287/269	11.31/11.37	24		1		12	53	4.3	41
PB12	117	4.61	287	11.31	33		1 1/4		22	97	3.9	34
PB15	72	2.84	465	18.32	16		3/4		4	18	CM	24
PB16	119	4.69	376	14.8	33		1 1/4		22	97	5.5	67
PB25	117/119	4.61/4.68	524/526	20.65/20.71	33		1		12	53	8.7	67
PB28	119	4.69	526	20.72	33		1 1/4		22	97	8.4	97
PB35	243	9.57	393	15.48	39		1 1/2		35	154	23	250
PB45	243	9.5	525	20.65	39		1 1/2		35	154	33	340
PDB47	243	9.57	525	20.69	33/39		1 1/4		35	154	26	260
PB50	243	9.57	525	20.62	60		2 1/2		70	310	34	360
PB56	243	9.57	525	20.69	70		2 3/4		78	340	28	290
PB57	243	9.57	693	27.3	70		2 3/4		78	340	46	500
PDB58	304	11.98	694	27.34	50/70		1 1/2		78	340	60	500
PB60	364	14.34	374	14.74	70/55		2 3/4/2		78	340	38	370
PB427	304	11.97	694	27.32	100		4		160	704	55	592

Your local contact:

APV

105 CrossPoint Parkway Getzville, NY 14068

Phone: (800)207-2708 Fax: (716)692-0130 E-mail: answers.us@apv.com

For more information about our worldwide locations, approvals, certifications, and local representatives, please visit www.apv.com.

The information contained in this document, including any specifications and other product details, are subject to change without notice. While we have taken care to ensure the information is accurate at the time of going to press, we assume no responsibility for errors or omissions nor for any damages resulting from the use of the information contained herein.
