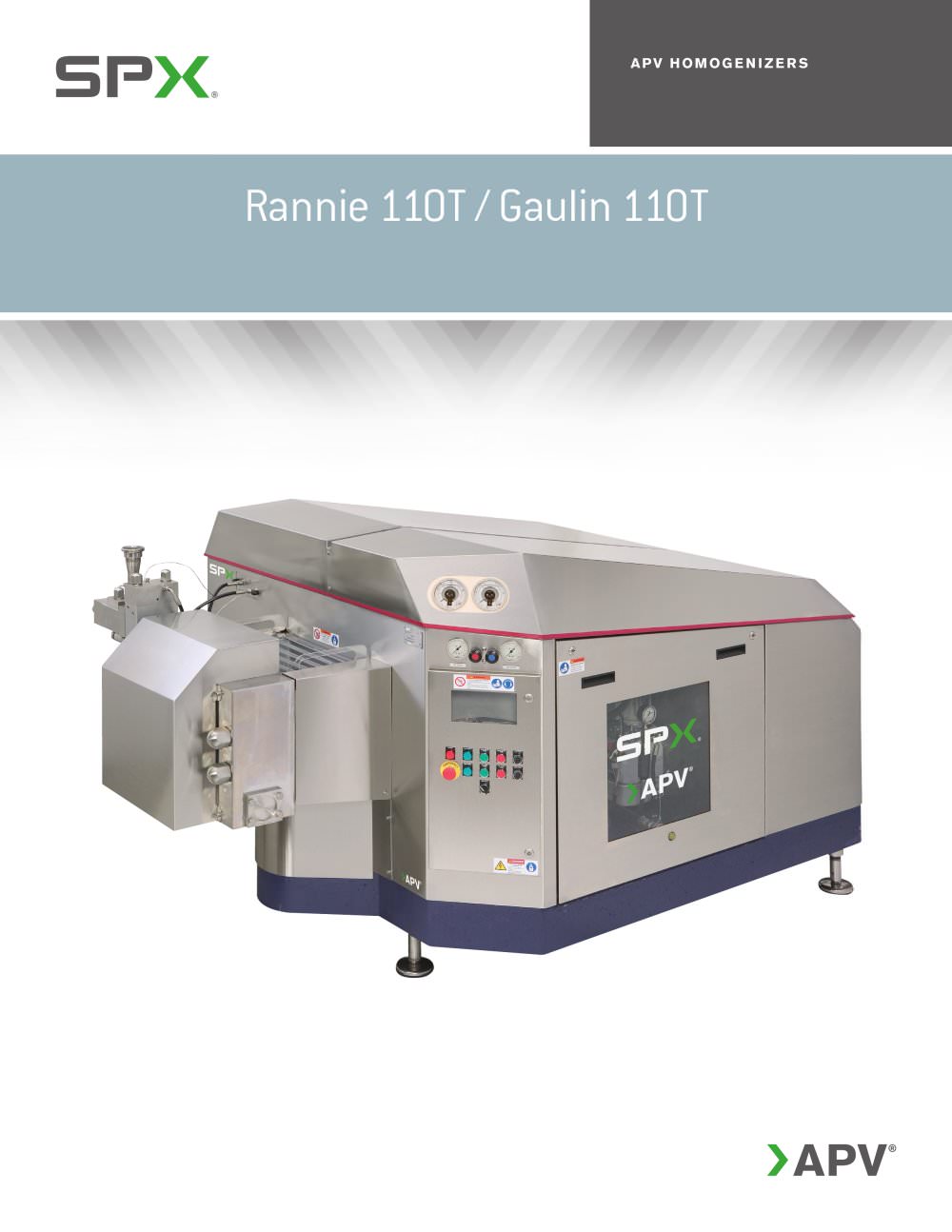

The APV 1 10T homogenizer is a three-plunger, reciprocating pump, fitted with a single-stage APV Homogenizer Th e Liqu i d E n d i nclu d e s homogenizing valve (two-stage optional) with • Pressure gauge manually adjustable hydraulic actuators. • Pressure relief valve • Weld-stub product connections The APV 1 10T incorporates a durable slow- speed Power End in a low and compact design, • Internal gear and self-adjusting belt tightening mounted on a concrete sub-frame that reduces • External plate heat exchanger with temperature transmitter vibrations and noise. T h e I n s t r u m e n tat i o...

One Point of Operation • Gauges with capillary tubes placed directly above the controls. • Direct visibility to points of control. • All internal indicators placed behind a window pane. Oversized Plate Heat Exchanger for low cooling water consumption External Plate Heat Exchanger with solenoid valve control to reduce water consumption Mechanical Hydraulic Valves as standard Electrical Connection Box to be serviced from the outside R annie T hree - P iece Valve H o u sing Double-sized 5 m Absolute Filter with filter service-indicator for improved life of oil Optional extension for noise reduction...

Based in Charlotte, North Carolina, SPX Corporation (NYSE: SPW) is a global Fortune 500 multi-industry manufacturing leader. For more information, please visit www.spx.com 611 Sugar Creek Road Delavan, WI 53115 P: (262) 728-1900 or (800) 252-5200 F: (262) 728-4904 or (800) 252-5012 E: [email protected] SPX reserves the right to incorporate our latest design and material changes without notice or obligation. Design features, materials of construction and dimensional data, as described in this bulletin, are provided for your information only and should not be relied upon unless confirmed in writing....
