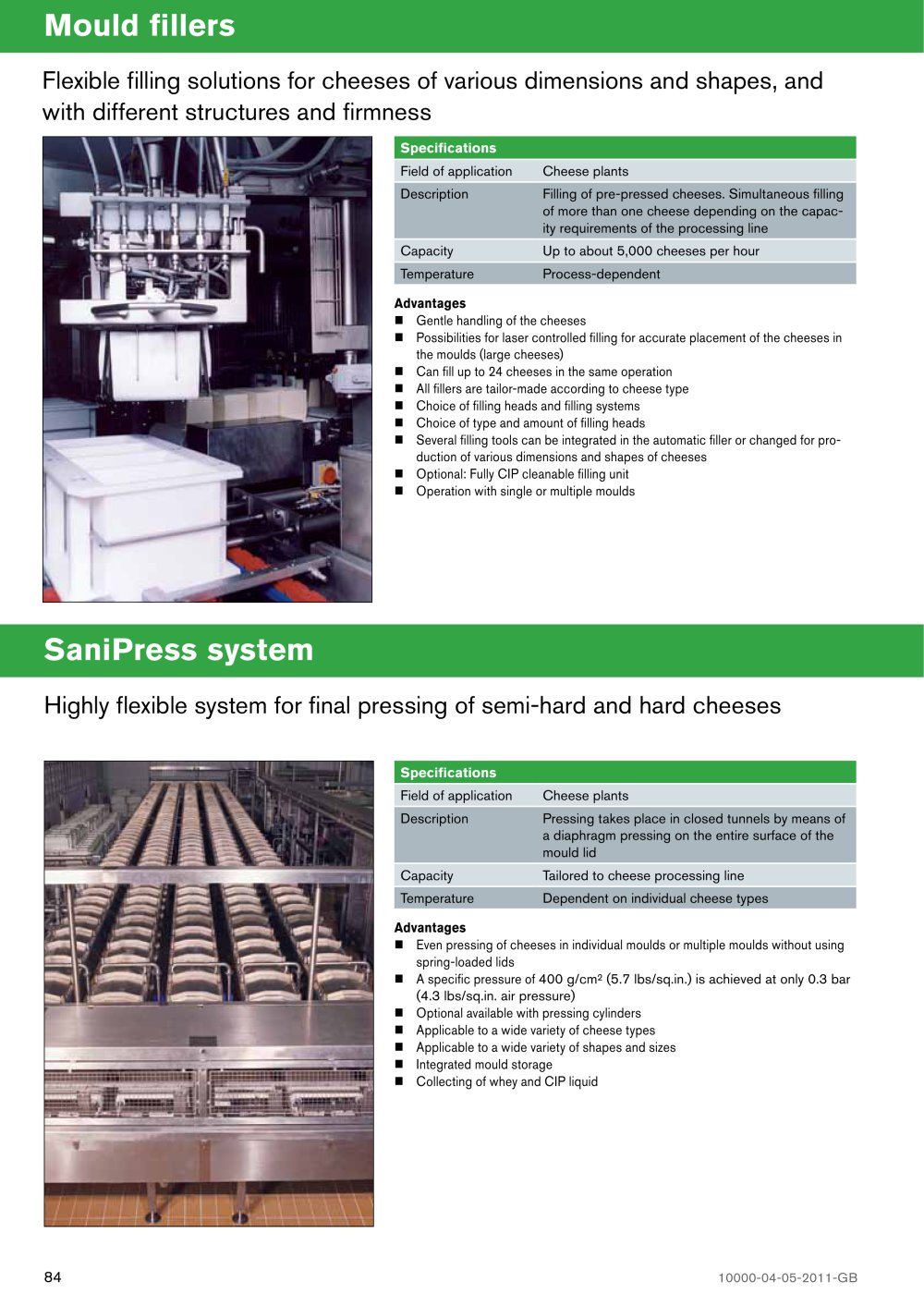

Mould fillers
Flexible filling solutions for cheeses of various dimensions and shapes, and with different structures and firmness
Specifications
Field of application Description
Cheese plants
Filling of pre-pressed cheeses. Simultaneous filling of more than one cheese depending on the capac­ity requirements of the processing line
Up to about 5,000 cheeses per hour
Process-dependent
Capacity Temperature
Advantages
■ Gentle handling of the cheeses
■ Possibilities for laser controlled filling for accurate placement of the cheeses in the moulds (large cheeses)
■ Can fill up to 24 cheeses in the same operation
■ All fillers are tailor-made according to cheese type
■ Choice of filling heads and filling systems
■ Choice of type and amount of filling heads
■ Several filling tools can be integrated in the automatic filler or changed for pro­duction of various dimensions and shapes of cheeses
■ Optional: Fully CIP cleanable filling unit
■ Operation with single or multiple moulds
SaniPress system
Highly flexible system for final pressing of semi-hard and hard cheeses
Specifications
Field of application Description
Capacity Temperature
Cheese plants
Pressing takes place in closed tunnels by means of a diaphragm pressing on the entire surface of the mould lid
Tailored to cheese processing line Dependent on individual cheese types
Advantages
■ Even pressing of cheeses in individual moulds or multiple moulds without using spring-loaded lids
■ A specific pressure of 400 g/cm2 (5.7 lbs/sq.in.) is achieved at only 0.3 bar (4.3 lbs/sq.in. air pressure)
■ Optional available with pressing cylinders
■ Applicable to a wide variety of cheese types
■ Applicable to a wide variety of shapes and sizes
■ Integrated mould storage
■ Collecting of whey and CIP liquid
84
