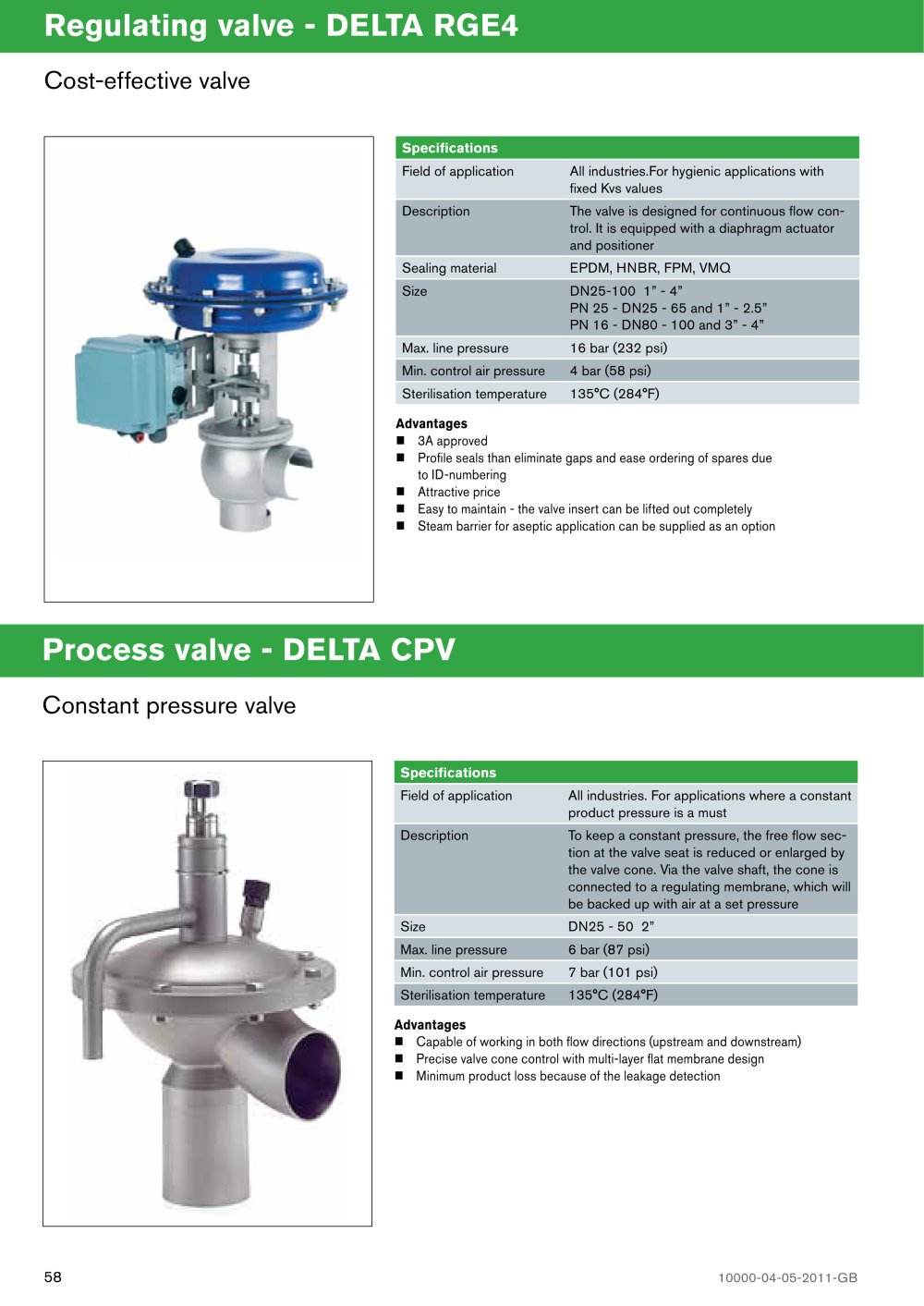

Regulating valve - DELTA RGE4

Cost-effective valve

Specifications

Field of application Description

All industries.For hygienic applications with fixed Kvs values

The valve is designed for continuous flow control. It is equipped with a diaphragm cylinder and positioner

EPDM, HNBR, FPM, VMQ

DN25-100 1" - 4" PN 25 - DN25 - 65 and 1" - 2.5" PN 16 - DN80 - 100 and 3" - 4"

16 bar (232 psi)

4 bar (58 psi)

135°C (284°F)

Sealing material Size

Max. line pressure

Min. control air pressure

Sterilisation temperature

Advantages

3A approved

Profile seals than eliminate gaps and ease ordering of spares due to ID-numbering Attractive price

Easy to maintain - the valve insert can be lifted out completely Steam barrier for aseptic application can be supplied as an option

■ ■ ■

Constant pressure valve

Specifications

Field of application

All industries. For applications where a constant product pressure is a must

To keep a constant pressure, the free flow section at the valve seat is reduced or enlarged by the valve cone. Via the valve shaft, the cone is

connected to a regulating membrane, which will

be backed up with air at a set pressure DN25 - 50 2"

6 bar (87 psi)

7 bar (101 psi) 135°C (284°F)

Description

Size

Max. line pressure Min. control air pressure Sterilisation temperature

Advantages

■ Capable of working in both flow directions (upstream and downstream)

■ Precise valve cone control with multi-layer flat membrane design

■ Minimum product loss because of the leakage detection
