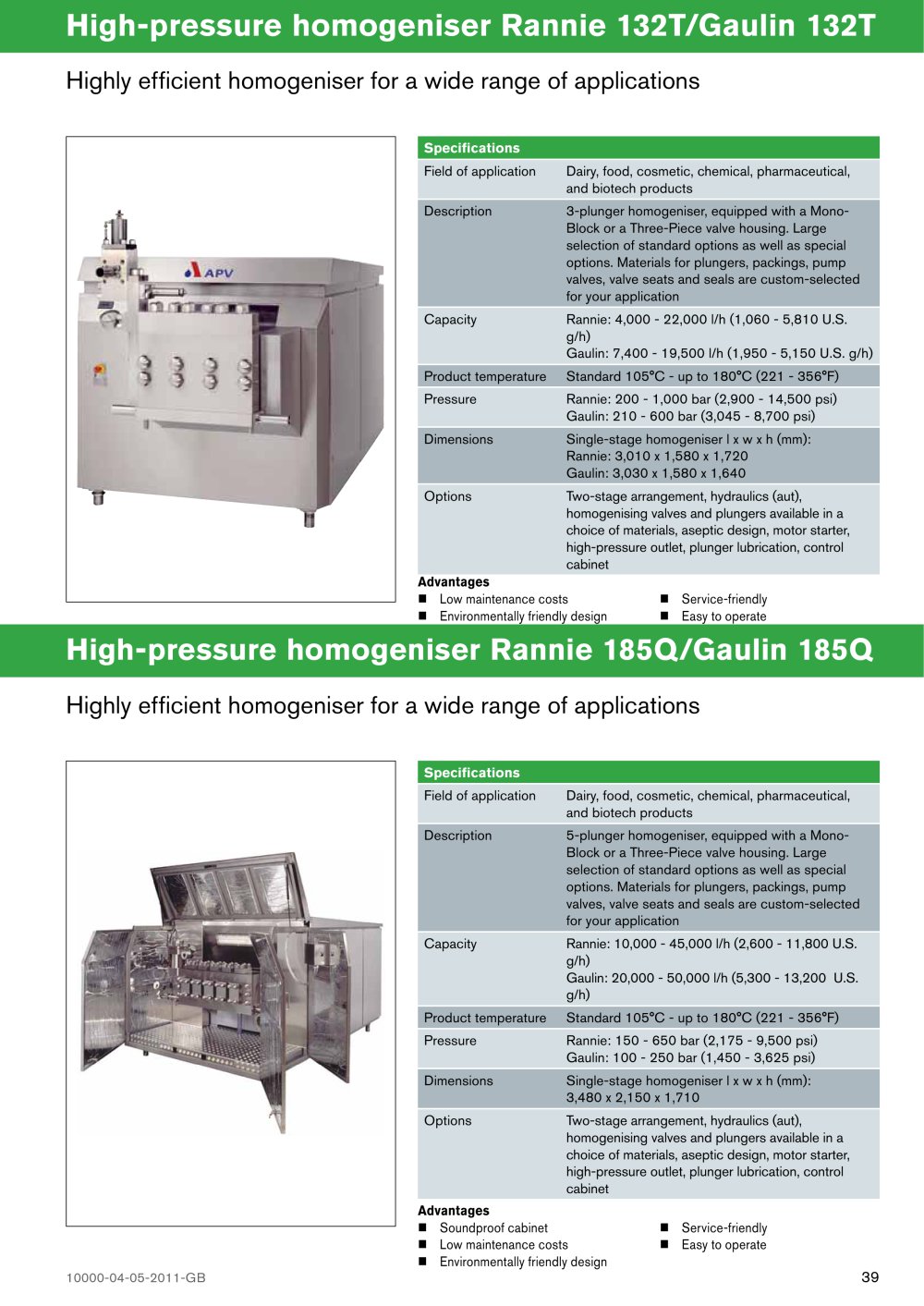

| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | High-pressure homogeniser Rannie 132T/Gaulin 132T | | | | | | | | | | Highly efficient homogeniser for a wide range of applications | | | | | | | | | | Specifications | | | | | | | | | | Field of application | | Dairy, food, cosmetic, chemical, pharmaceutical, and biotech products 3-plunger homogeniser, equipped with a MonoBlock or a Three-Piece valve housing. Large selection of standard options as well as special options. Materials for plungers, packings, pump valves, valve seats and seals are custom-selected for your application Rannie: 4,000 - 22,000 l/h (1,060 - 5,810 U.S. g/h) Gaulin: 7,400 - 19,500 l/h (1,950 - 5,150 U.S. g/h) Standard 105°C - up to 180°C (221 - 356°F) Rannie: 200 - 1,000 bar (2,900 - 14,500 psi) Gaulin: 210 - 600 bar (3,045 - 8,700 psi) Single-stage homogeniser l x w x h (mm): Rannie: 3,010 x 1,580 x 1,720 Gaulin: 3,030 x 1,580 x 1,640 Two-stage arrangement, hydraulics (aut), homogenising valves and plungers available in a choice of materials, aseptic design, motor starter, high-pressure outlet, plunger lubrication, control cabinet | | | | | | | | | | Description | | | | | | | | | | Capacity Product temperature Pressure Dimensions Options | | | | | | | | | | | | | | Advantages ■ Low maintenance costs ■ Environmentally friendly design | | | | | | ■ Service-friendly ■ Easy to operate | | | | | | | | | | High-pressure homogeniser Rannie 185Q/Gaulin 185Q | | | | | | | | | | Highly efficient homogeniser for a wide range of applications | | | | | | | | | | Specifications | | | | | | | | | | Field of application | | Dairy, food, cosmetic, chemical, pharmaceutical, and biotech products 5-plunger homogeniser, equipped with a MonoBlock or a Three-Piece valve housing. Large selection of standard options as well as special options. Materials for plungers, packings, pump valves, valve seats and seals are custom-selected for your application Rannie: 10,000 - 45,000 l/h (2,600 - 11,800 U.S. g/h) Gaulin: 20,000 - 50,000 l/h (5,300 - 13,200 U.S. g/h) Standard 105°C - up to 180°C (221 - 356°F) Rannie: 150 - 650 bar (2,175 - 9,500 psi) Gaulin: 100 - 250 bar (1,450 - 3,625 psi) Single-stage homogeniser l x w x h (mm): 3,480 x 2,150 x 1,710 Two-stage arrangement, hydraulics (aut), homogenising valves and plungers available in a choice of materials, aseptic design, motor starter, high-pressure outlet, plunger lubrication, control cabinet | | | | | | | | | | Description | | | | | | | | | | Capacity | | | | | | | | | | Product temperature Pressure | | | | | | | | | | Options | | | | | | | | | | | | | | Advantages ■ Soundproof cabinet ■ Low maintenance costs ■ Environmentally friendly design | | | | | | ■ Service-friendly ■ Easy to operate | | | | | | | | | | | | | | 39 | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
|
