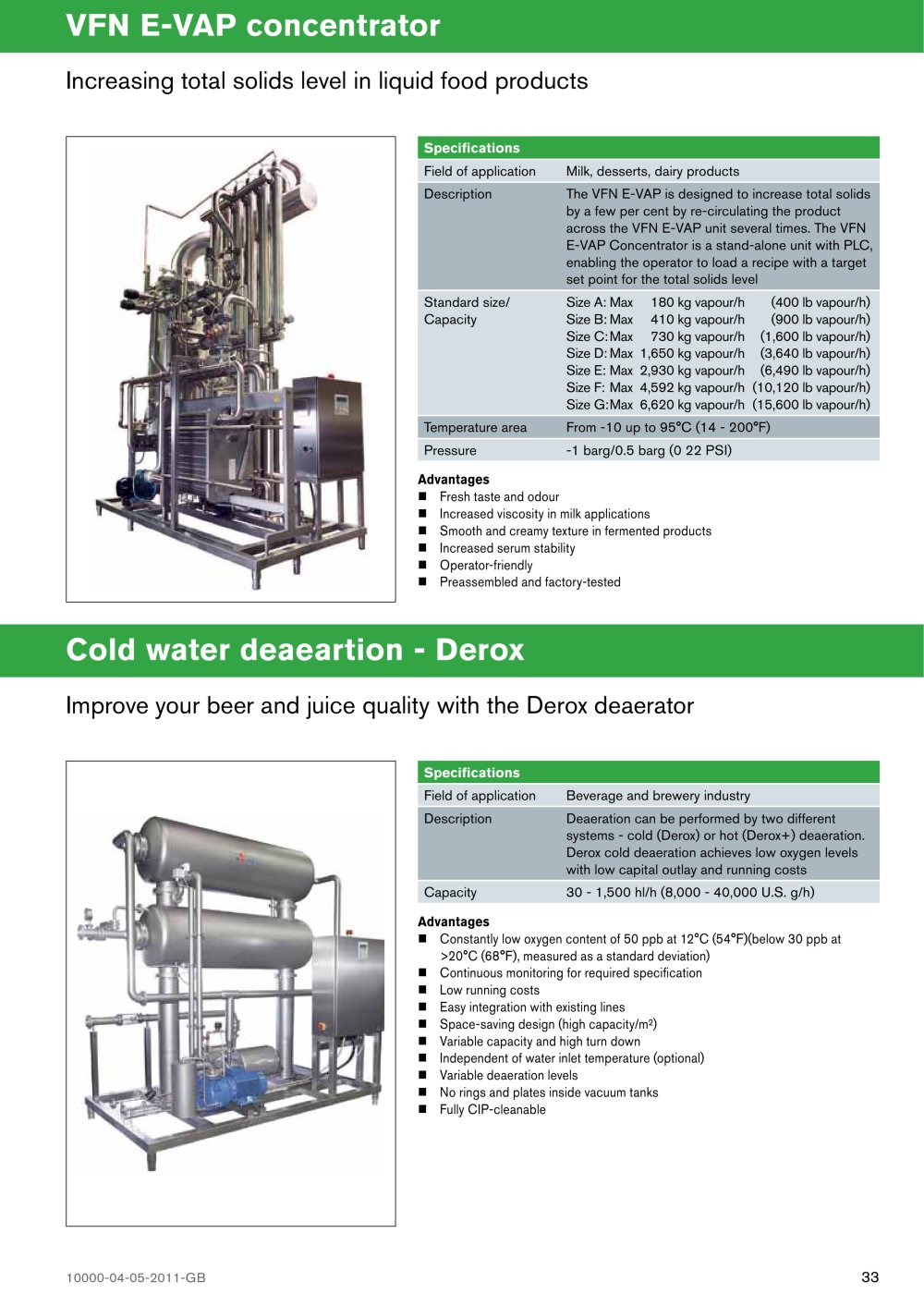

| | | Increasing total solids level in liquid food products | | |
| | | |
| | | Specifications | | |
| | | |
| | | Field of application Description | | Milk, desserts, dairy products The VFN E-VAP is designed to increase total solids by a few per cent by re-circulating the product across the VFN E-VAP unit several times. The VFN E-VAP Concentrator is a stand-alone unit with PLC MANUFACTURERS, enabling the operator to load a recipe with a target set point for the total solids level Size A: Max 180 kg vapour/h (400 lb vapour/h) Size B: Max 410 kg vapour/h (900 lb vapour/h) Size C: Max 730 kg vapour/h (1,600 lb vapour/h) | | |
| | | |
| | | Standard size/ Capacity | | |
| | | |
| | | |
| | | (3,640 lb vapour/h) (6,490 lb vapour/h) | | |
| | | Size D: Max 1,650 kg vapour/h Size E: Max 2,930 kg vapour/h | | |
| | | |
| | | Size F: Max 4,592 kg vapour/h (10,120 lb vapour/h) Size G: Max 6,620 kg vapour/h (15,600 lb vapour/h) From -10 up to 95°C (14 - 200°F) -1 barg/0.5 barg (0 22 PSI) | | |
| | | Temperature area Pressure Advantages | | |
| | | |
| | | |
| | | Fresh taste and odour Increased viscosity in milk applications Smooth and creamy texture in fermented products Increased serum stability Operator-friendly Preassembled and factory-tested | | |
| | | |
| | | Cold water deaeartion - Derox | | |
| | | |
| | | Improve your beer and juice quality with the Derox deaerator | | |
| | | |
| | | Specifications | | |
| | | |
| | | Field of application Description | | Beverage and brewery industry Deaeration can be performed by two different systems - cold (Derox) or hot (Derox+) deaeration. Derox cold deaeration achieves low oxygen levels with low capital outlay and running costs 30 - 1,500 hl/h (8,000 - 40,000 U.S. g/h) | | |
| | | |
| | | Capacity
| | |
| | | |
| | | Advantages ■ Constantly low oxygen content of 50 ppb at 12°C (54°F)(below 30 ppb at >20°C (68°F), measured as a standard deviation) ■ Continuous monitoring for required specification ■ Low running costs ■ Easy integration with existing lines ■ Space-saving design (high capacity/m2) ■ Variable capacity and high turn down ■ Independent of water inlet temperature (optional) ■ Variable deaeration levels ■ No rings and plates inside vacuum tanks ■ Fully CIP-cleanable | | |
| | | |
| | | 33 | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
