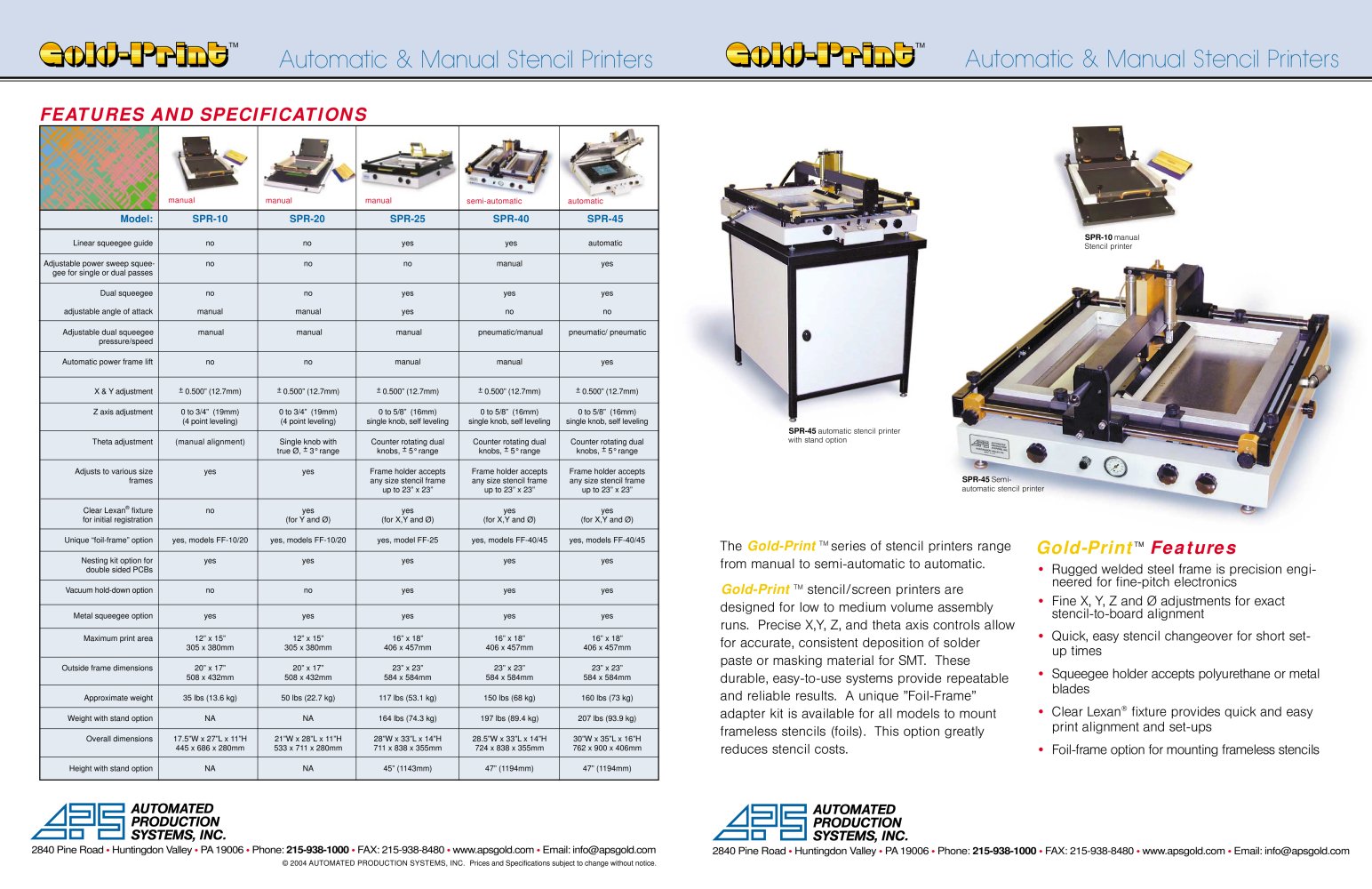

Automatic & Manual Stencil Printers

FEATURES AND SPECIFICATIONS


	ft' manual	manual	manual	semi-automatic	automatic
Model:	SPR-10	SPR-20	SPR-25	SPR-40	SPR-45
Linear squeegee guide	no	no	yes	yes	automatic
Adjustable power sweep squeegee for single or dual passes	no	no	no	manual	yes
Dual squeegee adjustable angle of attack	no manual	no manual	yes yes	yes no	yes no
Adjustable dual squeegee pressure/speed	manual	manual	manual	pneumatic/manual	pneumatic/ pneumatic
Automatic power frame lift	no	no	manual	manual	yes
X & Y adjustment	±0.500" (12.7mm)	^± 0.500" (12.7mm)	^± 0.500" (12.7mm)	^± 0.500" (12.7mm)	^± 0.500" (12.7mm)
Z axis adjustment	0 to 3/4" (19mm) (4 point leveling)	0 to 3/4" (19mm) (4 point leveling)	0 to 5/8" (16mm) single knob, self leveling	0 to 5/8" (16mm) single knob, self leveling	0 to 5/8" (16mm) single knob, self leveling
Theta adjustment	(manual alignment)	Single knob with true 0, ± 3° range	Counter rotating dual knobs, ^± 5° range	Counter rotating dual knobs, ^± 5° range	Counter rotating dual knobs, ^± 5° range
Adjusts to various size frames	yes	yes	Frame holder accepts any size stencil frame up to 23" x 23"	Frame holder accepts any size stencil frame up to 23" x 23"	Frame holder accepts any size stencil frame up to 23" x 23"
Clear Lexan® fixture for initial registration	no	yes (for Y and 0)	yes (for X,Y and 0)	yes (for X,Y and 0)	yes (for X,Y and 0)
Unique "foil-frame" option	yes, models FF-10/20	yes, models FF-10/20	yes, model FF-25	yes, models FF-40/45	yes, models FF-40/45
Nesting kit option for double sided PCBs	yes	yes	yes	yes	yes
Vacuum hold-down option	no	no	yes	yes	yes
Metal squeegee option	yes	yes	yes	yes	yes
Maximum print area	12" x 15" 305 x 380mm	12" x 15" 305 x 380mm	16" x 18" 406 x 457mm	16" x 18" 406 x 457mm	16" x 18" 406 x 457mm
Outside frame dimensions	20" x 17" 508 x 432mm	20" x 17" 508 x 432mm	23" x 23" 584 x 584mm	23" x 23" 584 x 584mm	23" x 23" 584 x 584mm
Approximate weight	35 lbs (13.6 kg)	50 lbs (22.7 kg)	117 lbs (53.1 kg)	150 lbs (68 kg)	160 lbs (73 kg)
Weight with stand option	NA	NA	164 lbs (74.3 kg)	197 lbs (89.4 kg)	207 lbs (93.9 kg)
Overall dimensions	17.5"W x 27"Lx 11"H 445 x 686 x 280mm	21"W x 28"Lx 11"H 533 x 711 x 280mm	28"W x 33"Lx 14"H 711 x 838 x 355mm	28.5"W x 33"Lx 14"H 724 x 838 x 355mm	30"W x 35"Lx 16"H 762 x 900 x 406mm
Height with stand option	NA	NA	45" (1143mm)	47" (1194mm)	47" (1194mm)

spr-45 automatic stencil printer with stand option

The Gold-Print^TM series of stencil printers range from manual to semi-automatic to automatic.

Gold-Print ™ stencil/screen printers are designed for low to medium volume assembly runs. Precise X,Y, Z, and theta axis controls allow for accurate, consistent deposition of solder paste or masking material for SMT. These durable, easy-to-use systems provide repeatable and reliable results. A unique "Foil-Frame" adapter kit is available for all models to mount frameless stencils (foils). This option greatly reduces stencil costs.

tures

Rugged welded steel frame is precision engineered for fine-pitch electronics

Fine X, Y, Z and 0 adjustments for exact stencil-to-board alignment

Quick, easy stencil changeover for short setup times

Squeegee holder accepts polyurethane or metal blades

Clear Lexan® fixture provides quick and easy print alignment and set-ups

Foil-frame option for mounting frameless stencils

AUTOMATED PRODUCTION SYSTEMS, INC.

2840 Pine Road • Huntingdon Valley • PA 19006 • Phone: 215-938-1000 • FAX: 215-938-8480 • www.apsgold.com • Email: info@apsgold.com

4am

AUTOMATED PRODUCTION

SYSTEMS, INC.

2840 Pine Road • Huntingdon Valley • PA 19006 • Phone: 215-938-1000« FAX: 215-938-8480 • www.apsgold.com • Email: info@apsgold.com
