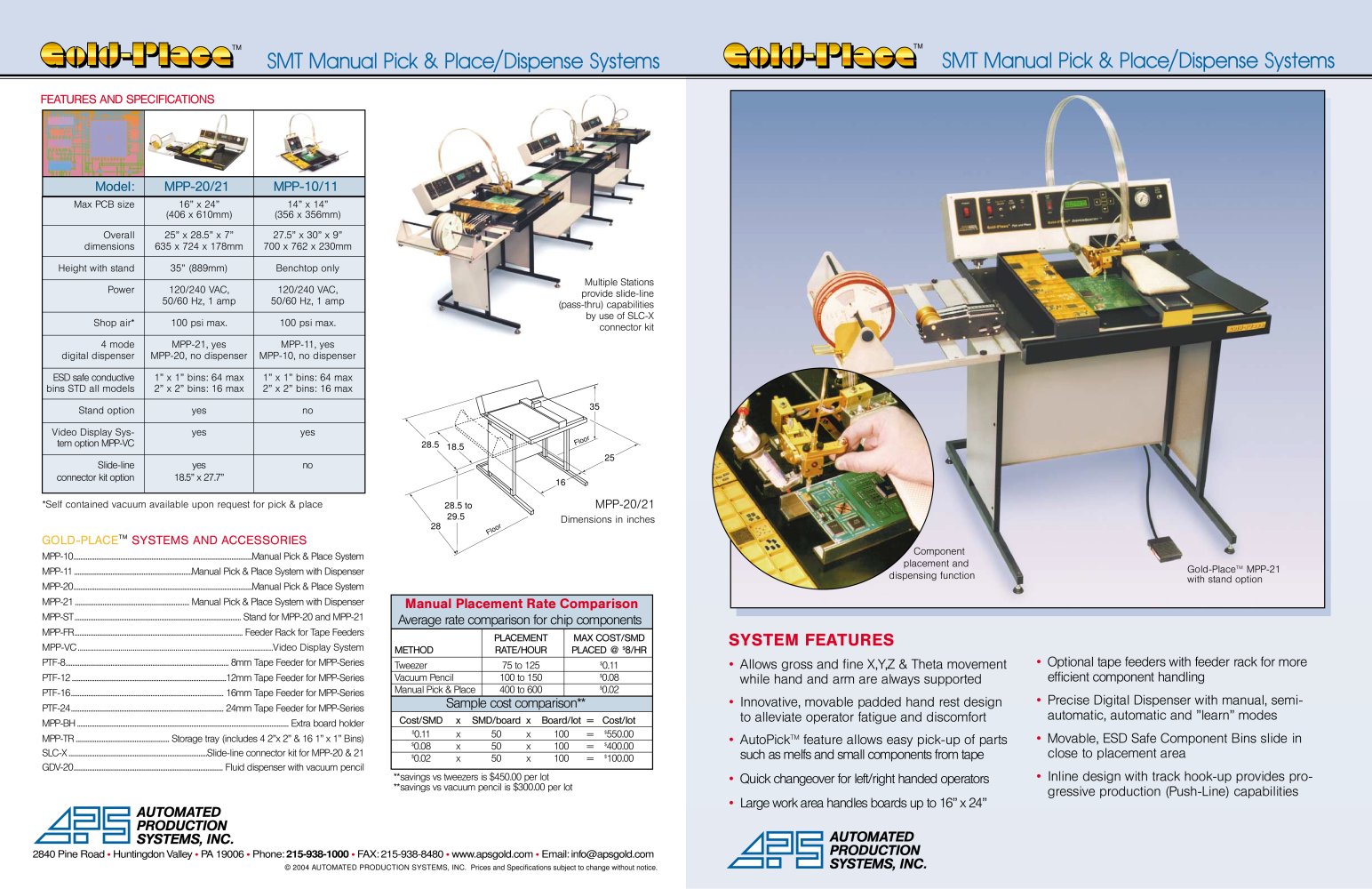

SMT Manual Pick & Place/Dispense Systems G^QdMPÛQQQ™ SMT Manual Pick & Place/Dispense Systems

FEATURES AND SPECIFICATIONS



		,_v
Model:	MPP-20/21	MPP-10/11
Max PCB size	16" x 24" (406 x 610mm)	14" x 14" (356 x 356mm)
Overall dimensions	25" x 28.5" x 7" 635 x 724 x 178mm	27.5" x 30" x 9" 700 x 762 x 230mm
Height with stand	35" (889mm)	Benchtop only
Power	120/240 VAC, 50/60 Hz, 1 amp	120/240 VAC, 50/60 Hz, 1 amp
Shop air*	100 psl max.	100 psi max.
4 mode digital dispenser	MPP-21, yes MPP-20, no dispenser	MPP-11, yes MPP-10, no dispenser
ESD safe conductive bins STD all models	1" x 1" bins: 64 max 2" x 2" bins: 16 max	1" x 1" bins: 64 max 2" x 2" bins: 16 max
Stand option	yes	no
Video Display System option MPP-VC	yes	yes
Slide-line connector kit option	yes 18.5" x 27.7"	no

Multiple Stations provide slide-line (pass-thru) capabilities by use of SLC-X connector kit

MPP-20/21

Dimensions in inches

*Self contained vacuum available upon request for pick & place

GOLD-PLACE™ SYSTEMS AND ACCESSORIES

MPP-10.......................................................................................................Manual Pick & Place System

MPP-11....................................................................Manual Pick & Place System with Dispenser

MPP-20.......................................................................................................Manual Pick & Place System

MPP-21..................................................................Manual Pick & Place System with Dispenser

MPP-ST................................................................................................Stand for MPP-20 and MPP-21

MPP-FR.................................................................................................Feeder Rack for Tape Feeders

MPP-VC................................................................................................Video Display System

PTF-8..............................................................................................8mm Tape Feeder for MPP-Series

PTF-12 .........................................................................................12mm Tape Feeder for MPP-Series

PTF-16........................................................................................16mm Tape Feeder for MPP-Series

PTF-24........................................................................................24mm Tape Feeder for MPP-Series

MPP-BH..........................................................................................................................Extra board holder

MPP-TR......................................................Storage tray (includes 4 2"x 2" & 16 1" x 1" Bins)

SLC-X................................................................................Slide-line connector kit for MPP-20 & 21

GDV-20......................................................................................Fluid dispenser with vacuum pencil

Manual Placement Rate Comparison

Average rate comparison for chip components


	PLACEMENT	MAX COST/SMD
METHOD	RATE/HOUR	PLACED @ $8/HR
Tweezer	75 to 125	$0.11
Vacuum Pencil	100 to 150	$0.08
Manual Pick & Place	400 to 600	$0.02

SYSTEM FEATURES

• Allows gross and fine X,Y,Z & Theta movement while hand and arm are always supported

• Innovative, movable padded hand rest design to alleviate operator fatigue and discomfort

• AutoPick^TM feature allows easy pick-up of parts such as melfs and small components from tape

• Quick changeover for left/right handed operators

• Large work area handles boards up to 16" x 24"

Optional tape feeders with feeder rack for more efficient component handling

Precise Digital Dispenser with manual, semiautomatic, automatic and "learn" modes

Movable, ESD Safe Component Bins slide in close to placement area

Inline design with track hook-up provides progressive production (Push-Line) capabilities

Sample cost comparison**

Cost/SMD x SMD/board x Board/lot

Cost/lot

^$0.11

^$550.00

100

^$0.08

^$400.00

100

^$0.02

^$100.00

100

**savings vs tweezers is $450.00 per lot **savings vs vacuum pencil is $300.00 per lot

4P§

automated production systems, inc.

automated production systems, inc.

2840 Pine Road • Huntingdon Valley • PA 19006 • Phone: 215-938-1000 • FAX: 215-938-8480 • www.apsgold.com • Email: info@apsgold.com
