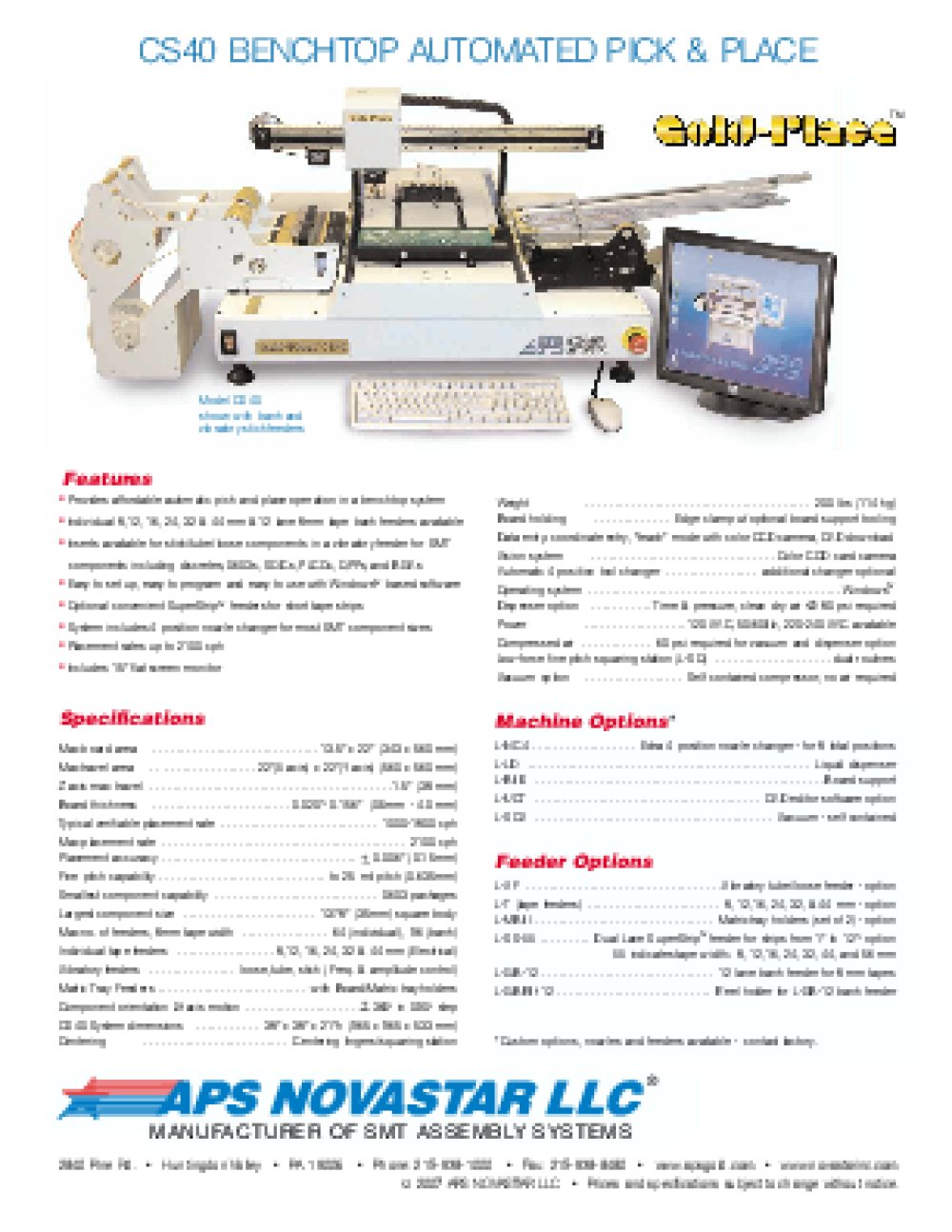

CS40 BENCHTOP AUTOMATED PICK & PLACE

TM

Features

•

Provides affordable automatic pick and place operation in a benchtop system

•

Individual 8, 12, 16, 24, 32 & 44 mm & 12 lane 8mm tape bank feeders available

•

Inserts available for stick/tube/loose components in a vibratory feeder for SMTcomponents including discretes, 0603s, SOICs, PLCCs, QPPs, and BGAs

•

Easy to set up, easy to program and easy to use with Windows
TM based software
TM

•

Optional convenient SuperStrip
TM feeders for short tape strips Dispenser option . . . . . . . . . . .Time & pressure, clean dry air @ 80 psi requiredTPower . . . . . . . . . . . . . . . . . .120 VAC, 50/60Hz, 220-240 VAC availableTCompressed air . . . . . . . . . . . .60 psi required for vacuum and dispenser optionTLow-force fine pitch squaring station (L-SQ) . . . . . . . . . . . . . . . . . . . .dual routinesTVacuum option . . . . . . . . . . . . . . . . .Self contained compressor, no air required

•

System includes 4 position nozzle changer for most SMT component sizes

•

Placement rates up to 2100 cph

•

Includes 15” flat screen monitor

Specifications Machine Options *

Max board area . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13.5” x 22” (343 x 560 mm) Max travel area.. . . . . . . . . . . . . . . . .22”(X axis) x 22”(Y axis) (560 x 560 mm)TZ axis max travel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.5” (38 mm)TBoard thickness . . . . . . . . . . . . . . . . . . . . . . . .0.020”- 0.156” (0.5mm - 4.0 mm)TTypical verifiable placement rate . . . . . . . . . . . . . . . . . . . . . . . . . . .1000-1800 cphTMax placement rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2100 cphTPlacement accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+ L-NC4 . . . . . . . . . . . . . . . . . .Extra 4 position nozzle changer - for 8 total positionsL-LD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Liquid dispenser TL-BHS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Board supportTL-UCT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .CAD editor software optionTL-SCV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Vacuum - self contained 0.006” (0.15mm) Fine pitch capability . . . . . . . . . . . . . . . . . . . . . . . . . . . . .to 25 mil pitch (0.635mm)TSmallest component capability . . . . . . . . . . . . . . . . . . . . . . . . . . . .0603 packages TLargest component size . . . . . . . . . . . . . . . . . . . . . . .1.378” (35mm) square bodyTMax no. of feeders, 8mm tape width . . . . . . . . . . . . . . .64 (individual), 96 (bank)TIndividual tape feeders . . . . . . . . . . . . . . . . .8, 12, 16, 24, 32 & 44 mm (Electrical)TVibratory feeders . . . . . . . . . . . . . . .loose, tube, stick ( Freq. & amplitude control)TMatrix Tray Feeders . . . . . . . . . . . . . . . . . . . . . . . . . .with Board/Matrix tray holdersTComponent orientation Ø-axis motion . . . . . . . . . . . . . . . . . . .+

Feeder Options

L-VF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Vibratory tube/loose feeder - optionTL-T (tape feeders) . . . . . . . . . . . . . . . . . . . . . . .8, 12, 16, 24, 32, & 44 mm - optionTL-MBH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Matrix tray holders (set of 2) - optionTL-SS-XX . . . . . . . . .Dual Lane SuperStrip
TM feeder for strips from 1” to 12”- optionXX indicates tape width: 8, 12, 16, 24, 32, 44, and 56 mmL-GB-12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 lane bank feeder for 8 mm tapesTL-GBRH-12 . . . . . . . . . . . . . . . . . . . . . . . . . . .Reel holder for L-GB-12 bank feeder*Custom options, nozzles and feeders available - contact factory.TWeight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .200 lbs (114 kg)Board holding . . . . . . . . . . . . .Edge clamp w/optional board support tooling TData entry: coordinate entry, “teach” mode with color CCD camera, CAD downloadTVision system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Color CCD card cameraTAutomatic 4 position tool changer . . . . . . . . . . . . . . . .additional changer optionalTOperating system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Windows 360°in 0.90°stepCS40 System dimensions . . . . . . . . . . .38” x 38” x 21”h (965 x 965 x 533 mm)TCentering . . . . . . . . . . . . . . . . . . . . . . . . .Centering fingers/squaring stationTModel CS40 shown with bank andTvibratory stick feeders

®

MANUFACTURER OF SMT ASSEMBLY SYSTEMS

2840 Pine Rd.• Huntingdon Valley• PA 19006 • Phone: 215-938-1000 • Fax: 215-938-8480• www.apsgold.com• www.novastarinc.com © 2007 APS NOVASTAR LLC • Prices and specifications subject to change without notice.
