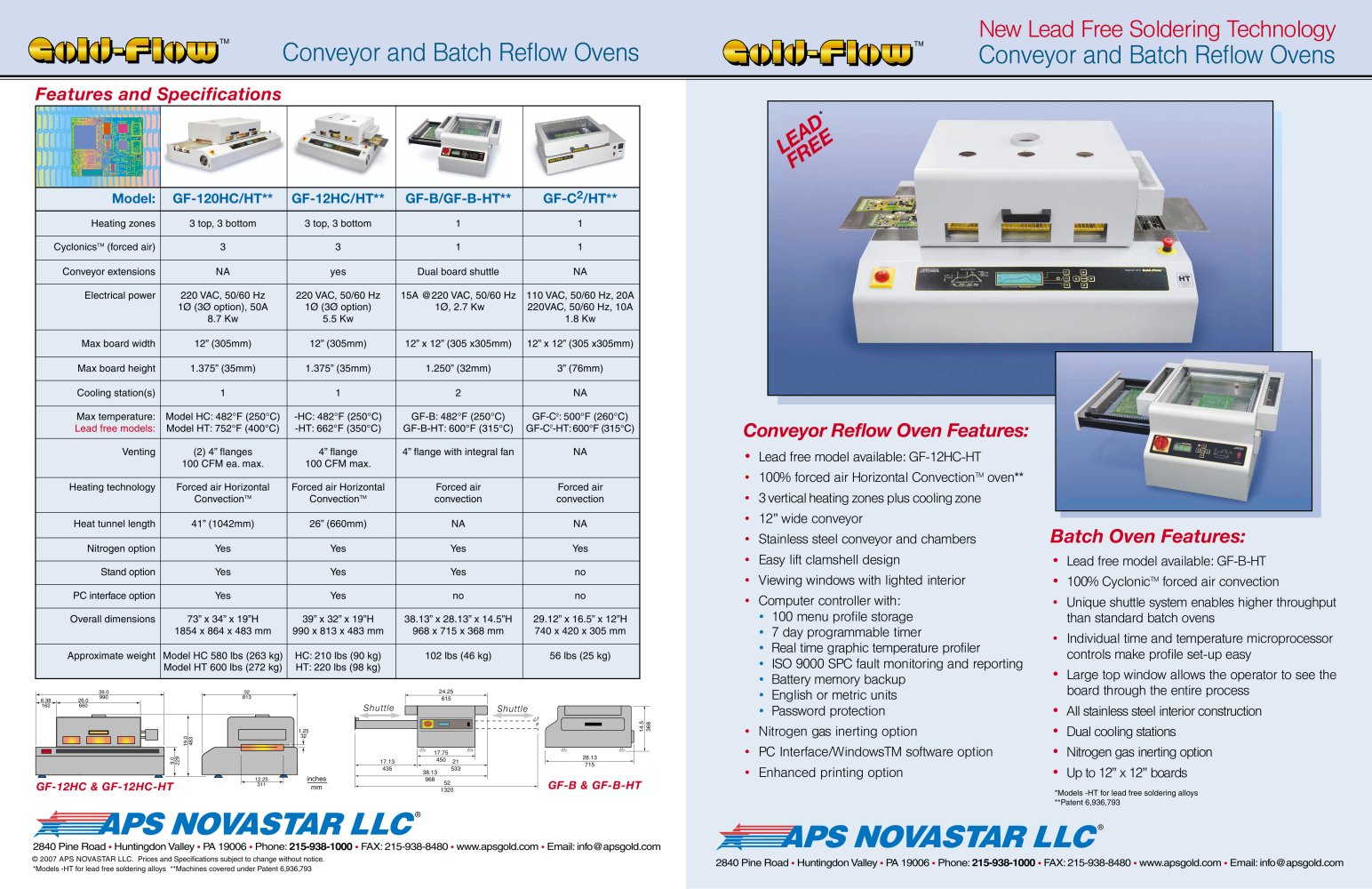

New Lead Free Soldering Technology Conveyor and Batch Reflow Ovens

Conveyor and Batch Reflow Ovens

Features and Specifications


I	"JHI	i		Mt⁹^
Model:		GF-120HC/HT**	GF-12HC/HT**	GF-B/GF-B-HT**	GF-C²/HT**
Heating zones		3 top, 3 bottom	3 top, 3 bottom	1	1
Cyclonics™ (forced air)		3	3	1	1
Conveyor extensions		NA	yes	Dual board shuttle	NA
Electrical power		220 VAC, 50/60 Hz 10 (30 option), 50A 8.7 Kw	220 VAC, 50/60 Hz 10 (30 option) 5.5 Kw	15A @220 VAC, 50/60 Hz 10, 2.7 Kw	110 VAC, 50/60 Hz, 20A 220VAC, 50/60 Hz, 10A 1.8 Kw
Max board width		12" (305mm)	12" (305mm)	12" x 12" (305 x305mm)	12" x 12" (305 x305mm)
Max board height		1.375" (35mm)	1.375" (35mm)	1.250" (32mm)	3" (76mm)
Cooling station(s)		1	1	2	NA
Max temperature: Lead free models:		Model HC: 482°F (250°C) Model HT: 752°F (400°C)	-HC: 482°F (250°C) -HT: 662°F (350°C)	GF-B: 482°F (250°C) GF-B-HT: 600°F (315°C)	GF-C²: 500°F (260°C) GF-C²-HT:600°F(315°C)
Venting		(2) 4" flanges 100 CFM ea. max.	4" flange 100 CFM max.	4" flange with integral fan	NA
Heating technology		Forced air Horizontal Convection™	Forced air Horizontal Convection^TM	Forced air convection	Forced air convection
Heat tunnel length		41" (1042mm)	26" (660mm)	NA	NA
Nitrogen option		Yes	Yes	Yes	Yes
Stand option		Yes	Yes	Yes	no
PC interface option		Yes	Yes	no	no
Overall dimensions		73" x 34" x 19"H 1854 x 864 x 483 mm	39" x 32" x 19"H 990 x 813 x 483 mm	38.13" x 28.13" x 14.5"H 968 x 715 x 368 mm	29.12" x 16.5" x 12"H 740 x 420 x 305 mm
Approximate weight		Model HC 580 lbs (263 kg) Model HT 600 lbs (272 kg)	HC:210 lbs (90 kg) HT: 220 lbs (98 kg)	102 lbs (46 kg)	56 lbs (25 kg)

75696�84

Conveyor Reflow Oven Features:

• Lead free model available: GF-12HC-HT

• 100% forced air Horizontal Convection™ oven**

• 3 vertical heating zones plus cooling zone

• 12" wide conveyor

• Stainless steel conveyor and chambers

• Easy lift clamshell design

• Viewing windows with lighted interior

• Computer controller with:

• 100 menu profile storage

• 7 day programmable timer

• Real time graphic temperature profiler

• ISO 9000 SPC fault monitoring and reporting

• Battery memory backup

• English or metric units

• Password protection

• Nitrogen gas inerting option

• PC Interface/WindowsTM software option

• Enhanced printing option

Batch Oven Features:

• Lead free model available: GF-B-HT

• 100°% Cyclonic™ forced air convection

• Unique shuttle system enables higher throughput than standard batch ovens

• Individual time and temperature microprocessor controls make profile set-up easy

• Large top window allows the operator to see the board through the entire process

• All stainless steel interior construction

• Dual cooling stations

• Nitrogen gas inerting option

• Up to 12" x 12" boards

*Models -HT for lead free soldering alloys **Patent 6,936,793

28.13

715

gf-b & gf-b-ht

gf-12hc & gf-12hc-ht

PS NOVASTAR LL

PS NOVASTAR LLC

2840 Pine Road • Huntingdon Valley • PA 19006 • Phone: 215-938-1000 • FAX: 215-938-8480 • www.apsgold.com • Email: info@apsgold.com
