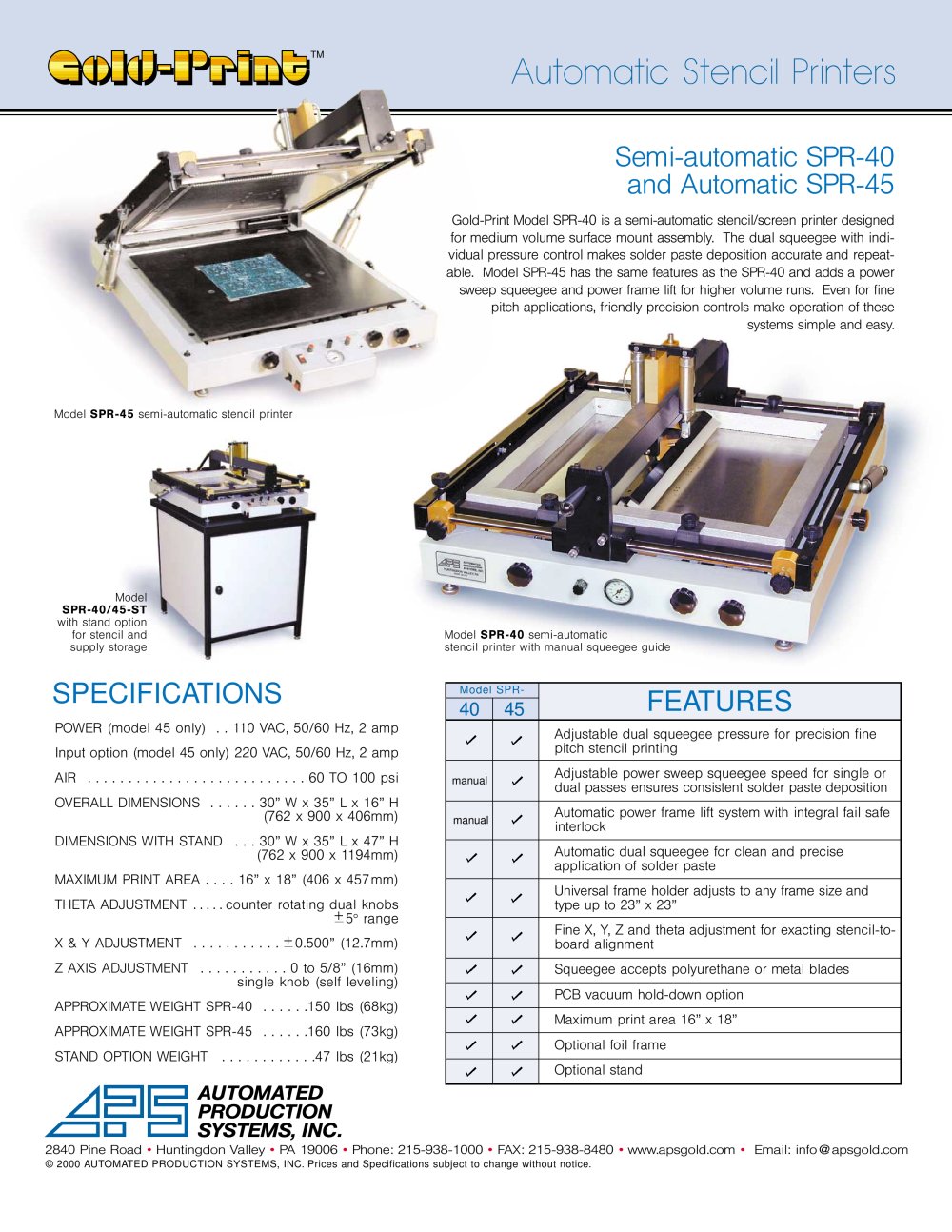

Auto Stencil Printers, SPR 40/45 - 55552 Automatic Stencil Printers

Semi-automatic SPR-40 and Automatic SPR-45

Gold-Print Model SPR-40 is a semi-automatic stencil/screen printer designedfor medium volume surface mount assembly. The dual squeegee with indi-vidual pressure control makes solder paste deposition accurate and repeat-able. ModelSPR-45 has the same features as the SPR-40 and adds a powersweep squeegee and power frame lift for higher volume runs. Even for finepitch applications, friendly precision controls make operation of these systems simple and easy.

Model SPR-45 semi-automatic stencil printercModel Model SPR-40/45-ST with stand optionfor stencil andsupply storage SPR-40 semi-automatic stencil printer with manual squeegee guide
Model SPR-

4045

FEATURESSPECIFICATIONS

POWER (model 45 only) . .110 VAC, 50/60 Hz, 2 ampInput option (model 45 only)220 VAC, 50/60 Hz, 2 ampcAIR . . . . . . . . . . . . . . . . . . . . . . . . . . .60 TO 100 psicOVERALL DIMENSIONS . . . . . .30” W x 35” L x 16” H . . . . . . . . . . . . . . . . . . . . . . . . .(762 x 900 x 406mm)DIMENSIONS WITH STAND . . .30” W x 35” L x 47” H . . . . . . . . . . . . . . . . . . . . . . . .(762 x 900 x 1194mm)MAXIMUM PRINT AREA . . . .16” x 18” (406 x 457mm)cTHETA ADJUSTMENT . . . . .counter rotating dual knobs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+ Adjustable dual squeegee pressure for precision finepitch stencil printingAdjustable power sweep squeegee speed for single ordual passes ensures consistent solder paste depositionAutomatic power frame lift system with integral fail safeinterlockAutomatic dual squeegee for clean and precise application of solder pasteUniversal frame holder adjusts to any frame size andtype up to 23” x 23”Fine X, Y, Z and theta adjustment for exacting stencil-to-board alignmentSqueegee accepts polyurethane or metal bladescPCB vacuum hold-down optioncMaximum print area 16” x 18”cOptional foil framecOptional stand

manualmanual

5°rangeX & Y ADJUSTMENT . . . . . . . . . . .+ 0.500” (12.7mm)Z AXIS ADJUSTMENT . . . . . . . . . . .0 to 5/8” (16mm) . . . . . . . . . . . . . . . . . . . . . .single knob (self leveling)APPROXIMATE WEIGHT SPR-40 . . . . . .150 lbs (68kg)cAPPROXIMATE WEIGHT SPR-45 . . . . . .160 lbs (73kg)cSTAND OPTION WEIGHT . . . . . . . . . . . .47 lbs (21kg)

2840 Pine Road •Huntingdon Valley •PA 19006 •Phone: 215-938-1000 •FAX: 215-938-8480 •www.apsgold.com •Email: info@apsgold.com

©2000 AUTOMATED PRODUCTION SYSTEMS, INC.Prices and Specifications subject to change without notice.
